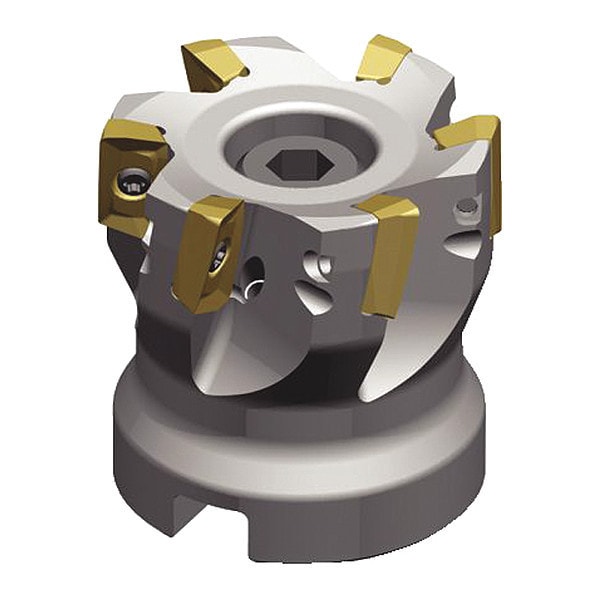

Indexable Face Mill, VSM17 Series, 3" Max Cut Dia, High Speed Steel, 0.6260 in Depth of Cut
| Item | Indexable Face Mill |
|---|---|
| Series | VSM17 |
| Cutting Dia. | 3 in |
| Overall Length | 1-3/4 in |
| Number of Inserts Required | 6 |
| Depth of Cut | 0.626 in |
| Material - Machining | High Speed Steel |
| Shank Shape | Socket Head Cap Screw |
| Insert Size | 1704 |
| Shank Dia. | 1 in |
| Cutting Direction | Right Hand |
| ANSI Code | VSM17D300Z06S100XD17 |
| Cutting Application | Face Milling, Helical Milling, Pocketing, Ramping:Blank, Side/Shoulder Milling: Square End, Slotting: Square End |
| Insert Holding Type | Screw |
| Compatible Hardware | Insert Screw M4x0.7 x 8.4 T15, Torx Wrench TX15 |
| ISO Number | VSM17D300Z06S100XD17 |
| Coolant Fed | Coolant Through |
| Toolholder Style | XDPT17 |
| Side Cutting Edge Angle | 0 deg |
| Max. Speed | 20,100 rpm |
| Insert Style | XD.T PE R |
| Rake | 13 Degrees Axial, -5.000 Degrees Radial |
| Features | Effective Internal Coolant Feature, Increased Ramping Capability, Precisely Reaching the Cutting Edge, Superior Wall and Surface Finish |
| Number of Inserts | 6 |
| Min. Cutting Dia. | 3 in |
| Max. Cutting Dia. | 3 in |
| Arbor Dia. | 1 in |
| Number of Flutes | 6 |
| Package Quantity | 1 |
