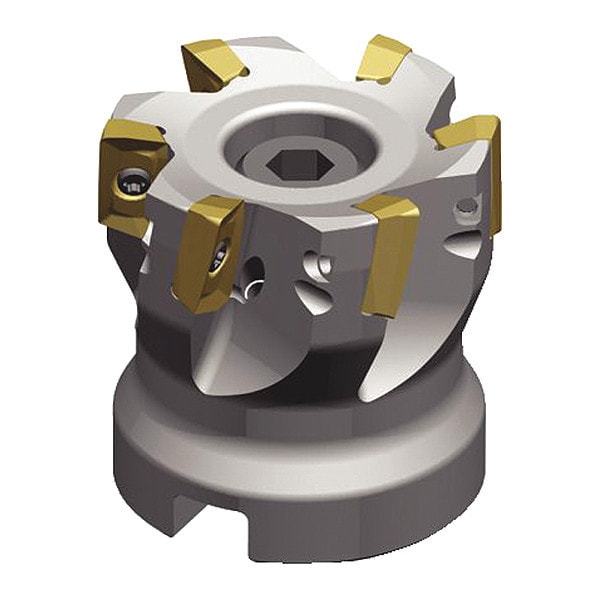

Indexable Face Mill, VSM17 Series, High Speed Steel, 15.70mm Depth of Cut
| Item | Indexable Face Mill |
|---|---|
| Series | VSM17 |
| Overall Length | 2 in |
| Depth of Cut | 15.7 mm |
| Material - Machining | High Speed Steel |
| Insert Size | 1704 |
| Cutting Direction | Right Hand |
| Type | Face Mill |
| Number of Flutes | 9 |
| Rake | -3.8 Degrees Radial, 15.5 Degrees Axial |
| Max. Speed | 15,100 rpm |
| Compatible Hardware | Coolant Screw Assembly, Insert Screw M4x0.7 x 8.4 T15, Torx Wrench TX15 |
| Arbor Dia. | 1-1/2 in |
| ANSI Code | VSM17D500Z09S150XD17 |
| Insert Holding Type | Screw |
| Number of Inserts | 9 |
| ISO Number | VSM17D500Z09S150XD17 |
| Hub Outside Dia. | 85.7 mm |
| Coolant Fed | Coolant Through |
| Side Cutting Edge Angle | 0 deg |
| Features | Effective Internal Coolant Feature, Increased Ramping Capability, Precisely Reaching the Cutting Edge, Superior Wall and Surface Finish Capabilities, True 0 Degrees Capability |
| Insert Style | XD.T PE R |
| Cutting Application | Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Square End, Slotting: Square End |
| Material | High Speed Steel |
| Package Quantity | 1 |
