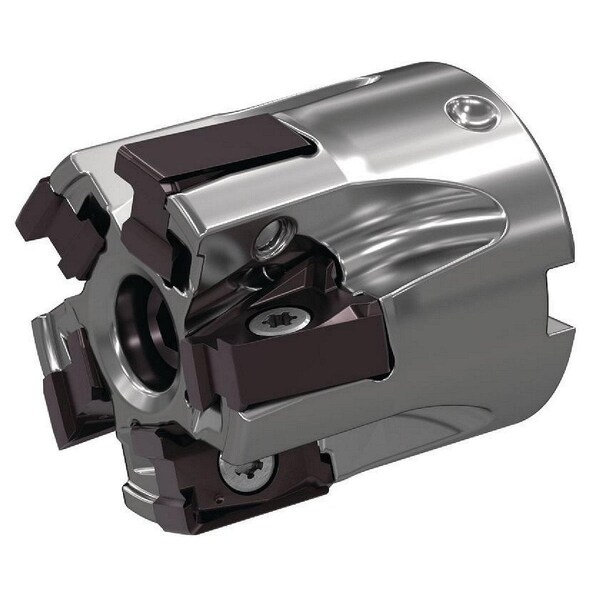

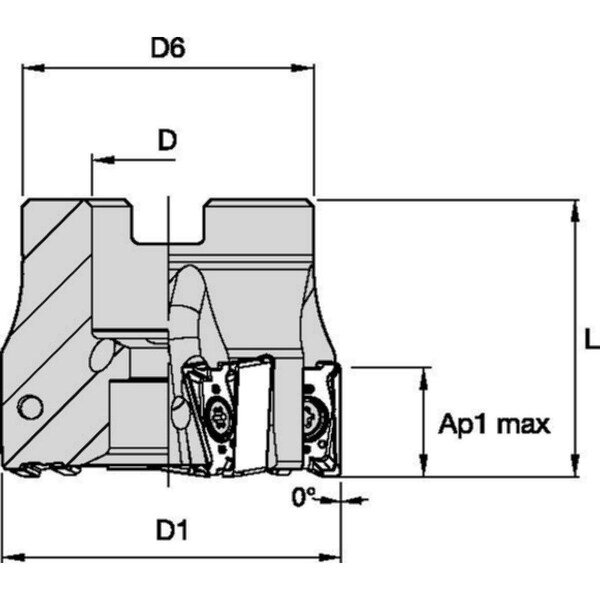

Indexable Face Mill, VSM490-15 Series, 1.5000" Max Cut Dia, High Speed Steel, 0.5910 in Depth of Cut
| Item | Indexable Face Mill |
|---|---|
| Series | VSM490-15 |
| Cutting Dia. | 1-1/2 in |
| Overall Length | 1.575 in |
| Number of Inserts Required | 5 |
| Depth of Cut | 0.591 in |
| Material - Machining | High Speed Steel |
| Insert Size | 15T608 |
| Shank Shape | Socket Head Cap Screw |
| Shank Dia. | 1/2 in |
| Cutting Direction | Right Hand |
| Max. Speed | 19,500 rpm |
| ISO Number | VSM490D150Z05S050XN15 |
| Features | Effective Internal Coolant Feature, in Stepless in Solution, Precisely Reaching the Cutting Edge, Strong Concept to Run up to 15mm (0.590 in) Depth of Cut, Superior Wall and Surface Finish Capabilities, True 0 Degrees to Run Precise Applications in Multiple Axial Passes |
| ANSI Code | VSM490D150Z05S050XN15 |
| Compatible Hardware | Anti-Seize Lubricant, Insert Screw M4x0.7 x 10 Ip15, Screw Lock Cutter Head, Torx Plus Drive Wrench DT15IP |
| Insert Shape | 90 Degrees Rectangle Mill 4 |
| Rake | -8 Degrees Axial, -15.4 Degrees Radial |
| Cutting Application | Face Milling, Pocketing, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End |
| Coolant Fed | Coolant Through |
| Max. Cutting Dia. | 1-1/2 in |
| Insert Holding Type | Screw |
| Number of Inserts | 5 |
| Insert Style | XNGU SRMM |
| Arbor Dia. | 1/2 in |
| Number of Flutes | 5 |
| Hub Outside Dia. | 1.42 in |
| Package Quantity | 1 |
