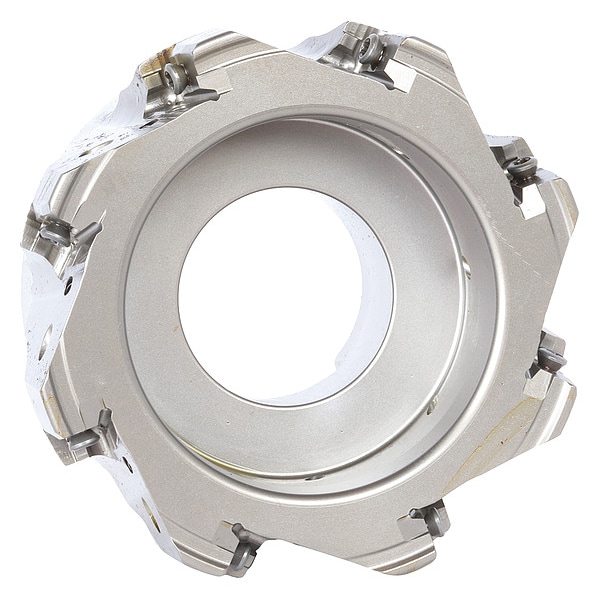

Indexable Face Mill, VSM490-15 Series, 4" Max Cut Dia, High Speed Steel, 0.5910 in Depth of Cut
| Item | Indexable Face Mill |
|---|---|
| Series | VSM490-15 |
| Cutting Dia. | 4 in |
| Overall Length | 2 in |
| Number of Inserts Required | 8 |
| Depth of Cut | 0.591 in |
| Material - Machining | High Speed Steel |
| Shank Shape | Socket Head Cap Screw |
| Cutting Direction | Right Hand |
| Insert Size | 15T608 |
| Shank Dia. | 1-1/2 in |
| Max. Cutting Dia. | 4 in |
| Number of Inserts | 8 |
| Arbor Dia. | 1-1/2 in |
| Insert Style | XNGU SRMM |
| Hub Outside Dia. | 3.38 in |
| Compatible Hardware | Anti-Seize Lubricant, Coolant Screw Assembly, Insert Screw M4x0.7 x 10 Ip15, KLS-20 Shell Mill Lock Screw, Torx Plus Drive Wrench DT15IP |
| ISO Number | VSM490D400Z08S150XN15 |
| Features | Effective Internal Coolant Feature, in Stepless in Solution, Precisely Reaching the Cutting Edge, Strong Concept to Run up to 15mm (0.590 in) Depth of Cut, Superior Wall and Surface Finish Capabilities, True 0 Degrees to Run Precise Applications in Multiple Axial Passes |
| Insert Holding Type | Screw |
| Rake | -8 Degrees Axial, -13.632 Degrees Radial |
| Coolant Fed | Coolant Through |
| Insert Shape | 90 Degrees Rectangle Mill 4 |
| Max. Speed | 10,800 rpm |
| Cutting Application | Face Milling, Pocketing, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End |
| ANSI Code | VSM490D400Z08S150XN15 |
| Number of Flutes | 8 |
| Package Quantity | 1 |
