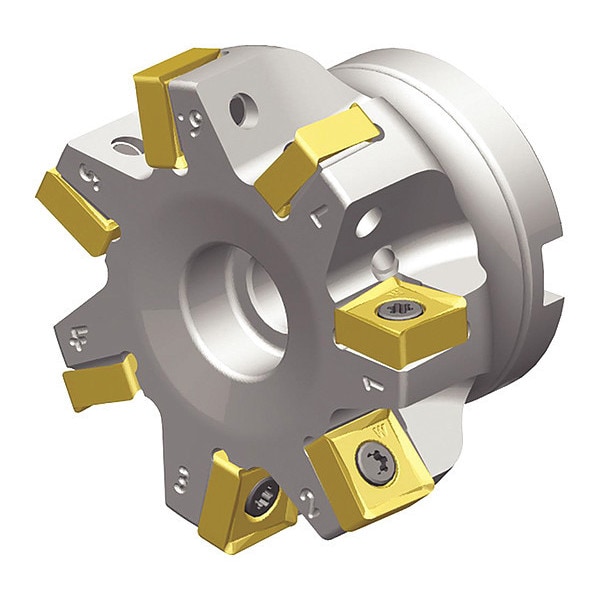

Indexable Face Mill, VSM890 Series, High Speed Steel, 9.80mm Depth of Cut
| Item | Indexable Face Mill |
|---|---|
| Series | VSM890 |
| Overall Length | 40 mm |
| Depth of Cut | 9.8 mm |
| Material - Machining | High Speed Steel |
| Cutting Direction | Right Hand |
| Insert Size | 120408 |
| Number of Flutes | 5 |
| Type | Face Mill |
| Insert Shape | 90 Degrees Square |
| Rake | 3 Degrees Axial, -12.9 Degrees Radial |
| Arbor Dia. | 3/4 in |
| Insert Holding Type | Screw |
| ISO Number | VSM890D250Z05S075SN12 |
| Features | Less Bur Creation on the Workpiece, Optimized Chip Gash Design for Proper Chip Evacuation, True 0 Degrees Wall and Stepping Down Capability, User-Friendly Pocket Numbering System |
| Max. Speed | 20,700 rpm |
| Insert Style | SNHX PNERMM |
| Number of Inserts | 5 |
| Coolant Fed | Coolant Through |
| Hub Outside Dia. | 1-3/4 in |
| Compatible Hardware | Anti-Seize Lubricant, Insert Screw M4x0.7 x 10 IP15, Spare Part S446, Torx Plus Drive Wrench DT15IP |
| ANSI Code | VSM890D250Z05S075SN12 |
| Cutting Application | Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End |
| Side Cutting Edge Angle | 0 deg |
| Material | High Speed Steel |
| Package Quantity | 1 |
