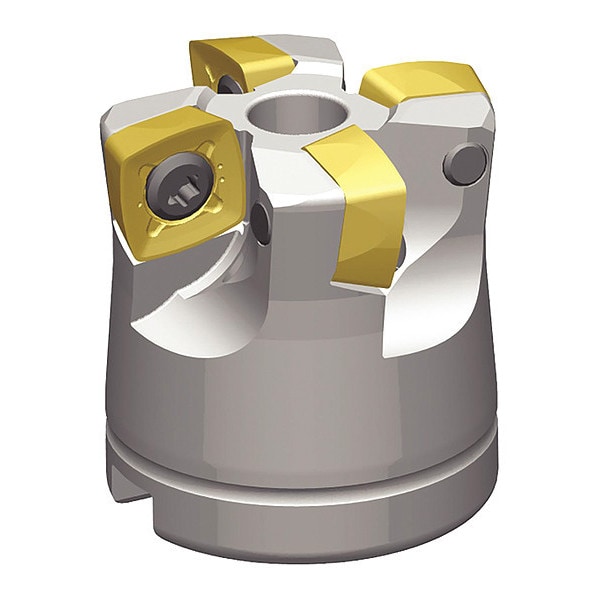

Indexable Face Mill, VXF Series, High Speed Steel, 0.0984 in Depth of Cut
| Item | Indexable Face Mill |
|---|---|
| Series | VXF |
| Overall Length | 1.5748 in |
| Depth of Cut | 0.0984 in |
| Material - Machining | High Speed Steel |
| Cutting Direction | Right Hand |
| Insert Size | 120512 |
| Type | Face Mill |
| Insert Shape | 90 Degrees Square |
| Number of Flutes | 5 |
| Rake | -5 Degrees Radial, 5 Degrees Axial |
| Cutting Application | Counter Boring, Face Milling, Helical Milling, Inclined Square End Mill, Plunge Milling, Pocketing, Ramping: Blank, Spiral Circular |
| Insert Holding Type | Screw |
| Arbor Dia. | 3/4 in |
| Max. Speed | 22,500 rpm |
| Coolant Fed | Coolant Through |
| Max. Cutting Dia. | 2 in |
| Side Cutting Edge Angle | 16.5 deg |
| Compatible Hardware | Anti-Seize Lubricant, Insert Screw M4.5x0.75 x 11 T20, Torx Driver |
| ANSI Code | VXF200Z05S075XD12 |
| Number of Inserts | 5 |
| Insert Style | XDPT ERMM |
| Features | 16.5 Degrees Lead Angle Redistributes Cutting Forces in the Spindle Z-Axis Direction, Durable Cutting Edges Qualified to Machine a Wide Range of Materials, Greatly Reduces Tool Deflection and Vibrations for Improved Tool Life, Suitable for Long Tool Reach, Unique Integrated Radial Wiping Facet to Achieve a Nice Wall Finish at Pocket and Helical Interpolation Milling, WS40PM Best In Class Milling Grade for Machining Stainless Steel and HTA |
| ISO Number | VXF200Z05S075XD12 |
| Hub Outside Dia. | 1.811 in |
| Material | High Speed Steel |
| Package Quantity | 1 |
