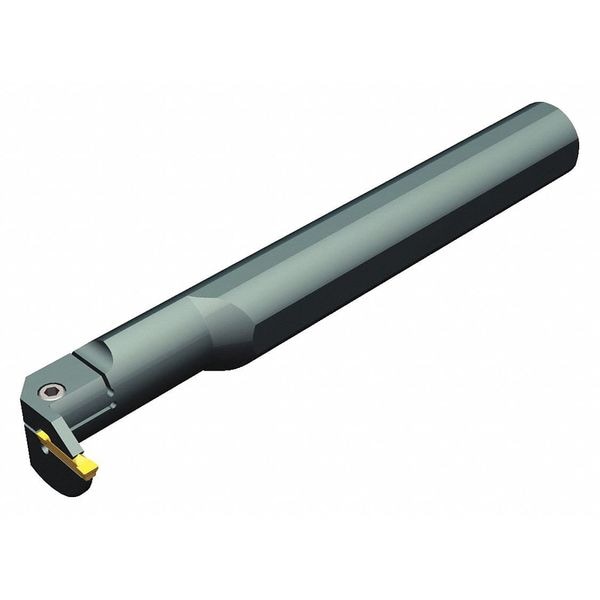

Indexable Grooving and Parting Toolholder, A16RWMTER0416N, 8 in L, High Speed Steel
| Item | Indexable Grooving and Parting Toolholder |
|---|---|
| Overall Length | 8 in |
| Shank Material | High Speed Steel |
| Insert Shape | Grooving |
| ANSI Code | A16RWMTER0416N |
| Cutting Direction | Right Hand |
| Lead Angle | 0 Degrees |
| Type | Clamping |
| Shank Dia. | 25.4 in |
| Rake | -3 Degrees Radial;0 Degrees Axial |
| ISO Number | A16RWMTER0416N |
| Toolholder Style | WMT |
| Coolant Fed | Coolant Through |
| Cutting Location | Internal |
| Insert Holding Type | Clamp |
| Depth of Cut | 16 mm |
| Max. Bore Depth | 50 mm |
| Max. Grooving Width | 3.96 mm |
| Series | WMT |
| Cutting Application | Inside Diameter Grooving |
| Measurement System | Fractional Inch |
| Package Quantity | 1 |
