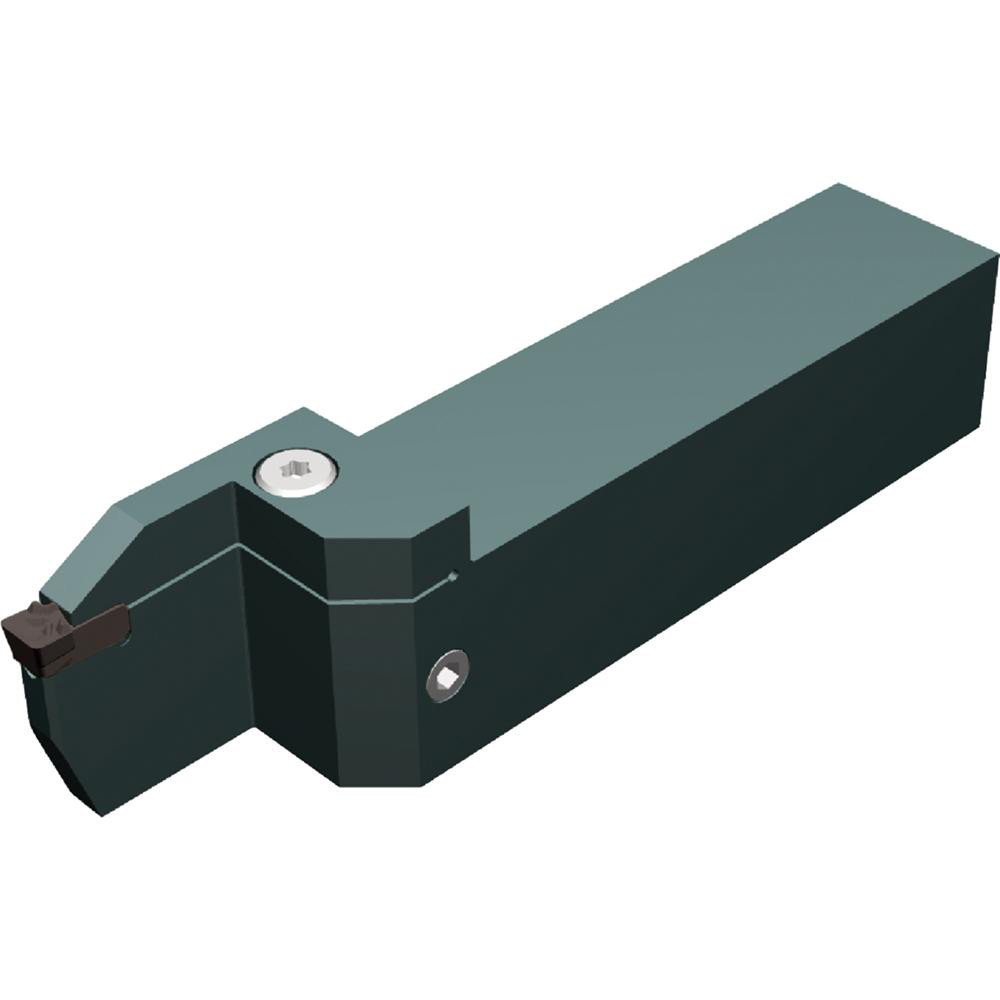

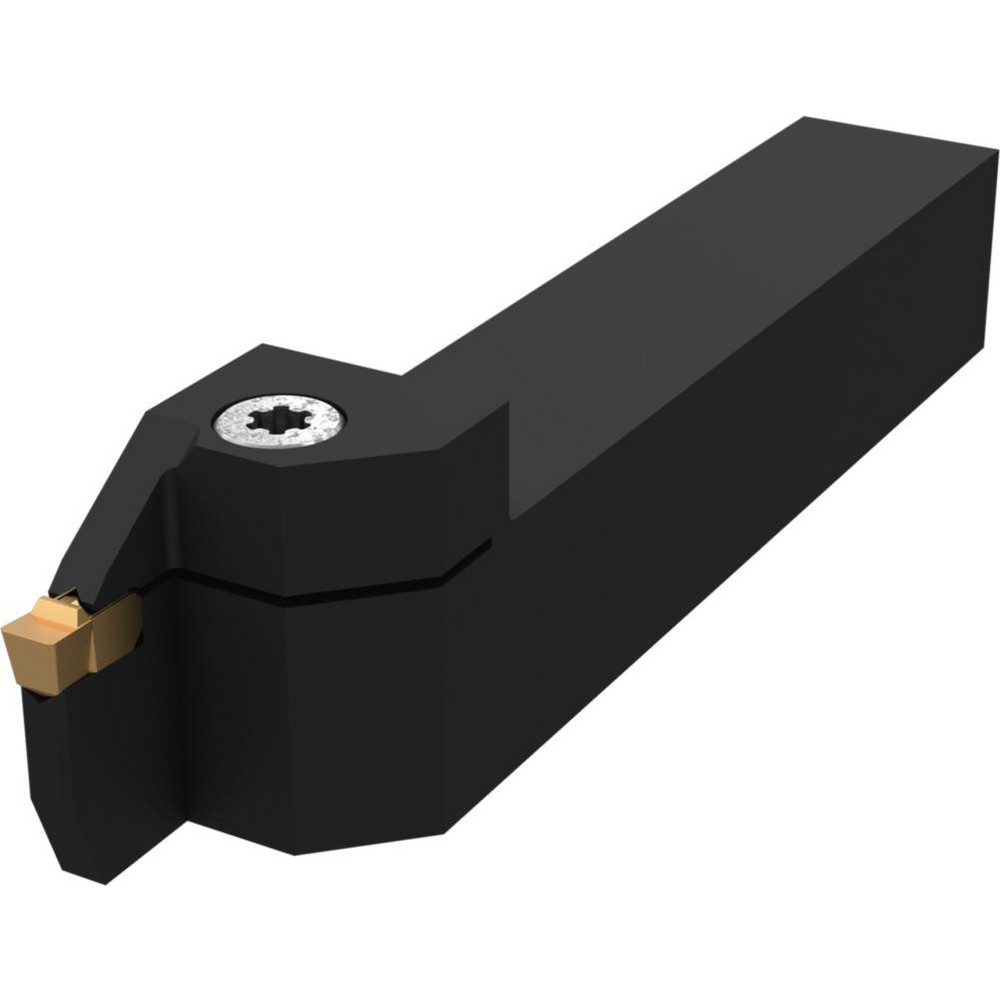

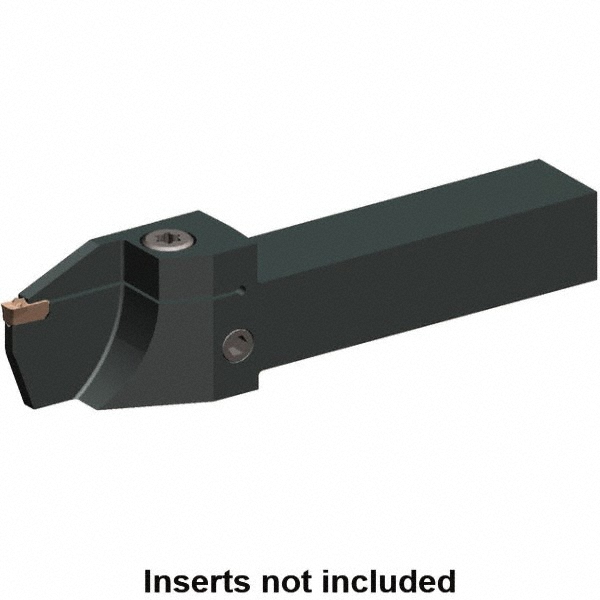

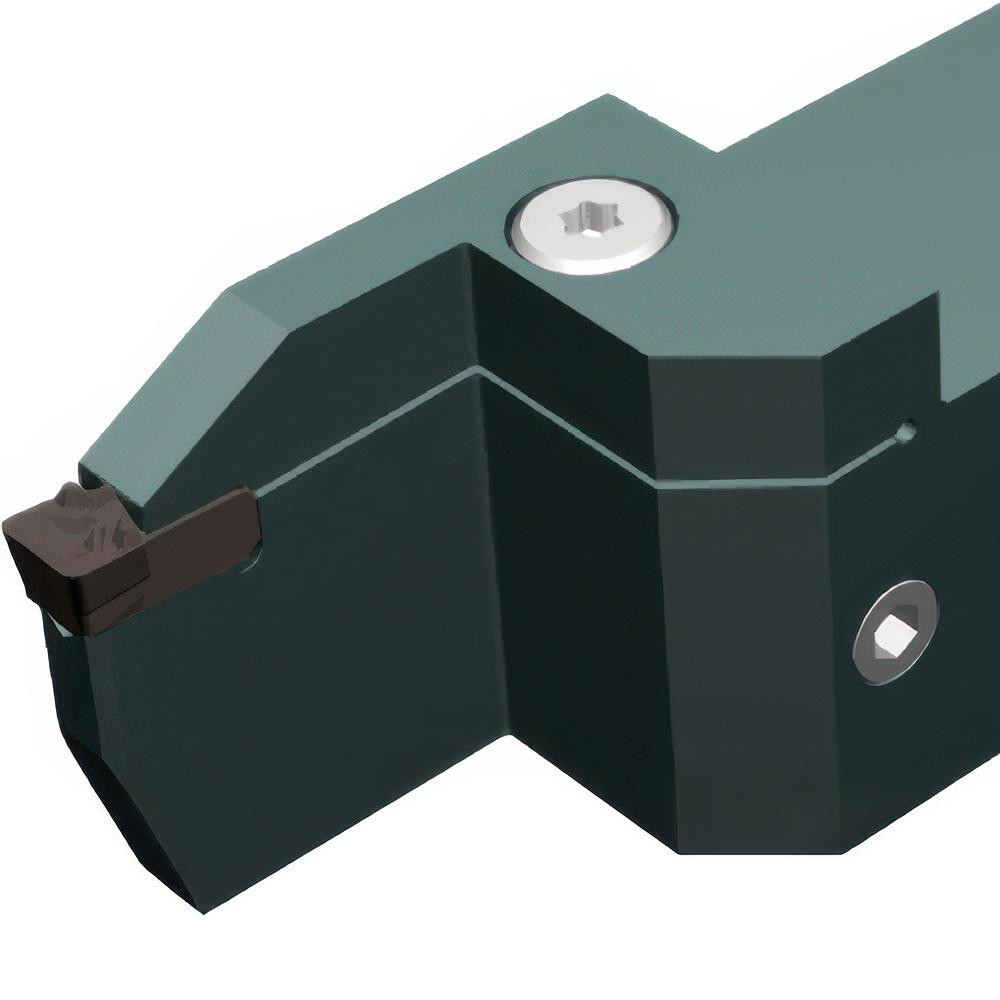

Uses WG0400M04P04 Inserts, 1 x 1" Shank, Through Coolant, Series WGC
| Internal or External | External |
|---|---|
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.0240 |
| Maximum Groove Width (Decimal Inch) | 0.1580 |
| Minimum Groove Width (Decimal Inch) | 0.1575 |
| Toolholder Style | WGCSM |
| Tool Material | Steel |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | 0400 |
| Insert Compatibility | WG0400M04P04 |
| Shank Height (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Length (Decimal Inch) | 4.1500 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Inch) | 1 |
| Series | WGC |
| Overall Length (Decimal Inch) | 6.0000 |
| Cutting Tool Application | Grooving; Facing; Cut-Off; Turning |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0030 |
| Head Height (mm) | 35.000 |
| Head Length (Decimal Inch) | 1.8504 |
| Primary Workpiece Material | Universal |
| Insert Seat Size | 4.0 |
| Coolant Through | Yes |
| UNSPSC Code | 23153308 |
| Country of Origin | India |
| MSC Number | MSC# 10270379 |
