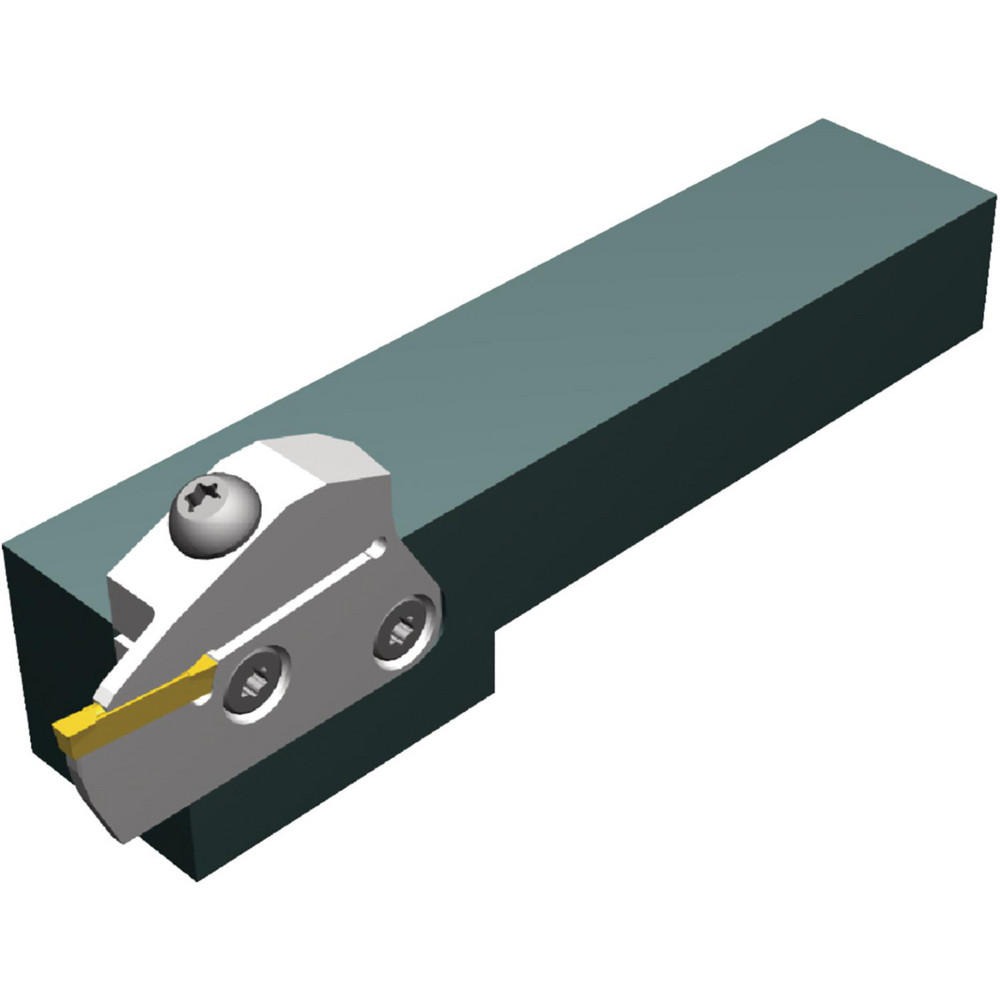

1 x 1" Shank, Series WMT
| Internal or External | External |
|---|---|
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.8660 |
| Maximum Groove Width (Decimal Inch) | 0.2360 |
| Minimum Groove Width (Decimal Inch) | 0.0551 |
| Toolholder Style | WGMSR |
| Tool Material | Steel |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | 0600; 0400; 0500; 0200; 0300; 0100; 094 |
| Shank Height (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Length (Decimal Inch) | 3.8600 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Inch) | 1 |
| Series | WMT |
| Overall Length (Decimal Inch) | 5.0500 |
| Cutting Tool Application | Grooving; Cut-Off; Turning |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5590 |
| Head Height (mm) | 31.560 |
| Head Length (Decimal Inch) | 1.1898 |
| Head Length (mm) | 30.22 |
| Primary Workpiece Material | Universal |
| Insert Seat Size | 100.0 |
| Coolant Through | No |
| UNSPSC Code | 23153308 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 17359902 |
