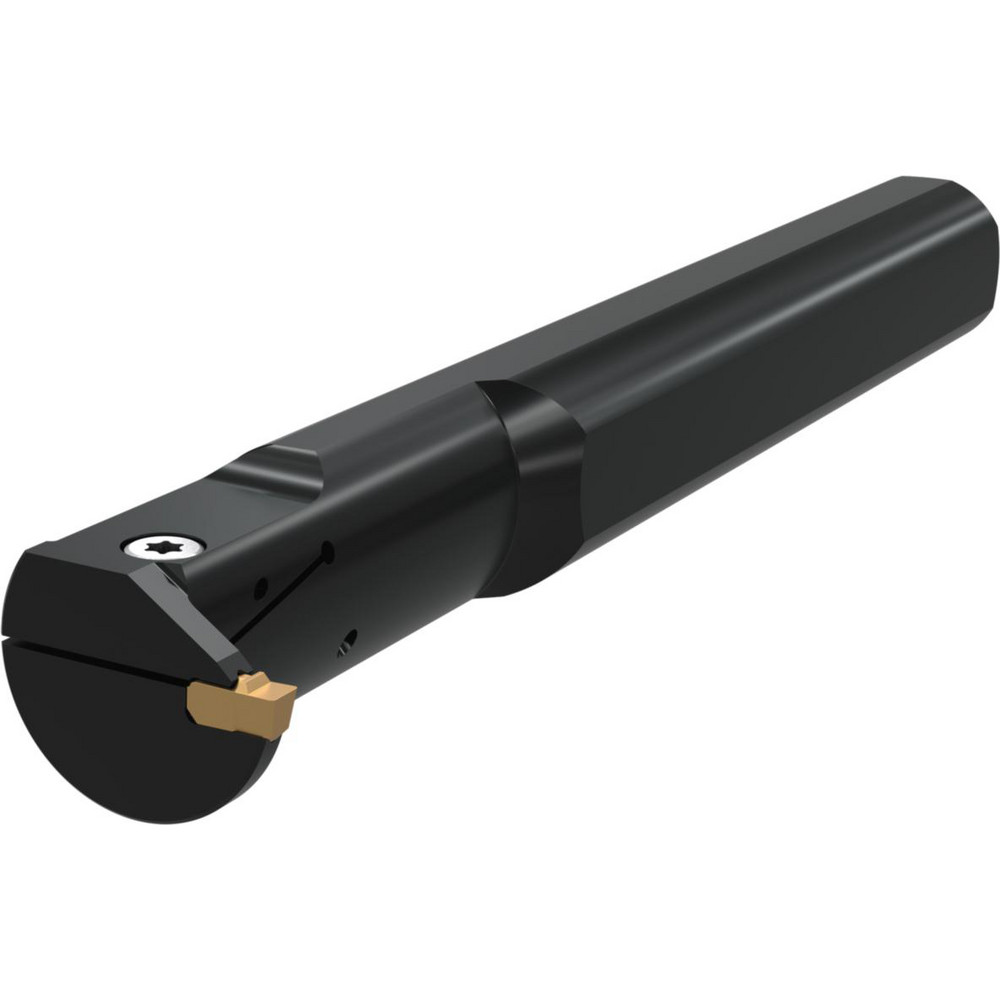

0.1969" Max Depth of Cut, 1/2 Dia, Through Coolant, Uses 2 Inserts
| Toolholder Type | Internal Grooving |
|---|---|
| Insert Seat Size | 2 |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Minimum Groove Width (Decimal Inch) | 0.0787 |
| Toolholder Style | WGCEMR |
| Maximum Groove Width (Decimal Inch) | 0.0787 |
| Insert Holding Method | Clamp |
| Insert Compatibility | WG0200M02P02 |
| Compatible Insert Size Code | 2 |
| Shank Height (Decimal Inch) | 4.2849 |
| Series | WGC |
| Shank Length (Decimal Inch) | 4.2849 |
| Overall Length (Decimal Inch) | 5 |
| Multi-use Tool | No |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5856 |
| Center to Cutting Edge (Decimal Inch) | 0.3356 |
| Minimum Hole Diameter (Decimal Inch) | 0.6250 |
| Head Length (Decimal Inch) | 1 |
| Primary Workpiece Material | Universal |
| UNSPSC Code | 23153308 |
| Vibration Dampening | No |
| Coolant Hole Thread Size | 1/16-27 NPT |
| Coolant Hole Diameter (Decimal Inch) | 0.1560 |
| Maximum Bore Depth (Decimal Inch) | 1.0000 |
| Mount Type | Shank |
| Manufacturers Catalog Number | A08KWGCEMR0205I |
| Toolholder Material | Steel |
| Insert Hand | Neutral |
| Complete Insert Compatibility | WG0200M02P02 |
| Coolant Through | Yes |
| Country of Origin | India |
| MSC Number | MSC# 97973804 |
