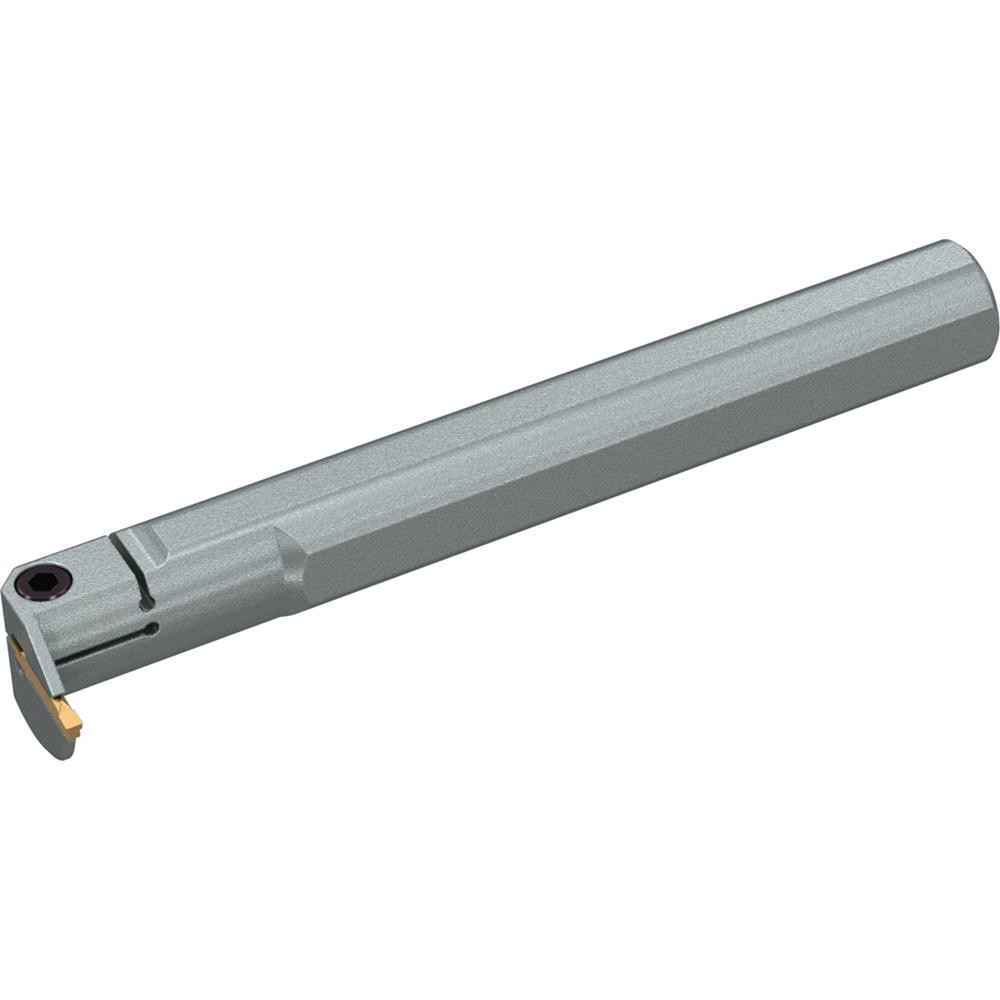

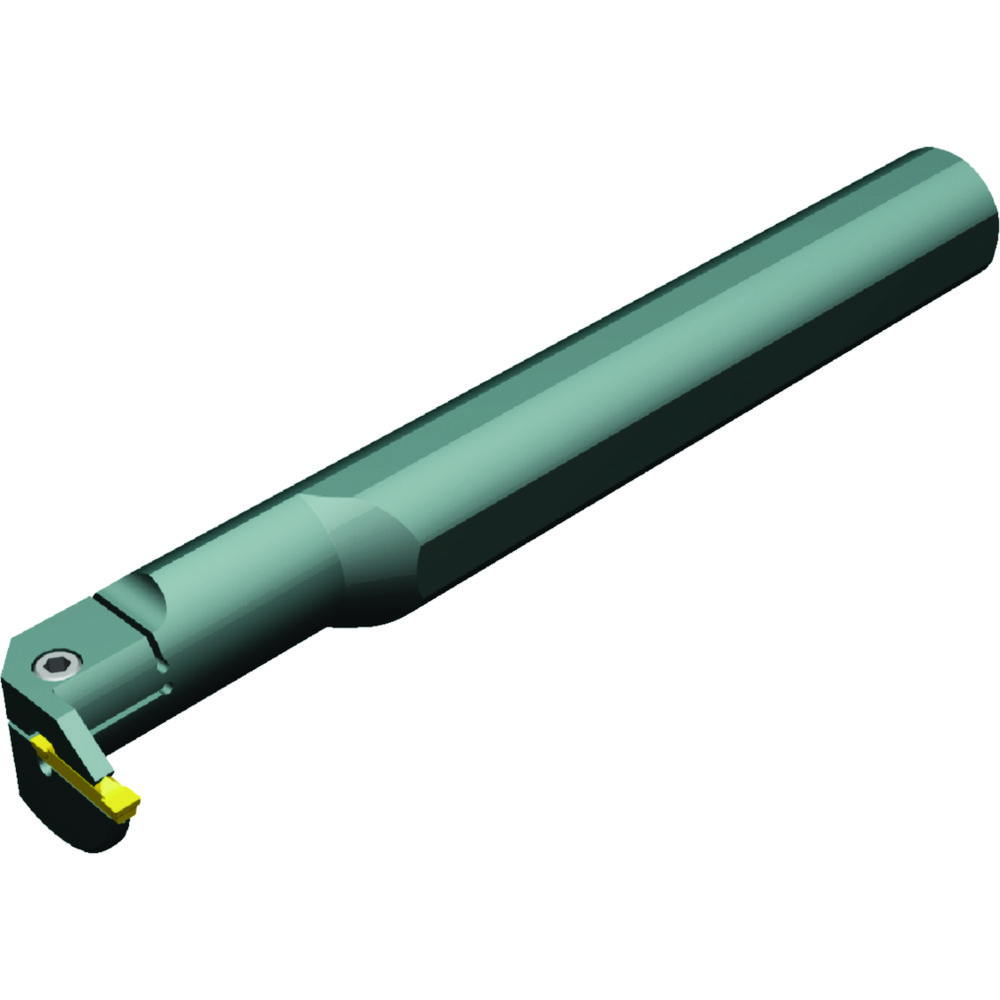

0.866" Max Depth of Cut, 1-1/2 Dia, Through Coolant, Uses 5 Inserts
| Toolholder Type | Internal Grooving |
|---|---|
| Insert Seat Size | 5 |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.8660 |
| Minimum Groove Width (Decimal Inch) | 0.1880 |
| Toolholder Style | WMTER |
| Maximum Groove Width (Decimal Inch) | 0.1880 |
| Insert Holding Method | Clamp |
| Insert Compatibility | WMTS188I5P03PT |
| Compatible Insert Size Code | 5 |
| Series | WMT |
| Shank Length (Decimal Inch) | 8.8500 |
| Overall Length (Decimal Inch) | 12 |
| Multi-use Tool | No |
| Back of Bar to Cutting Edge (Decimal Inch) | 2.0100 |
| Center to Cutting Edge (Decimal Inch) | 1.2600 |
| Minimum Hole Diameter (Decimal Inch) | 2.1300 |
| Head Length (Decimal Inch) | 3.15 |
| Primary Workpiece Material | Universal |
| UNSPSC Code | 23153308 |
| Vibration Dampening | No |
| Coolant Hole Thread Size | 1/4-18 NPT |
| Coolant Hole Diameter (Decimal Inch) | 0.2500 |
| Maximum Bore Depth (Decimal Inch) | 3.1500 |
| Mount Type | Shank |
| Manufacturers Catalog Number | A24TWMTER0522N |
| Toolholder Material | Steel |
| Insert Hand | Neutral |
| Complete Insert Compatibility | WMTS188I5P03PT |
| Coolant Through | Yes |
| Country of Origin | India |
| undefined | undefined |
| MSC Number | MSC# 15075559 |
