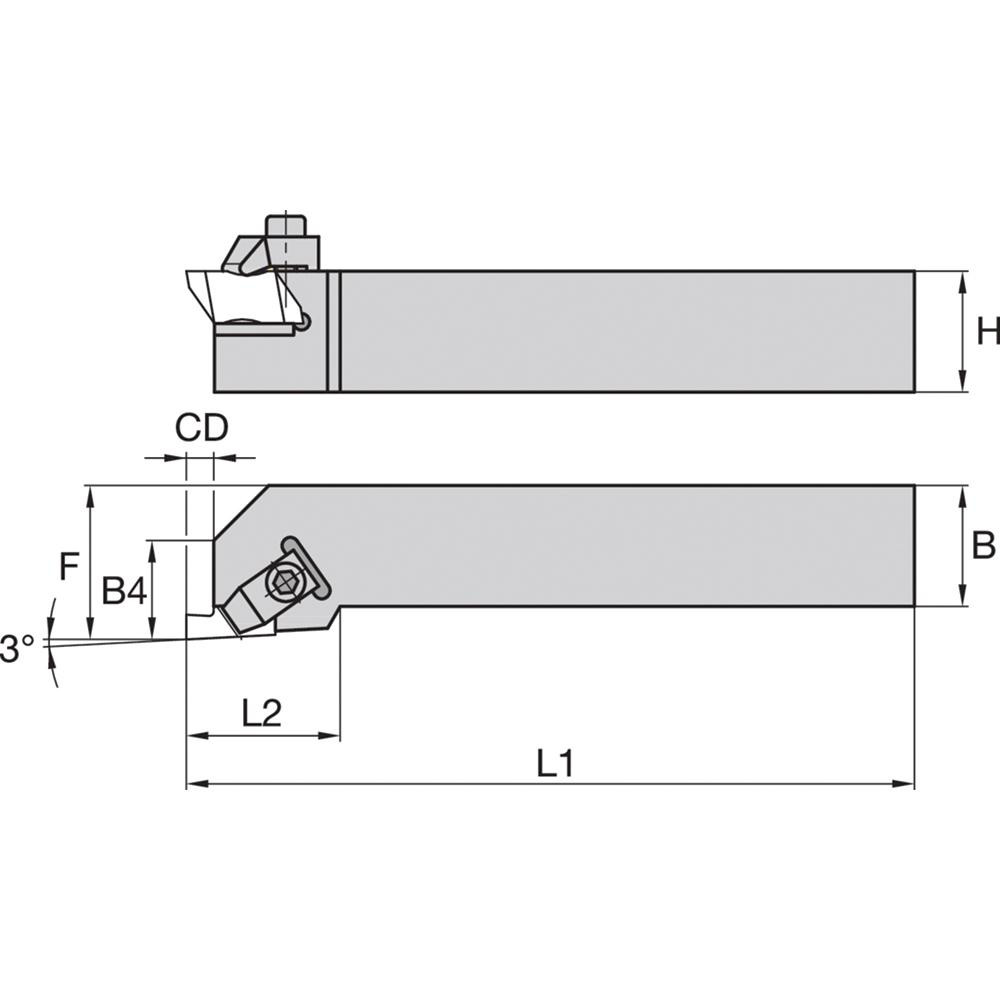

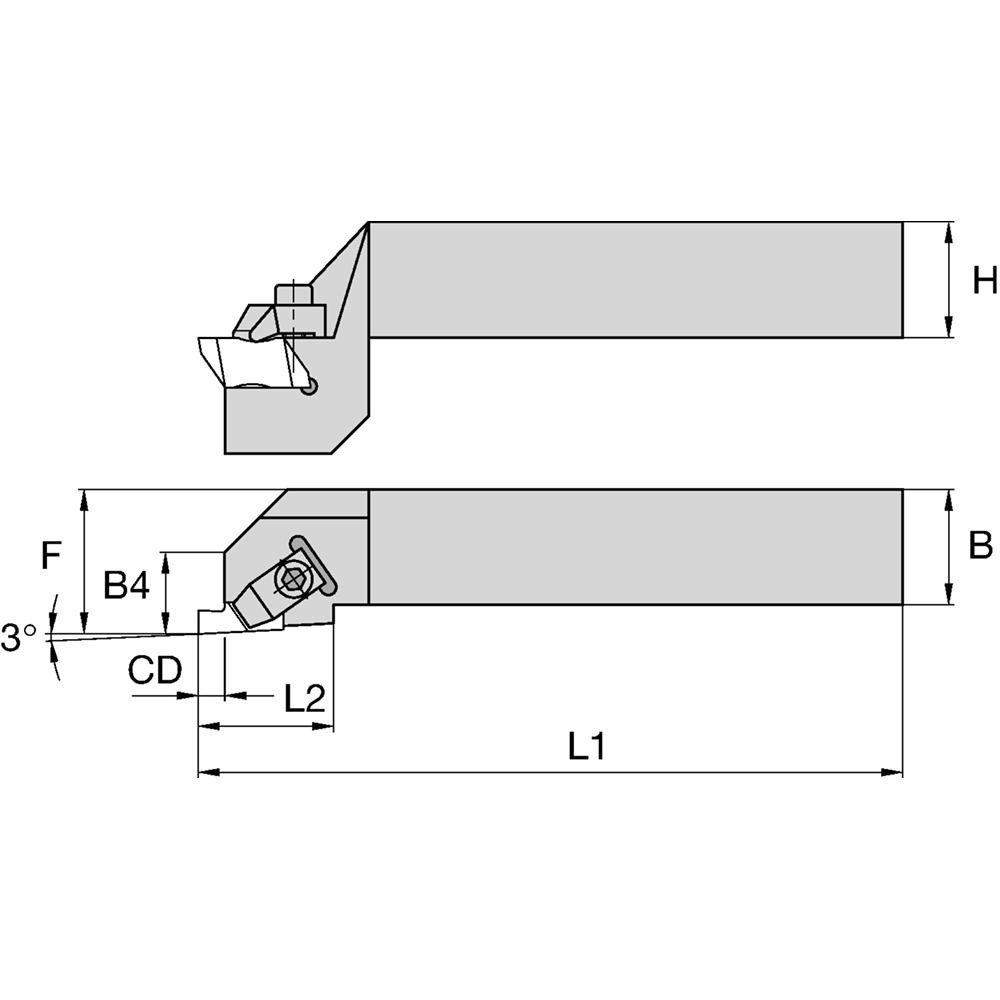

0.2098" Max Depth of Cut, 3-3/4 x 1" Shank, Uses 3 Inserts
| Toolholder Type | External Grooving |
|---|---|
| Insert Seat Size | 3 |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2098 |
| Toolholder Style | NS |
| Maximum Groove Width (Decimal Inch) | 0.1250 |
| Insert Holding Method | Clamp |
| Insert Compatibility | N.3L |
| Compatible Insert Size Code | 3 |
| Shank Height (Decimal Inch) | 3.7500 |
| Series | NS |
| Shank Length (Decimal Inch) | 3.7500 |
| Overall Length (Decimal Inch) | 5 |
| Multi-use Tool | Yes |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2500 |
| Head Height (Decimal Inch) | 1.0000 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M; N |
| UNSPSC Code | 23153308 |
| Mount Type | Shank |
| Manufacturers Catalog Number | NSL163C |
| Toolholder Material | Steel |
| Insert Hand | Left Hand |
| Complete Insert Compatibility | N.3L |
| Coolant Through | No |
| Country of Origin | Brazil |
| MSC Number | MSC# 98005796 |
