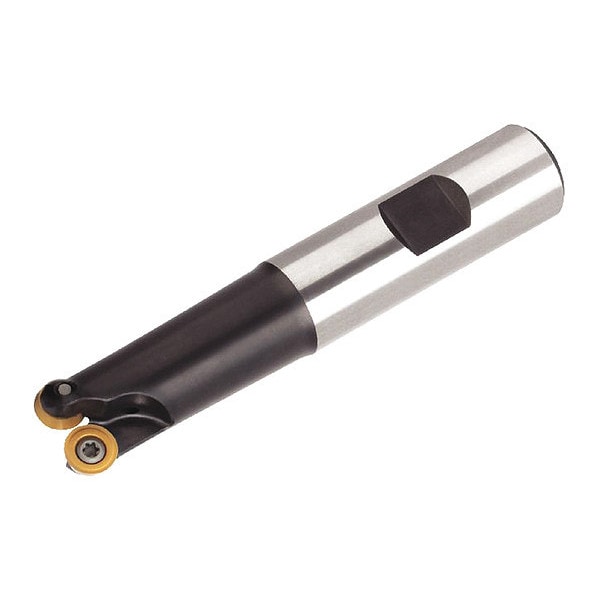

Indexable Profiling End Mill, M100 Series, High Speed Steel, 0.1575 in Depth of Cut
| Item | Indexable Profiling End Mill |
|---|---|
| Series | M100 |
| Overall Length | 4-1/2 in |
| Depth of Cut | 0.1575 in |
| Material - Machining | High Speed Steel |
| Shank Dia. | 3/4 in |
| Insert Size | RD..0802MOT |
| Cutting Direction | Right Hand |
| Insert Shape | Round |
| ANSI Code | M100D075Z02W075RD08L453 |
| Number of Inserts | 2 |
| Shank Type - Machining | Weldon Flat |
| Max. Speed | 26,000 rpm |
| Insert Holding Type | Screw |
| Compatible Hardware | Insert Screw M3x0.5 x 5.5 T8, Torx Driver |
| Cutting Application | 3D Profiling, Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Ball Nose, Slotting: Square End |
| Side Cutting Edge Angle | 15 deg |
| Insert Inscribed Circle | 8 mm |
| Insert Style | RD |
| Features | Anti-Rotation Feature for Top Security |
| Head Dia. | 3/4 in |
| Coolant Fed | Coolant Through |
| Max. Cutting Dia. | 3/4 in |
| ISO Number | M100D075Z02W075RD08L453 |
| Head Projection Length | 2-1/2 in |
| Number of Coolant Holes | 1 |
| Shank Length | 2.03 in |
| Package Quantity | 1 |
