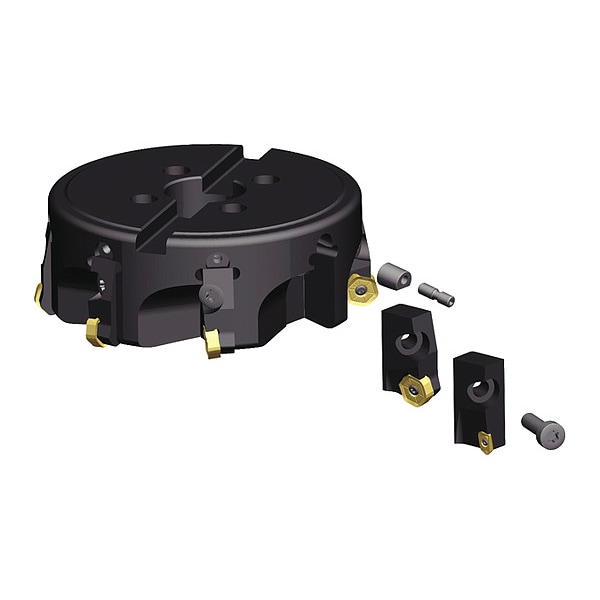

Indexable Profiling End Mill, M4000 Series, High Speed Steel, 15.90mm Depth of Cut
| Item | Indexable Profiling End Mill |
|---|---|
| Series | M4000 |
| Overall Length | 47.09 mm |
| Depth of Cut | 15.9 mm |
| Material - Machining | High Speed Steel |
| Insert Size | 170408 |
| Cutting Direction | Right Hand |
| Insert Shape | 75 Degrees Parallelogram |
| Insert Holding Type | Screw |
| ANSI Code | M4000CA-XDPT17 |
| Shank Length | 15 mm |
| Cutting Application | Face Milling, Side and Face Milling |
| Insert Style | XD.T PE R |
| ISO Number | M4000CA-XDPT17 |
| Coolant Fed | Non-Coolant Through |
| Number of Inserts | 1 |
| Package Quantity | 1 |
