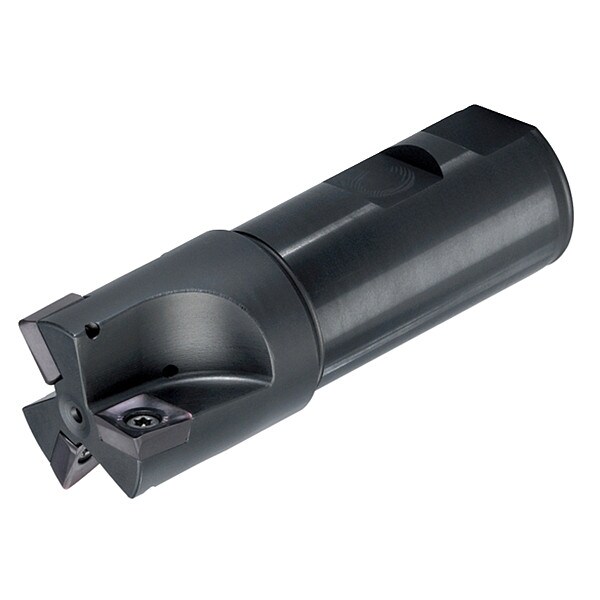

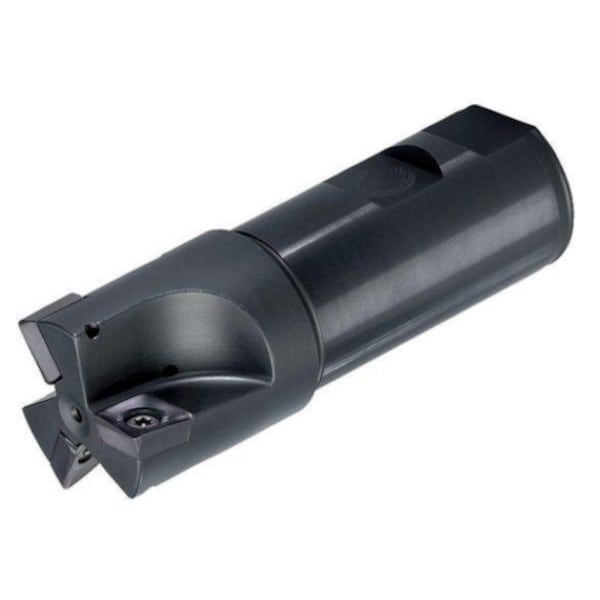

Indexable Profiling End Mill, M690 Series, High Speed Steel, 0.4000 in Depth of Cut
| Item | Indexable Profiling End Mill |
|---|---|
| Series | M690 |
| Overall Length | 4 in |
| Depth of Cut | 0.4 in |
| Material - Machining | High Speed Steel |
| Insert Size | 1204 |
| Shank Dia. | 1-1/4 in |
| Cutting Direction | Right Hand |
| Insert Shape | Square |
| Max. Speed | 22,400 rpm |
| Features | +/-3 micron Axial Adjustment Range, Excellent for Slot and Profile Milling, Four Cutting Edges |
| Head Projection Length | 1.72 in |
| Cutting Application | Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End |
| Number of Inserts | 3 |
| Coolant Fed | Coolant Through |
| Compatible Hardware | Insert Screw M3.5x0.6 x 9.5 T15, Torx Wrench |
| Insert Style | SDMT |
| Toolholder Style | SD1204 |
| Shank Type - Machining | Weldon Flat |
| ISO Number | M690D150Z03W125SD12 |
| ANSI Code | M690D150Z03W125SD12 |
| Insert Holding Type | Screw |
| Min. Cutting Dia. | 1-1/2 in |
| Package Quantity | 1 |
