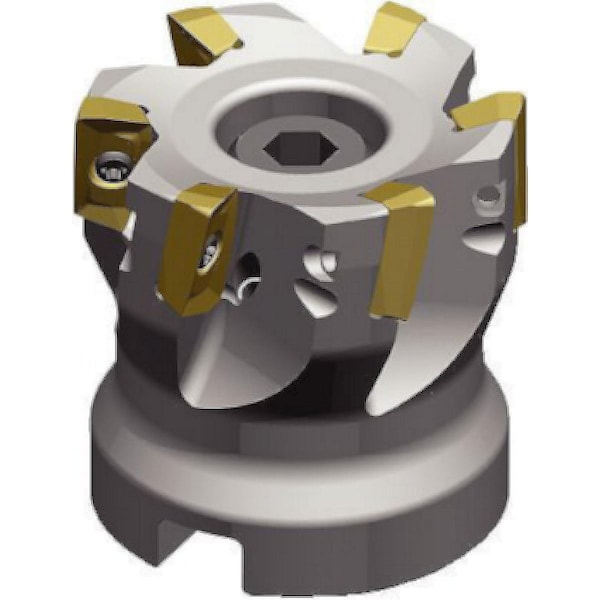

Indexable Profiling End Mill, VSM11 Series, High Speed Steel, 11.32mm Depth of Cut
| Item | Indexable Profiling End Mill |
|---|---|
| Series | VSM11 |
| Overall Length | 63 mm |
| Depth of Cut | 11.32 mm |
| Material - Machining | High Speed Steel |
| Cutting Direction | Right Hand |
| Insert Size | 110408 |
| Insert Shape | 75 Degrees Parallelogram |
| Rake | 12 Degrees Axial, -2.767 Degrees Radial |
| Insert Holding Type | Screw |
| Max. Speed | 12,100 rpm |
| Cutting Application | Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End |
| Coolant Fed | Coolant Through |
| Features | Effective Internal Coolant Feature, Increased Ramping Capability, Precisely Reaching the Cutting Edge, Superior Wall and Surface Finish Capabilities, True 90 Degrees Capability |
| ISO Number | VSM11D125Z011S040XD11 |
| ANSI Code | VSM11D125Z011S040XD11 |
| Insert Style | XD.T PD R |
| Side Cutting Edge Angle | 90 deg |
| Compatible Hardware | Coolant Screw Assembly M20, Insert Screw M2.5x0.45 x 5.9 T8, Torx Wrench TX8 |
| Arbor Dia. | 40 mm |
| Hub Outside Dia. | 80 mm |
| Package Quantity | 1 |
