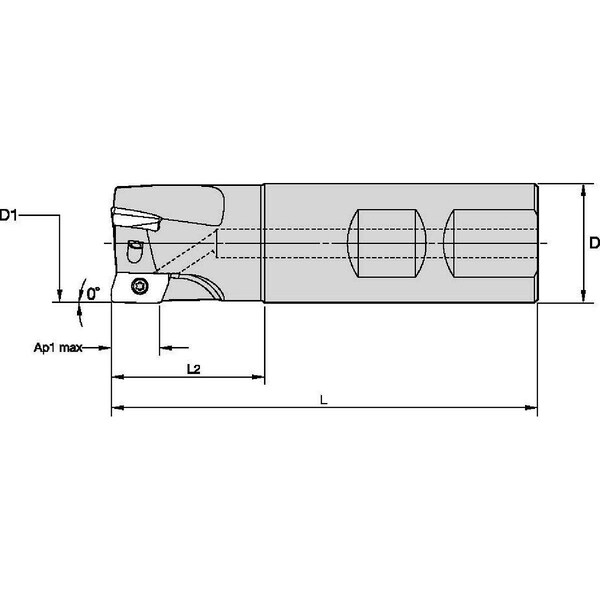

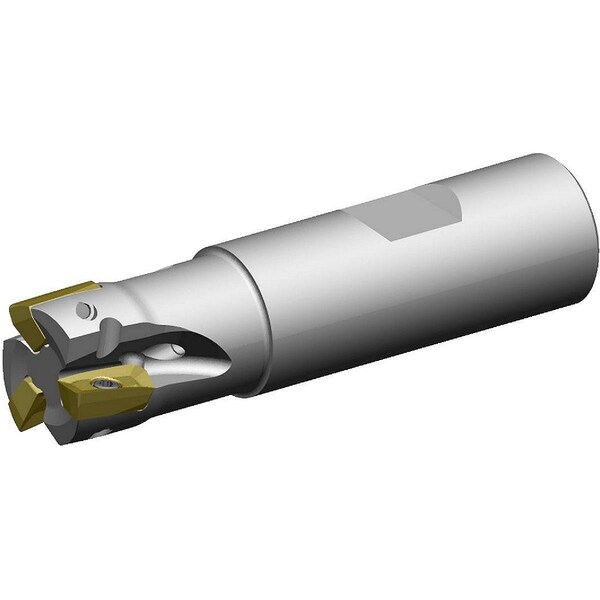

Indexable Profiling End Mill, VSM17 Series, High Speed Steel, 0.6410 in Depth of Cut
| Item | Indexable Profiling End Mill |
|---|---|
| Series | VSM17 |
| Overall Length | 4 in |
| Depth of Cut | 0.641 in |
| Material - Machining | High Speed Steel |
| Shank Dia. | 1-1/4 in |
| Insert Size | 1704 |
| Cutting Direction | Right Hand |
| Rake | 7.5 Degrees Axial, -7.8 Degrees Radial |
| Number of Inserts | 2 |
| Neck Dia. | 1.093 in |
| Features | Effective Internal Coolant Feature, Increased Ramping Capability, Precisely Reaching the Cutting Edge, Superior Wall and Surface Finish |
| Number of Coolant Holes | 1 |
| ANSI Code | VSM17D125Z02W125XD17 |
| Min. Cutting Dia. | 1-1/4 in |
| Shank Length | 2.28 in |
| Side Cutting Edge Angle | 0 deg |
| Compatible Hardware | Insert Screw M4x0.7 x 8.4 T15, Torx Wrench TX15 |
| ISO Number | VSM17D125Z02W125XD17 |
| Max. Speed | 34,700 rpm |
| Insert Style | XD.T PE R |
| Head Projection Length | 1.72 in |
| Toolholder Style | XDPT17 |
| Cutting Application | Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Square End |
| Coolant Fed | Coolant Through |
| Shank Type - Machining | Weldon Flat |
| Insert Holding Type | Screw |
| Package Quantity | 1 |
