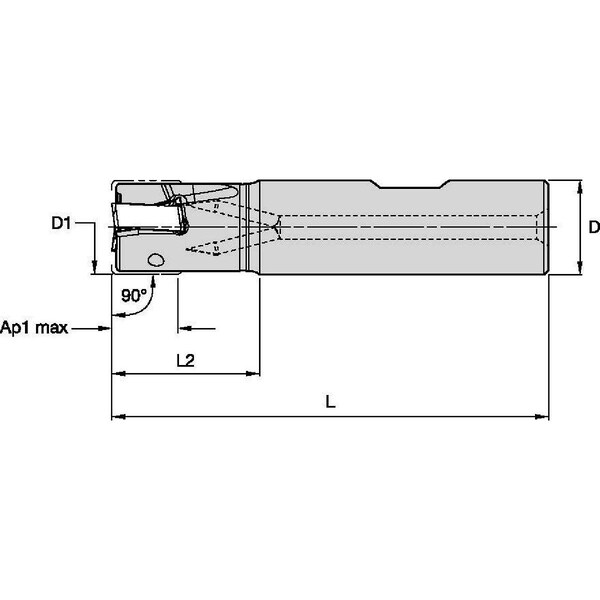

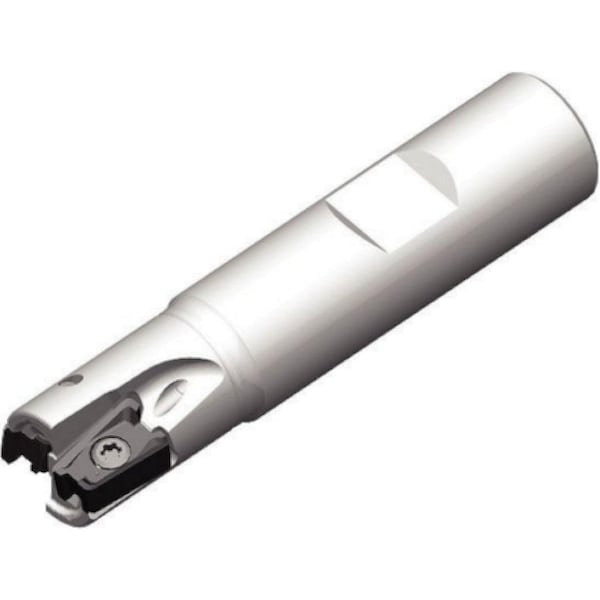

Indexable Profiling End Mill, VSM490-10 Series, High Speed Steel, 10.00mm Depth of Cut
| Item | Indexable Profiling End Mill |
|---|---|
| Series | VSM490-10 |
| Overall Length | 89 mm |
| Depth of Cut | 10 mm |
| Material - Machining | High Speed Steel |
| Insert Size | 100408 |
| Cutting Direction | Right Hand |
| Shank Dia. | 25 mm |
| Insert Shape | 90 Degrees Rectangle Mill |
| Rake | -8 Degrees Axial, -16.5 Degrees Radial |
| Coolant Fed | Coolant Through |
| Toolholder Style | XN10 |
| Cutting Application | Face Milling, Side/Shoulder Milling: Square End |
| Shank Type - Machining | Weldon Flat |
| Number of Inserts | 3 |
| Shank Length | 57 mm |
| Head Projection Length | 32 mm |
| Insert Holding Type | Screw |
| Features | Best-in-Class Wall Finish in Axial Stepping-Down Jobs, Lower Cutting Forces and Real Soft Cutting Action, Perfect Fit for Taper 40 Spindles and Driven Units, Reduced Shanks Available |
| Side Cutting Edge Angle | 90 deg |
| Min. Cutting Dia. | 25 mm |
| Max. Speed | 34,300 rpm |
| Insert Style | XNGU SRMM |
| Compatible Hardware | Anti-Seize Lubricant, Hardware Chave Torx DT-9IP, Insert Screw M3x0.5 x 7.2 IP 9 |
| ISO Number | VSM490D025Z03B25XN10 |
| Number of Coolant Holes | 2 |
| ANSI Code | VSM490D025Z03B25XN10 |
| Package Quantity | 1 |
