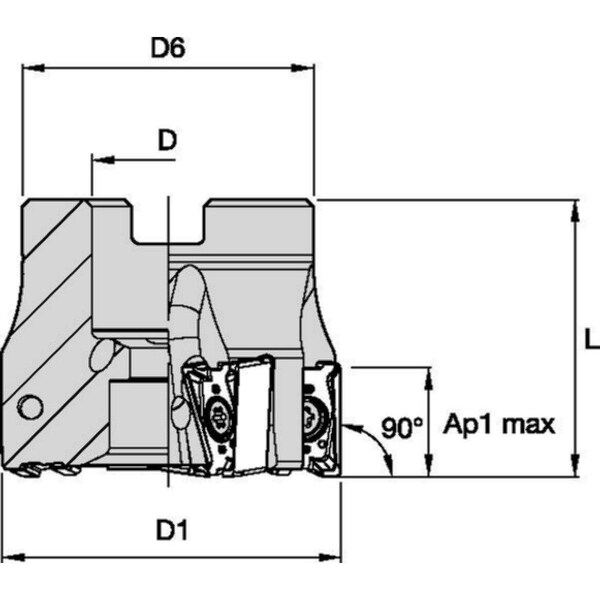

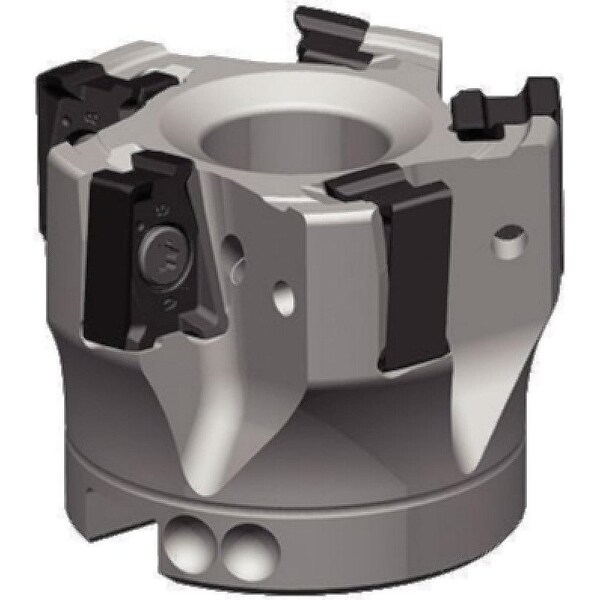

Indexable Profiling End Mill, VSM490-15 Series, High Speed Steel, 15.00mm Depth of Cut
| Item | Indexable Profiling End Mill |
|---|---|
| Series | VSM490-15 |
| Overall Length | 40 mm |
| Depth of Cut | 15 mm |
| Material - Machining | High Speed Steel |
| Insert Size | 15T608 |
| Cutting Direction | Right Hand |
| Insert Shape | 90 Degrees Rectangle Mill 4 |
| Rake | -8 Degrees Axial, -13.7 Degrees Radial |
| Coolant Fed | Coolant Through |
| Max. Speed | 14,200 rpm |
| Features | Effective Internal Coolant Feature, Precisely Reaching the Cutting Edge, Stepless Solution, Strong Concept to Run up to 15mm (0.590 in) Depth of Cut, Superior Wall and Surface Finish Capabilities, True 90 Degrees to Run Precise Applications in Multiple Axial Passes |
| Insert Style | XNGU SRMM |
| Cutting Application | Face Milling, Pocketing, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End |
| Insert Holding Type | Screw |
| Compatible Hardware | Anti-Seize Lubricant, Coolant Screw, Insert Screw M4x0.7 x 10 Ip15, Socket Head Screw DIN 912 M10, Torx Plus Drive Wrench DT15IP |
| Number of Inserts | 6 |
| ANSI Code | VSM490D063Z06S22XN15 |
| ISO Number | VSM490D063Z06S22XN15 |
| Arbor Dia. | 22 mm |
| Hub Outside Dia. | 50 mm |
| Package Quantity | 1 |
