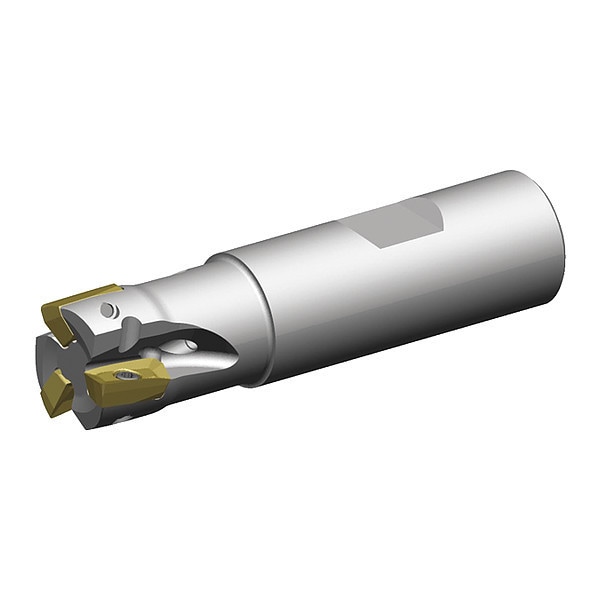

Indexable Square Shoulder End Mill, VSM11 Series, 1" Max Cut Dia, High Speed Steel
| Item | Indexable Square Shoulder End Mill |
|---|---|
| Series | VSM11 |
| Cutting Dia. | 1 in |
| Overall Length | 3-1/2 in |
| Number of Inserts Required | 4 |
| Depth of Cut | 0.453 in |
| Material - Machining | High Speed Steel |
| Shank Dia. | 1 in |
| Insert Size | 110408 |
| Cutting Direction | Right Hand |
| Shank Shape | Weldon |
| Insert Holding Type | Screw |
| Shank Type - Machining | Weldon Flat |
| Shank Length | 2.28 in |
| Neck Dia. | 0.912 in |
| Compatible Hardware | Insert Screw M2.5x0.45 x 5.9 T8, Torx Wrench TX8 |
| Min. Cutting Dia. | 1 in |
| Rake | 8 Degrees Axial, -6.6 Degrees Radial |
| Cutting Application | Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Square End |
| Number of Inserts | 4 |
| ANSI Code | VSM11D100Z04W100XD11 |
| Features | Effective Internal Coolant Feature, Increased Ramping Capability, Precisely Reaching the Cutting Edge, Superior Wall and Surface Finish |
| Insert Style | XD.T PD R |
| Max. Speed | 29,900 rpm |
| Toolholder Style | XDPT11 |
| Insert Shape | 75 Degrees Parallelogram |
| ISO Number | VSM11D100Z04W100XD11 |
| Number of Coolant Holes | 1 |
| Coolant Fed | Coolant Through |
| Head Projection Length | 1.22 in |
| Side Cutting Edge Angle | 0 deg |
| Max. Cutting Dia. | 1 in |
| Number of Flutes | 4 |
| Package Quantity | 1 |
