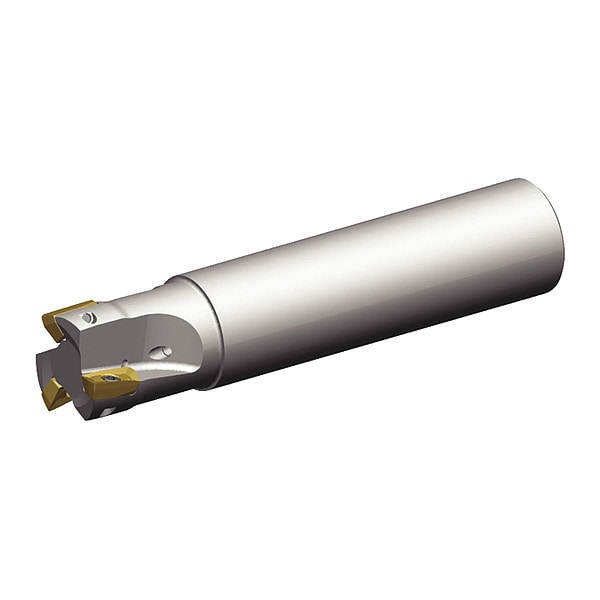

Indexable Square Shoulder End Mill, VSM11 Series, High Speed Steel, 0.4610 in Depth of Cut
| Item | Indexable Square Shoulder End Mill |
|---|---|
| Series | VSM11 |
| Overall Length | 4 in |
| Depth of Cut | 0.461 in |
| Material - Machining | High Speed Steel |
| Shank Dia. | 5/8 in |
| Insert Size | 110408 |
| Cutting Direction | Right Hand |
| Type | End Mill |
| Insert Shape | 75 Degrees Parallelogram |
| Number of Flutes | 1 |
| Rake | 0 Degrees Axial, -18 Degrees Radial |
| Insert Holding Type | Screw |
| Min. Cutting Dia. | 1/2 in |
| Toolholder Style | XDPT11 |
| Coolant Fed | Coolant Through |
| Shank Length | 3.2 in |
| Insert Style | XD.T PD R |
| ISO Number | VSM11D050Z01C062XD11L400 |
| Number of Inserts | 1 |
| Side Cutting Edge Angle | 0 deg |
| Features | Effective Internal Coolant Feature, Increased Ramping Capability, Precisely Reaching the Cutting Edge, Superior Wall and Surface Finish |
| ANSI Code | VSM11D050Z01C062XD11L400 |
| Compatible Hardware | Insert Screw M2.5x0.45 x 5.9 T8, Torx Wrench TX8 |
| Neck Dia. | 0.392 in |
| Max. Speed | 50,400 rpm |
| Head Projection Length | 0.8 in |
| Cutting Application | Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Square End |
| Number of Coolant Holes | 1 |
| Shank Type - Machining | Straight |
| Max. Cutting Dia. | 1/2 in |
| Material | High Speed Steel |
| Package Quantity | 1 |
