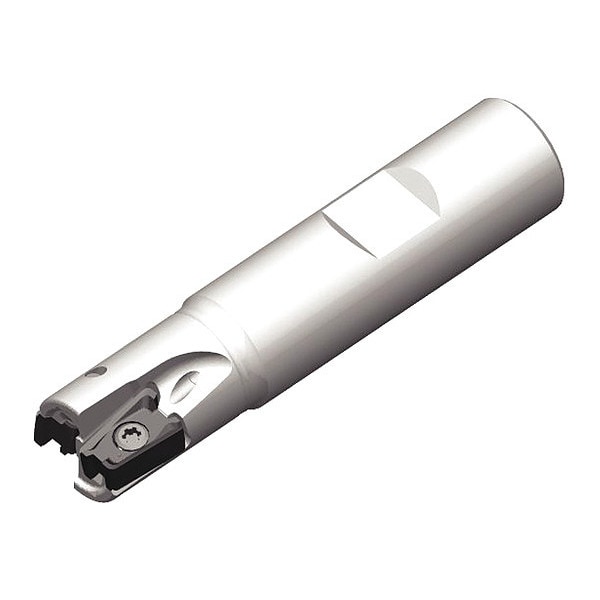

Indexable Square Shoulder End Mill, VSM490-10 Series, High Speed Steel, 0.3940 in Depth of Cut
| Item | Indexable Square Shoulder End Mill |
|---|---|
| Series | VSM490-10 |
| Overall Length | 3-3/4 in |
| Depth of Cut | 0.394 in |
| Material - Machining | High Speed Steel |
| Cutting Direction | Right Hand |
| Shank Dia. | 1 in |
| Insert Size | 100408 |
| Number of Flutes | 4 |
| Insert Shape | 90 Degrees Rectangle Mill |
| Type | End Mill |
| Rake | -8 Degrees Axial, -15.4 Degrees Radial |
| Compatible Hardware | Anti-Seize Lubricant, Hardware Chave Torx DT-9IP, Insert Screw M3x0.5 x 7.2 IP 9 |
| Insert Holding Type | Screw |
| Insert Style | XNGU SRMM |
| Neck Dia. | 0.98 in |
| Side Cutting Edge Angle | 0 deg |
| Features | Best-in-Class Wall Finish in Axial Stepping-Down Jobs, Lower Cutting Forces and Real Soft Cutting Action, Perfect Fit for Taper 40 Spindles and Driven Units, Reduced Shanks and Long Versions Available |
| Number of Coolant Holes | 2 |
| Number of Inserts | 4 |
| Head Projection Length | 1.47 in |
| Shank Length | 2.28 in |
| Shank Type - Machining | Weldon Flat |
| Cutting Application | Face Milling, Side/Shoulder Milling: Square End |
| Toolholder Style | XN10 |
| Max. Speed | 29,200 rpm |
| ISO Number | VSM490D125Z04W100XN10 |
| ANSI Code | VSM490D125Z04W100XN10 |
| Min. Cutting Dia. | 1-1/4 in |
| Coolant Fed | Coolant Through |
| Max. Cutting Dia. | 1-1/4 in |
| Material | High Speed Steel |
| Package Quantity | 1 |
