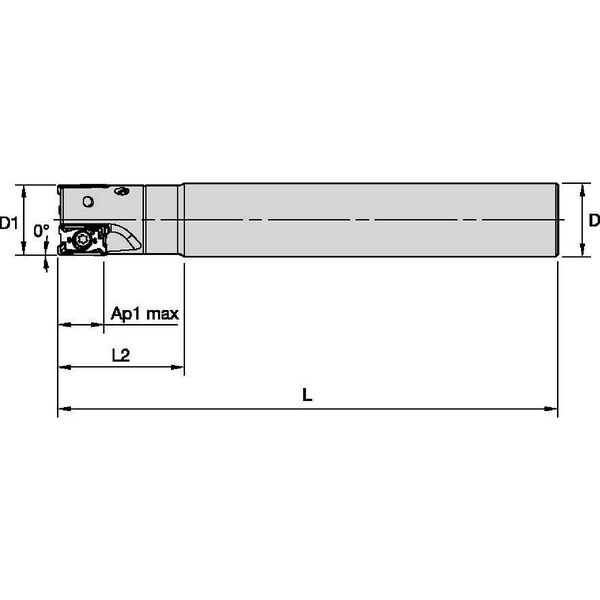

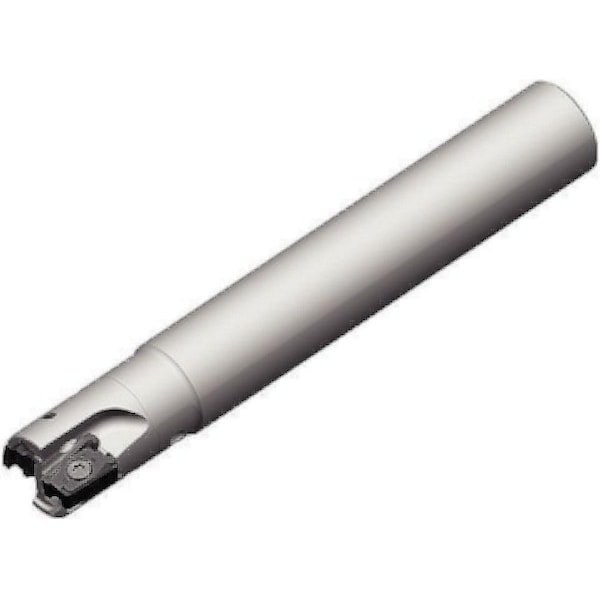

Indexable Square Shoulder End Mill, VSM490-15 Series, 1.2500" Max Cut Dia, High Speed Steel
| Item | Indexable Square Shoulder End Mill |
|---|---|
| Series | VSM490-15 |
| Cutting Dia. | 1-1/4 in |
| Overall Length | 8 in |
| Number of Inserts Required | 3 |
| Depth of Cut | 0.591 in |
| Material - Machining | High Speed Steel |
| Cutting Direction | Right Hand |
| Shank Dia. | 1-1/4 in |
| Insert Size | 15T608 |
| Shank Shape | Straight |
| Min. Cutting Dia. | 1-1/4 in |
| Compatible Hardware | Anti-Seize Lubricant, Insert Screw M4x0.7 x 10 IP 15, Torx Plus Drive Wrench DT15IP |
| ANSI Code | VSM490D125Z03C125XN15L800 |
| Shank Type - Machining | Straight |
| Head Projection Length | 2-1/4 in |
| Insert Shape | 90 Degrees Rectangle Mill |
| Coolant Fed | Coolant Through |
| Cutting Application | Face Milling, Pocketing, Side/Shoulder Milling: Square End, Slotting: Square End |
| Toolholder Style | XN15 |
| Max. Speed | 22,100 rpm |
| Number of Inserts | 3 |
| Number of Coolant Holes | 2 |
| Insert Style | XNGU SRMM |
| ISO Number | VSM490D125Z03C125XN15L800 |
| Features | Effective Internal Coolant Feature, in Stepless in Solution, Reaching the Cutting Edge Precisely, Strong Concept to Run up to 15mm (0.590 in) Depth of Cut, Superior Wall and Surface Finish Capabilities, True 0 Degrees to Run Precise Applications in Multiple Axial Passes |
| Shank Length | 5-3/4 in |
| Insert Holding Type | Screw |
| Rake | -8 Degrees Axial, -17.4 Degrees Radial |
| Number of Flutes | 3 |
| Package Quantity | 1 |
