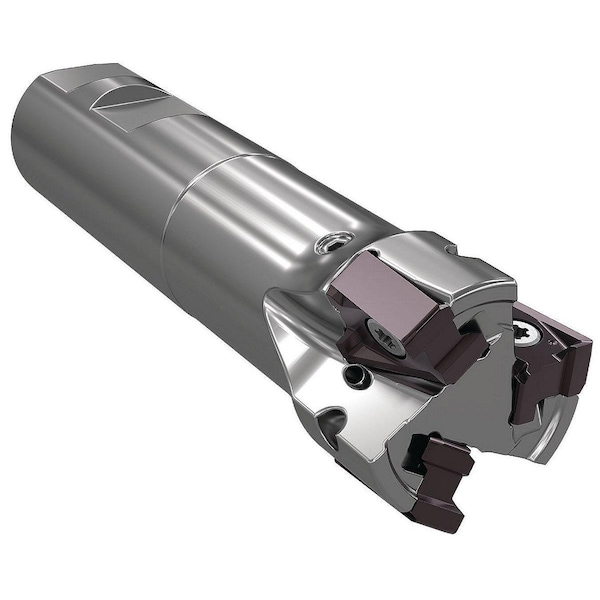

Indexable Square Shoulder End Mill, VSM490-15 Series, 1.5000" Max Cut Dia, High Speed Steel
| Item | Indexable Square Shoulder End Mill |
|---|---|
| Series | VSM490-15 |

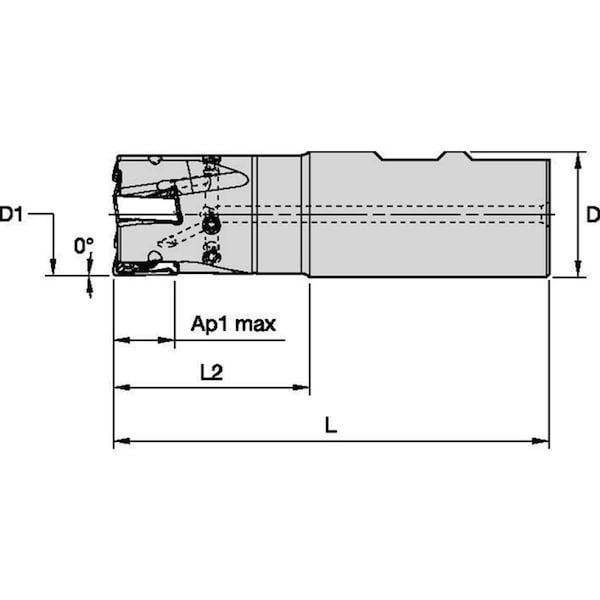

| Cutting Dia. | 1-1/2 in |
| Overall Length | 4.53 in |
| Number of Inserts Required | 4 |
| Depth of Cut | 0.591 in |
| Material - Machining | High Speed Steel |
| Insert Size | 15T608 |
| Shank Shape | Weldon |
| Shank Dia. | 1-1/4 in |
| Cutting Direction | Right Hand |
| Head Projection Length | 2-1/4 in |
| Features | Effective Internal Coolant Feature, in Stepless in Solution, Reaching the Cutting Edge Precisely, Strong Concept to Run up to 15mm (0.590 in) Depth of Cut, Superior Wall and Surface Finish Capabilities, True 0 Degrees to Run Precise Applications in Multiple Axial Passes |
| Toolholder Style | XN15 |
| Min. Cutting Dia. | 1-1/2 in |
| ISO Number | VSM490D150Z04W125XN15 |
| Rake | -8 Degrees Axial, -15.4 Degrees Radial |
| Coolant Fed | Coolant Through |
| Neck Dia. | 1.22 in |
| Shank Length | 2.28 in |
| Max. Speed | 19,500 rpm |
| Insert Style | XNGU SRMM |
| Compatible Hardware | Anti-Seize Lubricant, Insert Screw M4x0.7 x 10 IP 15, Torx Plus Drive Wrench DT15IP |
| Insert Shape | 90 Degrees Rectangle Mill |
| Insert Holding Type | Screw |
| Number of Inserts | 4 |
| Cutting Application | Face Milling, Pocketing, Side/Shoulder Milling: Square End, Slotting: Square End |
| ANSI Code | VSM490D150Z04W125XN15 |
| Shank Type - Machining | Weldon Flat |
| Number of Coolant Holes | 2 |
| Number of Flutes | 4 |
| Package Quantity | 1 |
