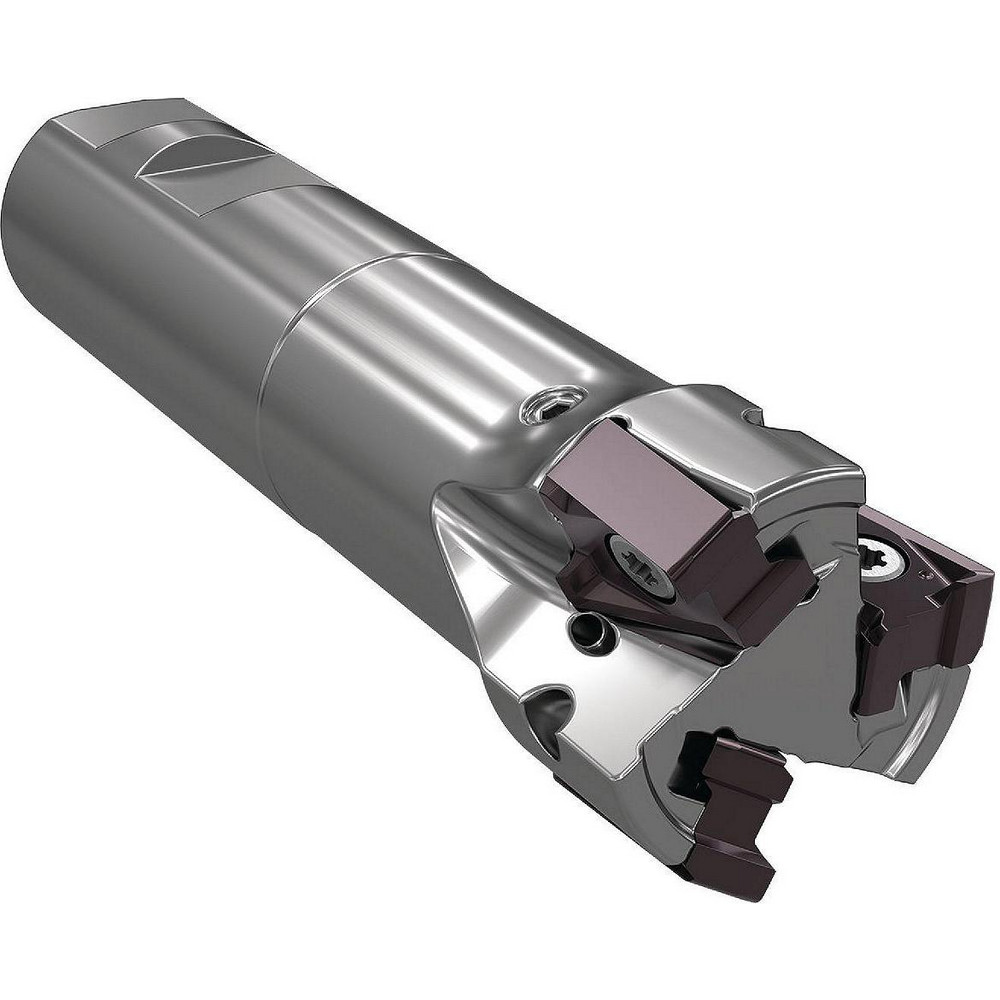

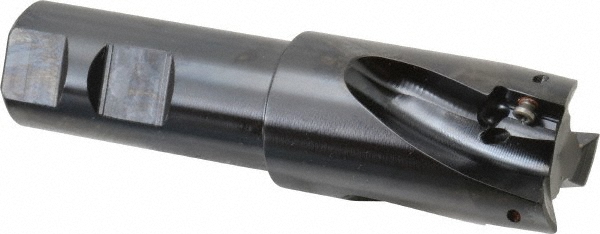

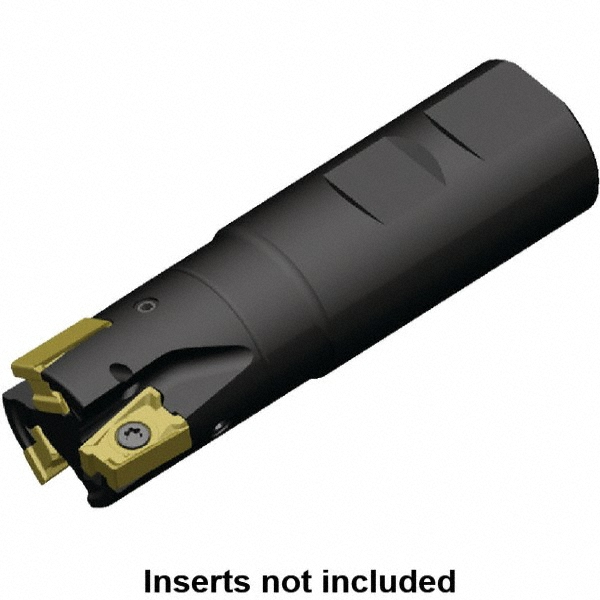

Uses (3) XNGU15.. Inserts, Through Coolant, 4.53" OAL

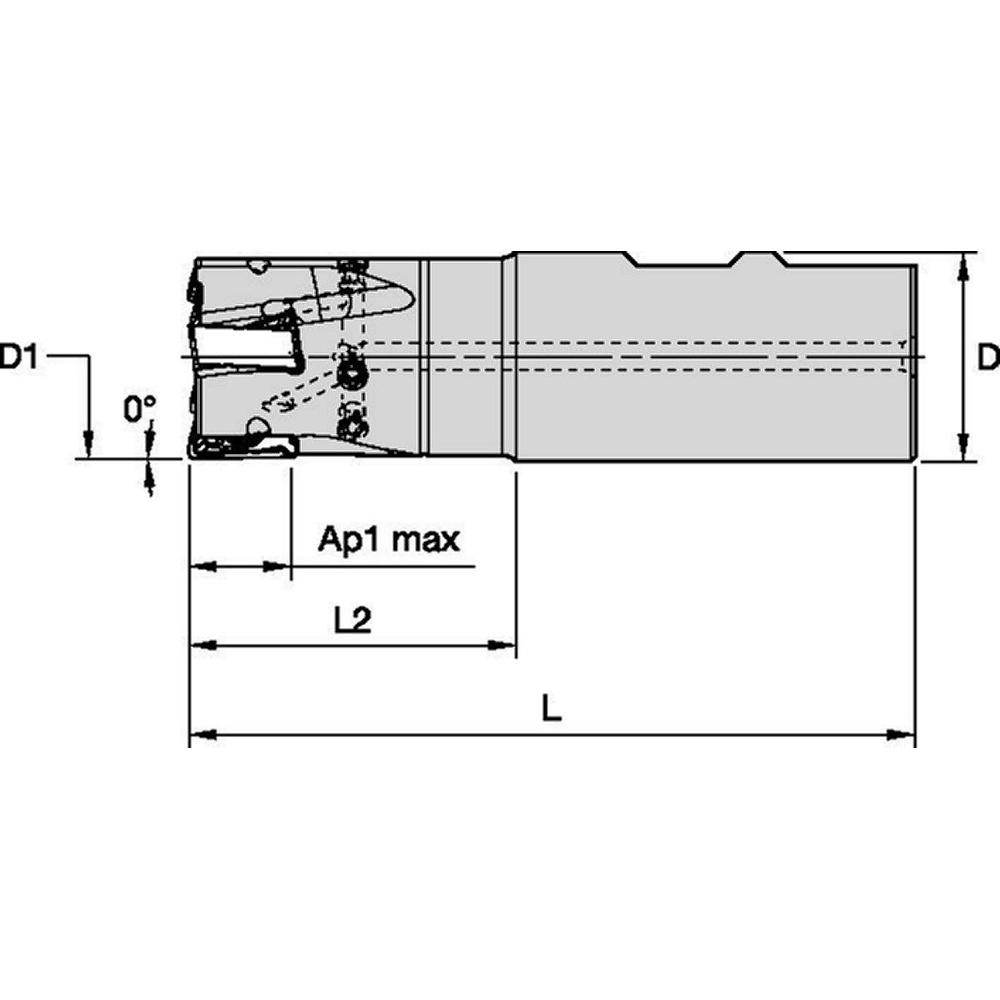

| Overall Length (Decimal Inch) | 4.5300 |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 0.5906 |
| Cutter Style | VSM |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Insert Holding Method | Screw |
| Maximum Ramping Angle | 0 |
| Tool Material | Steel |
| Series | VSM490-15 |
| Flute Type | Helical |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 2.2800 |
| Head Length (Inch) | 2-1/4 |
| Head Length (Decimal Inch) | 2.25 |
| Maximum RPM | 22100 |
| Tool Application | Pocketing; Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Coolant Hole Diameter (Decimal Inch) | 0.2362 |
| Rake | Negative (Axial); Negative (Radial) |
| Complete Insert Compatibility | XNGU15.. |
| Insert Compatibility | XNGU15.. |
| Hand of Holder | Right Hand |
| Rake Angle | -17 (Radial),-8 (Axial) |
| Multi-Use Tool | Yes |
| UNSPSC Code | 27112803 |
| ISO Number | VSM490D125Z03W100XN15 |
| Manufacturers Catalog Number | VSM490D125Z03W100XN15 |
| Number Of Flutes | 3 |
| Usable Length (Decimal Inch) | 2.2500 |
| Number Of Cutter Inserts | 3 |
| Coolant Through | Yes |
| Country of Origin | Spain |
| MSC Number | MSC# 10151850 |
