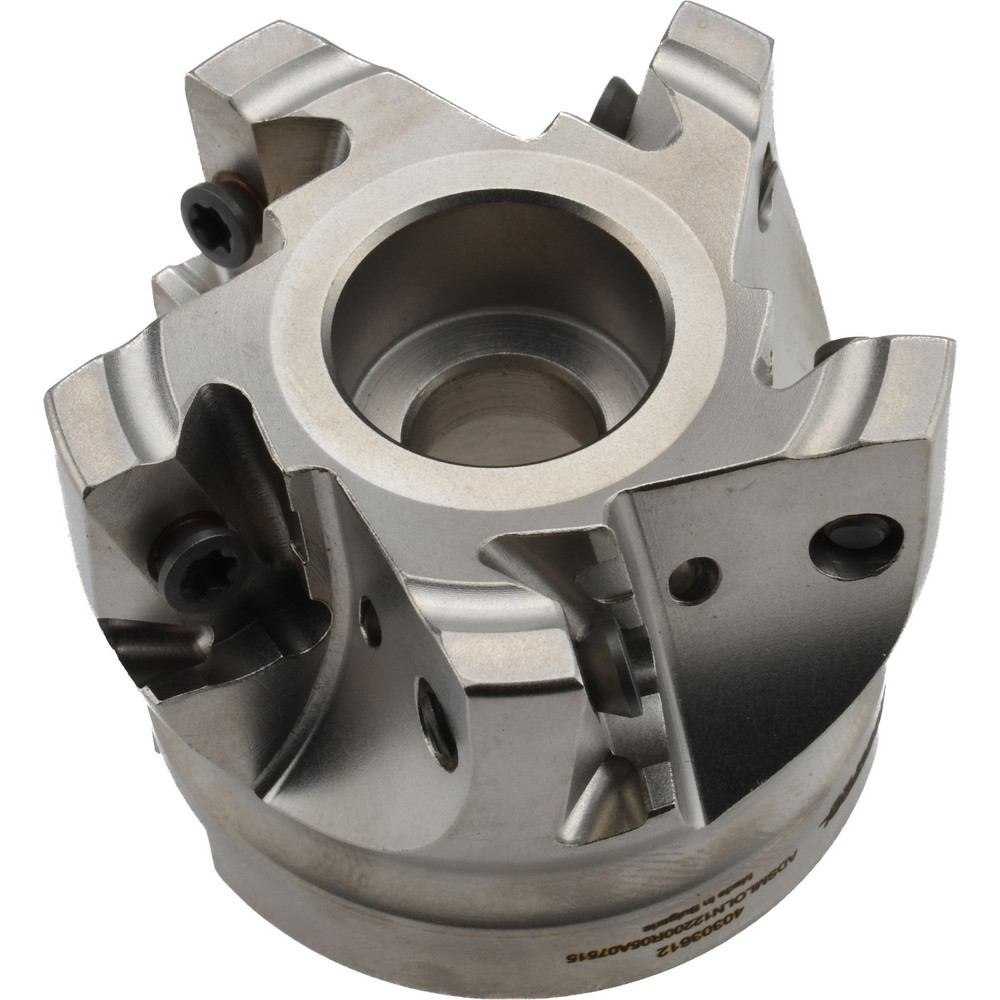

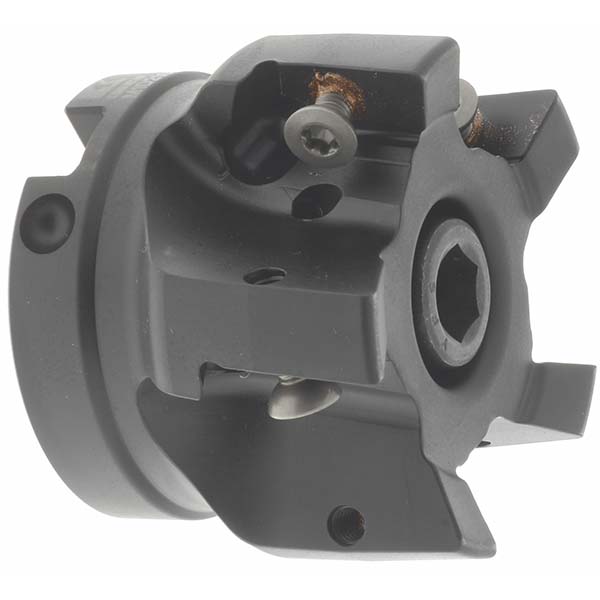

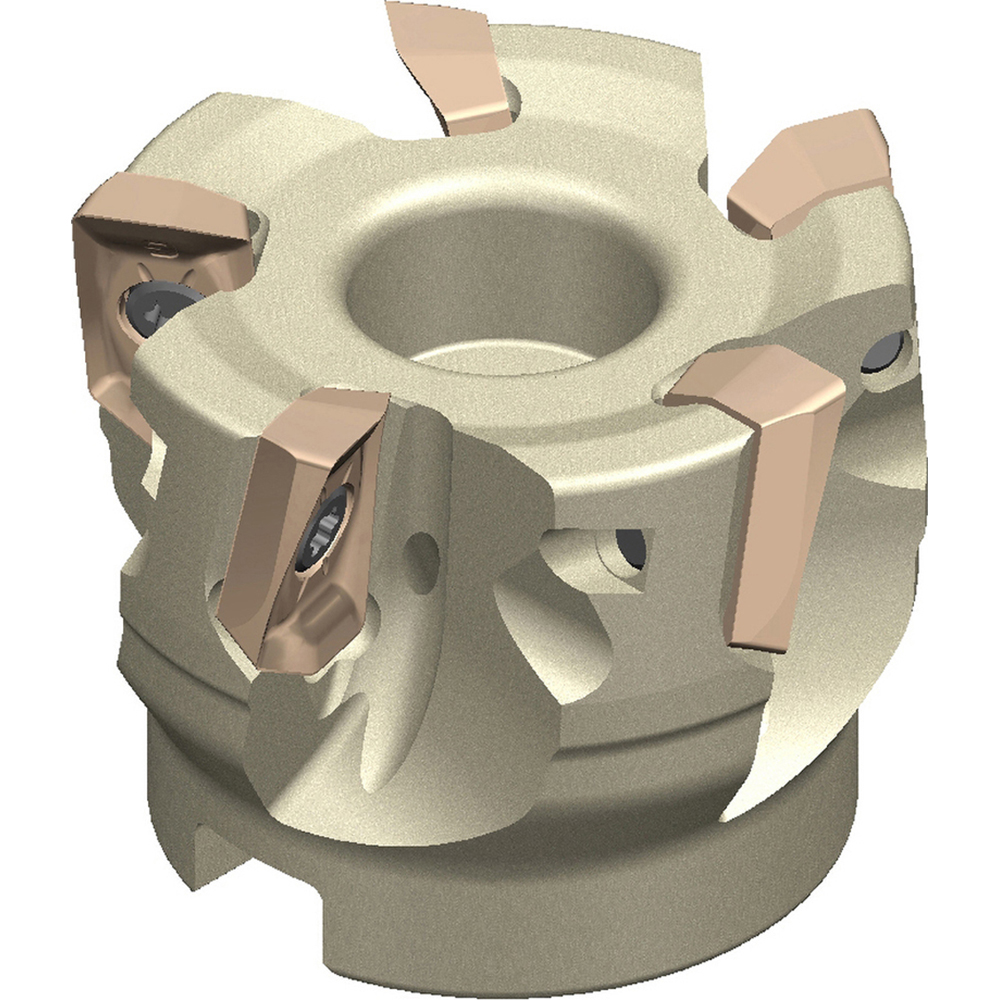

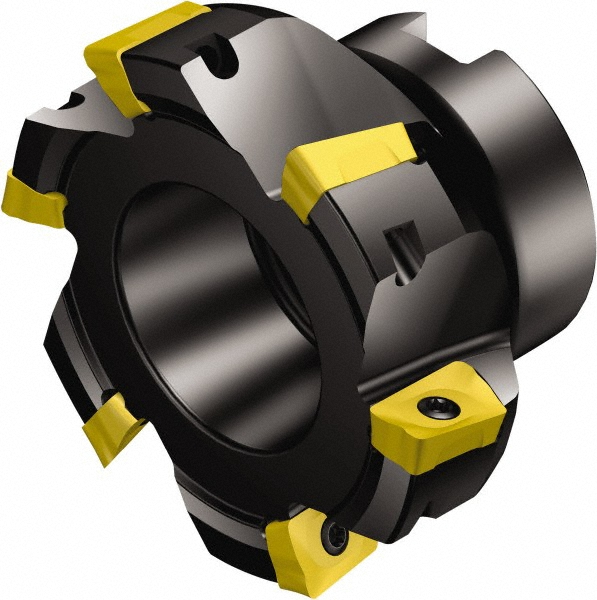

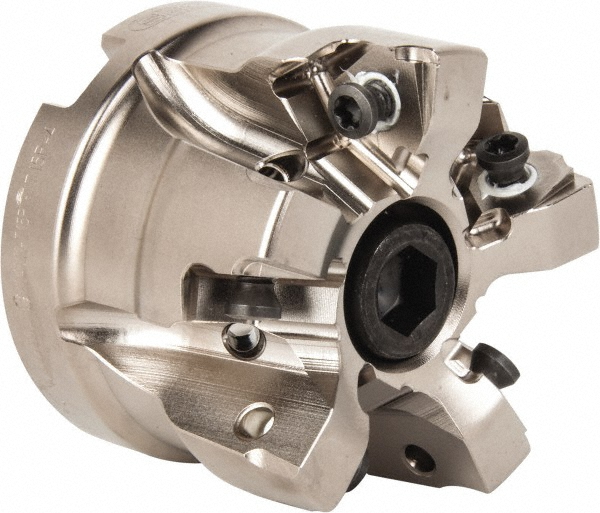

Uses 5 XP..16.. Inserts, Through Coolant, Series M680-16

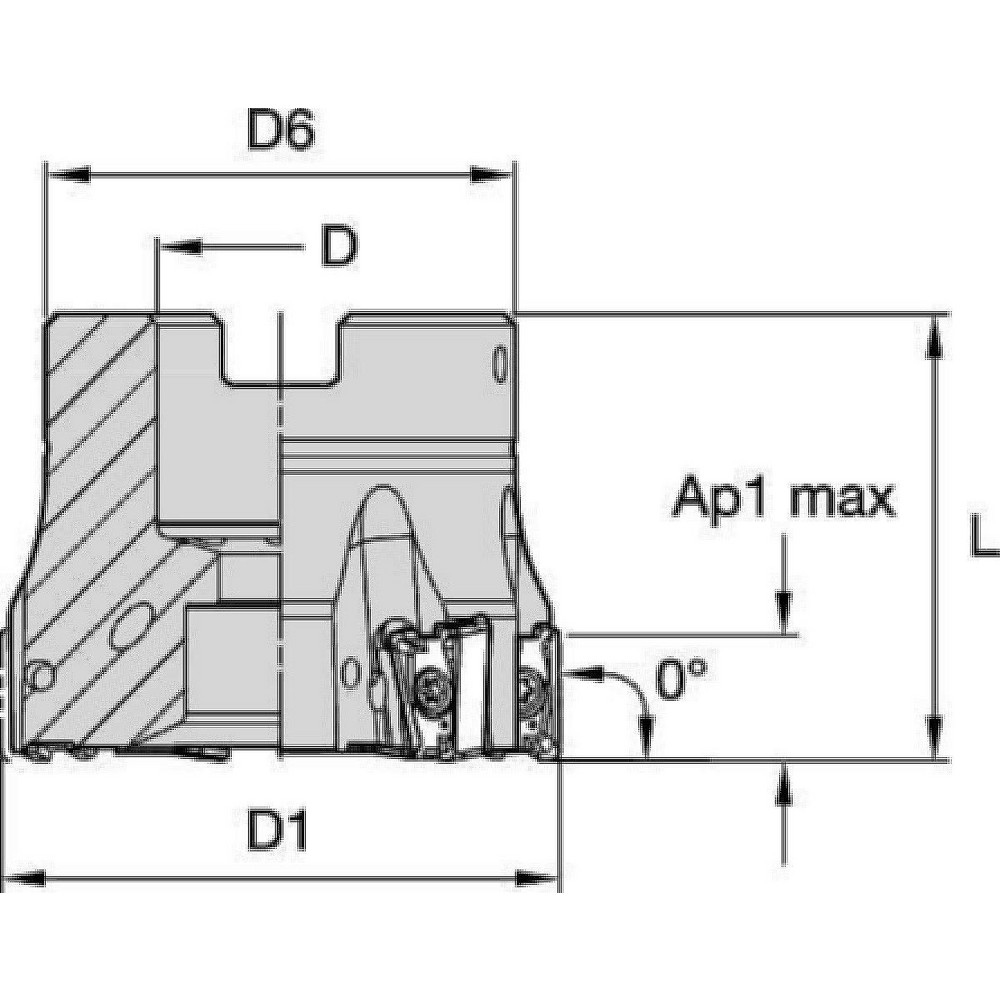

| Minimum Cutting Diameter (Decimal Inch) | 2.0000 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.5500 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Compatible Insert Size Code | XP..16.. |
| Cutter Style | M680 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Positive |
| Series | M680-16 |
| Maximum Ramping Angle | 0 |
| Maximum Body Diameter (Decimal Inch) | 1.2598 |
| Overall Height (Decimal Inch) | 1.5000 |
| Keyway Width (mm) | 8.19 |
| Hub Diameter (Decimal Inch) | 1.7000 |
| Tool Application | Facing; Milling; Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Complete Insert Compatibility | XP..16.. |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | M680D200Z05S075XP16 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 5 |
| Number Of Flutes | 5 |
| Country of Origin | Spain |
| MSC Number | MSC# 09967159 |
