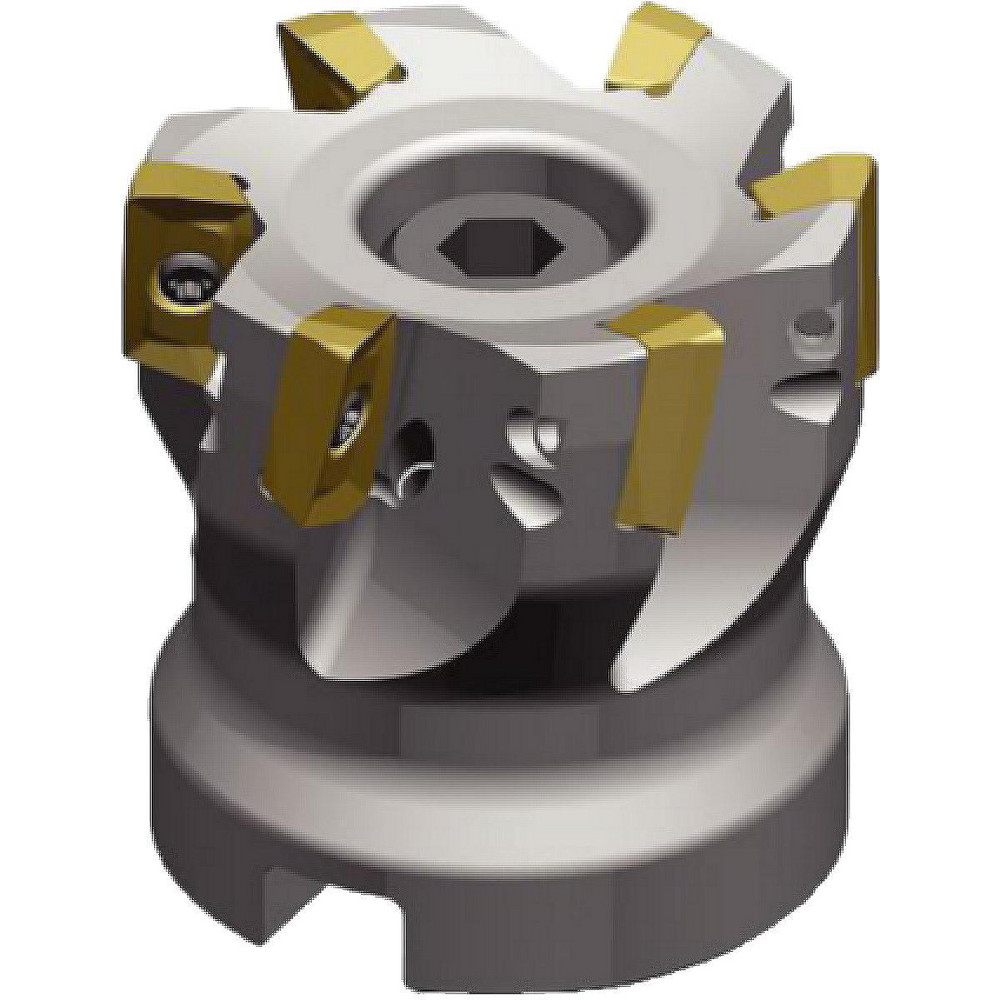

Uses 8 XD.T1104.. Inserts, Through Coolant, Series VSM11

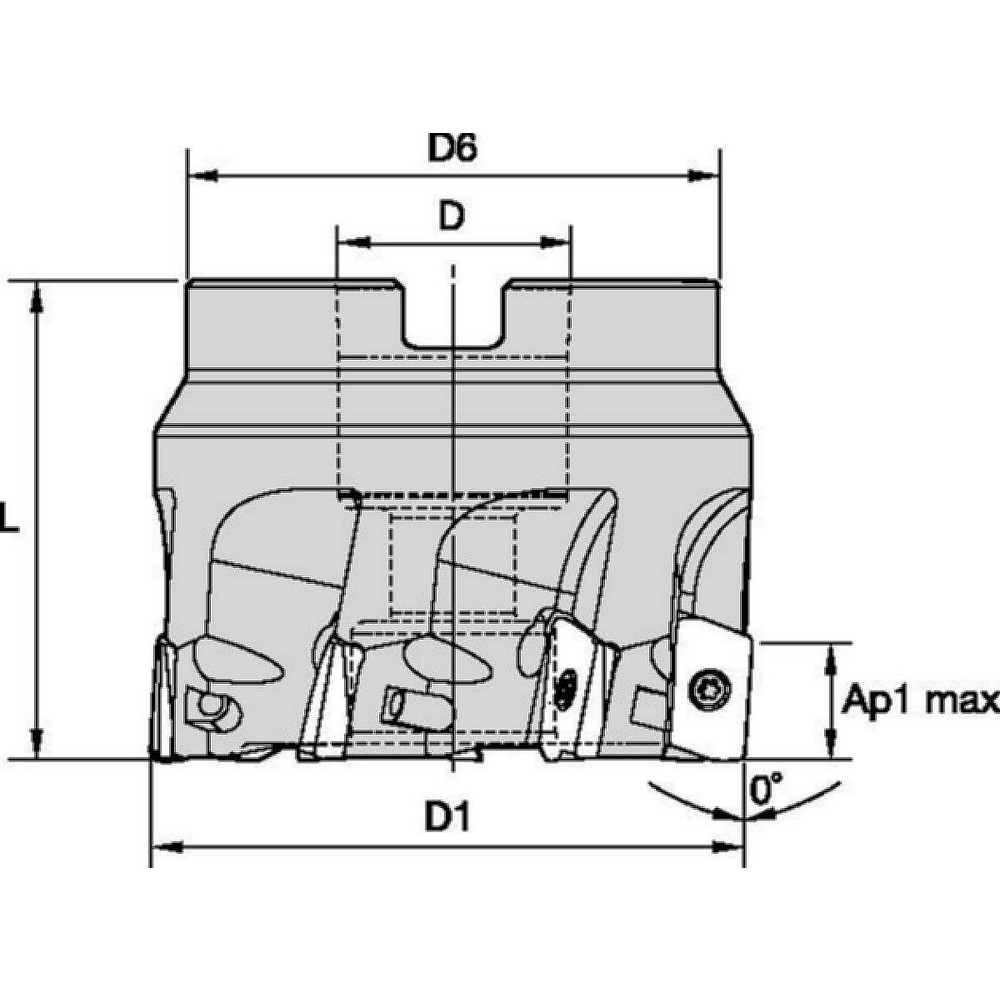

| Minimum Cutting Diameter (Decimal Inch) | 2.0000 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.4460 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Compatible Insert Size Code | XD.T1104.. |
| Cutter Style | VSM |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Negative (Radial); Positive (Axial) |
| Rake Angle | -4.97 |
| Series | VSM11 |
| Maximum Ramping Angle | 1.9 |
| Maximum Body Diameter (Decimal Inch) | 1.9330 |
| Overall Height (Decimal Inch) | 1.5750 |
| Keyway Width (mm) | 8.19 |
| Hub Diameter (Decimal Inch) | 1.7500 |
| Tool Application | Milling; Slotting; Ramping |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Coolant Hole Diameter (Decimal Inch) | 0.0980 |
| Complete Insert Compatibility | XD_T110408PD_R__ |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | VSM11D200Z08S075XD11 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 8 |
| Number Of Flutes | 8 |
| Country of Origin | Bulgaria |
| undefined | undefined |
| MSC Number | MSC# 09790296 |
