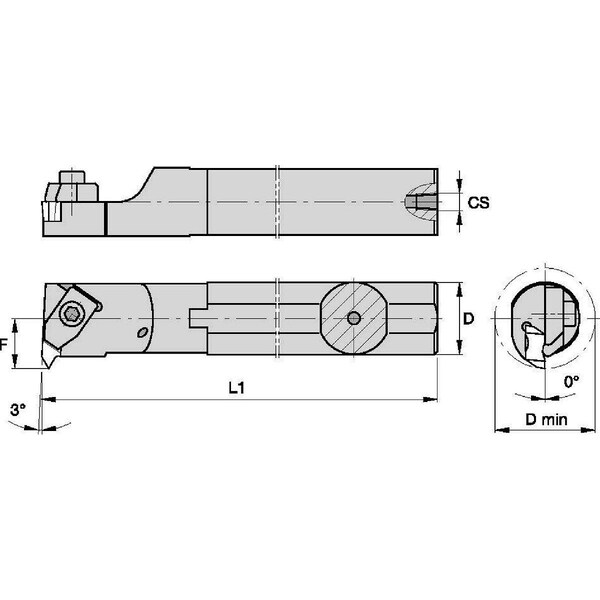

Indexable Thread Turning Tool Holder, A08NEL2, 8 in L, High Speed Steel, Top Notch Insert Shape
| Item | Indexable Thread Turning Tool Holder |
|---|---|
| Overall Length | 8 in |
| Shank Material | High Speed Steel |
| Insert Shape | Top Notch |
| ANSI Code | A08NEL2 |
| Type | Clamping |
| Insert Size | 2 |
| Rake | 0 Degrees Axial, 0 Degrees Radial |
| Cutting Direction | Left Hand |
| Lead Angle | 0 Degrees |
| Shank Dia. | 1/2 in |
| Insert Style | N.2R |

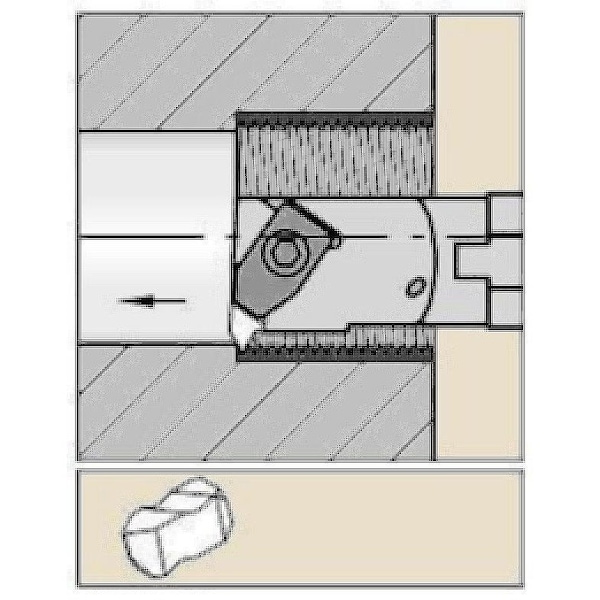

| Cutting Application | Inside Diameter |
| Coolant Fed | Coolant Through |
| Insert Holding Type | Clamp |
| Toolholder Style | A-NE |
| ISO Number | A08NEL2 |
| Center to Cutting Tip | 0 in |
| Number of Coolant Holes | 1 |
| Min. Bore Dia. | 18.54 mm |
| Measurement System | Fractional Inch |
| Package Quantity | 1 |
