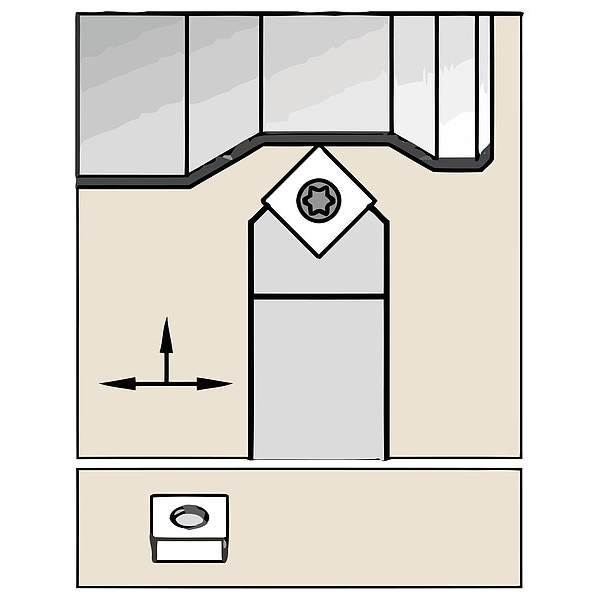

Indexable Toolholder, SSDC,
| Item | Indexable Turning Toolholder |
|---|---|
| Insert Shape | Square |
| Insert Screw | T15 |
| Rake | 0 Degrees Axial, 0 Degrees Radial |
| Style | Screw-On |
| Number of Inserts Required | 1 |
| Cutting Direction | Neutral |
| Insert Size | 32.52 |
| Material | Steel |
| Shank Length | 2-7/8 in |
| Cutting Length | 3/8 in |
| Overall Length | 3-1/2 in |
| Shank | Square |
| Clamp | Screw |
| Coolant Fed | Non-Coolant Through |
| Side Cutting Edge Angle | 45 deg |
| Toolholder Style | SSDC |
| Insert Inscribed Circle | 3/8 in |
| ISO Number | SSDCN083 |
| Insert Clearance Angle | 7 deg |
| Shank Width | 1/2 in |
| Cutting Application | Facing, Profiling, Turning |
| Insert Holding Type | Screw On |
| Shank Height | 1/2 in |
| Approach Angle | 45 deg |
| Head Length | 5/8 in |
| Compatible Hardware | T15 Insert Screw |
| Insert Style | SC |
| ANSI Code | SSDCN083 |
| Material - Machining | High Speed Steel |
| Measurement System | Decimal Inch |
| Lead Angle | 45 Degrees |
| Package Quantity | 1 |
