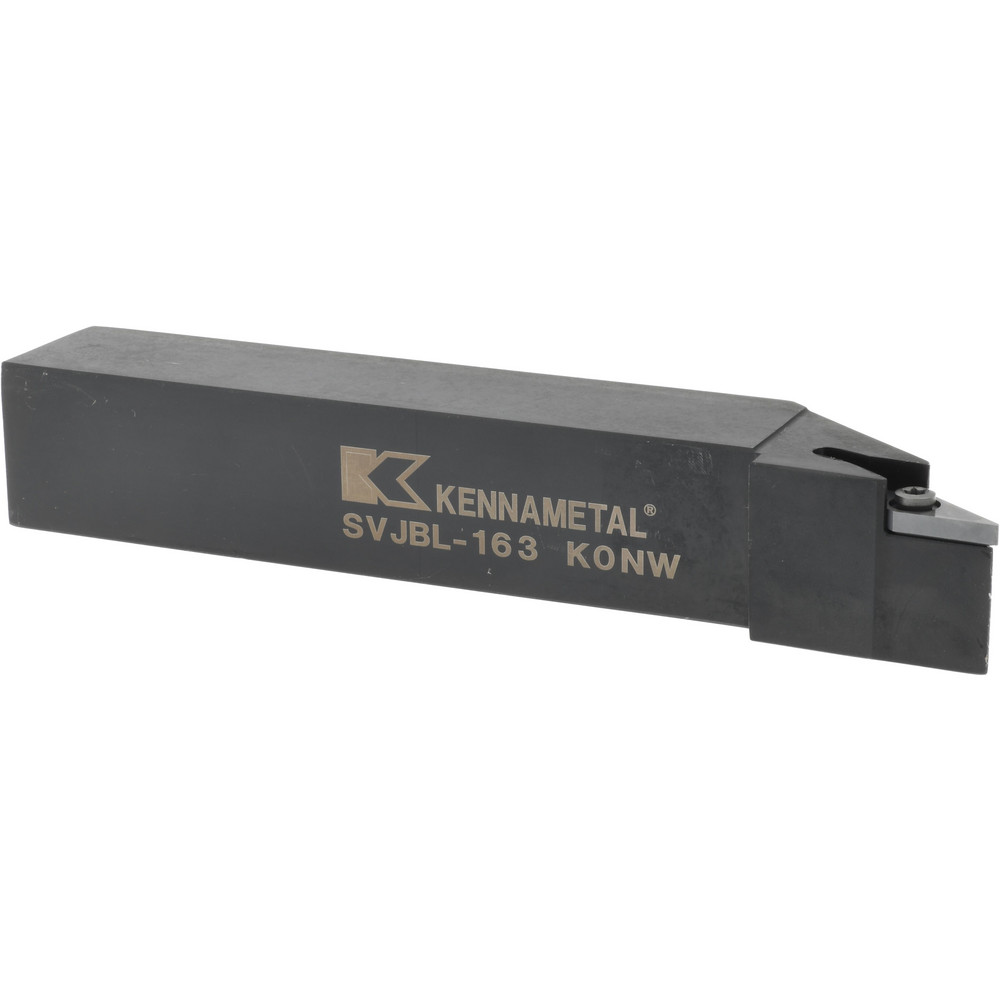

3/4 x 3/4" Shank, 4-1/2" OAL
| Toolholder Style | SVJBL |
|---|---|
| Hand of Holder | Left Hand |
| Lead Angle | 93.000 |
| Insert Compatibility | VB..33. |
| Insert Holding Method | Screw |
| Shank Width (Inch) | 3/4 |
| Shank Height (Inch) | 3/4 |
| Overall Length (Decimal Inch) | 4.5000 |
| Coolant Through | No |
| Rake | Positive |
| Cutting Direction | Left Hand |
| Compatible Insert Size Code | 33. |
| Rake Angle | 0 (Axial);0 (Radial) |
| Multi-use Tool | Yes |
| Shank Width (Decimal Inch) | 0.7500 |
| Shank Height (Decimal Inch) | 0.7500 |
| Series | SVJB |
| Overall Length (Inch) | 4-1/2 |

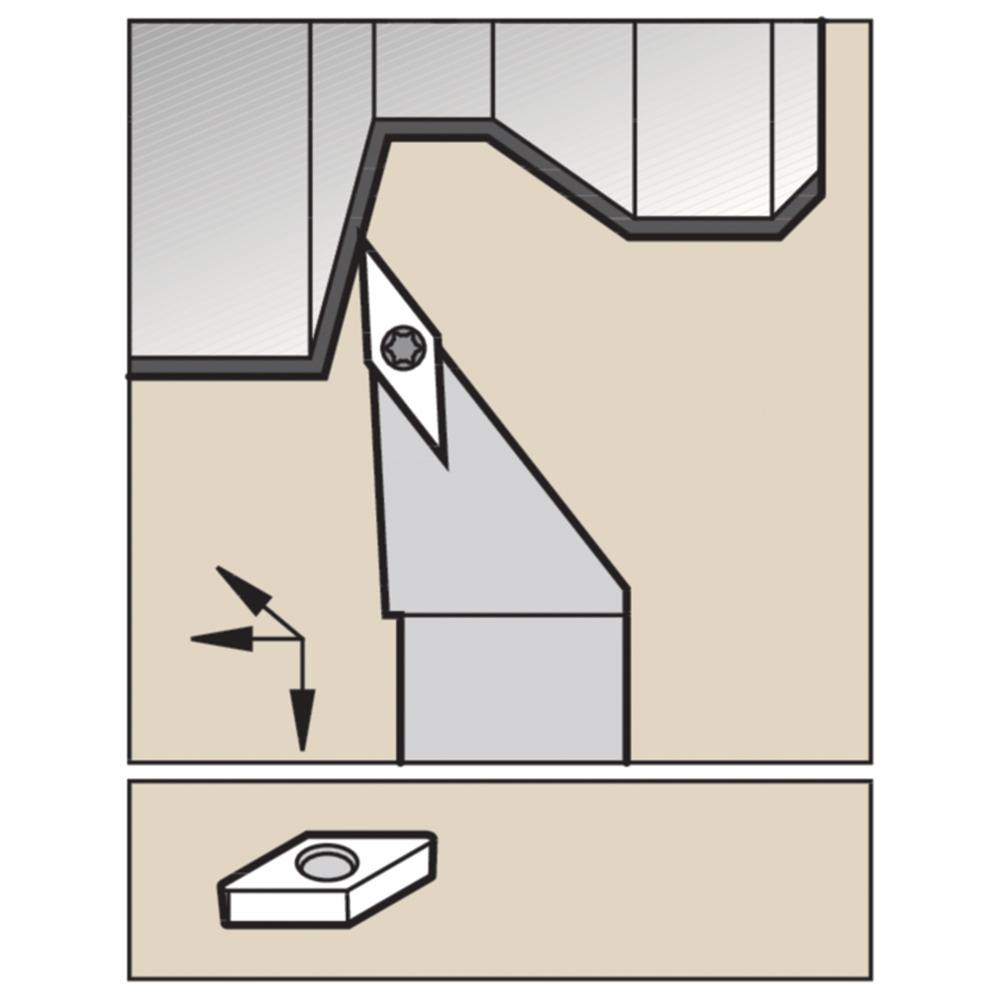

| Cutting Tool Application | Copying; Turning |
| Head Length (Decimal Inch) | 1.3800 |
| Back of Bar to Cutting Edge (Inch) | 1 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0000 |
| Primary Workpiece Material | Universal |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Width (Inch) | 3/8 |
| Insert Width (Decimal Inch) | 0.3750 |
| Toolholder Material | Steel |
| ISO Number | SVJBL123 |
| Complete Insert Compatibility | VB.. |
| UNSPSC Code | 23153308 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 98375660 |
