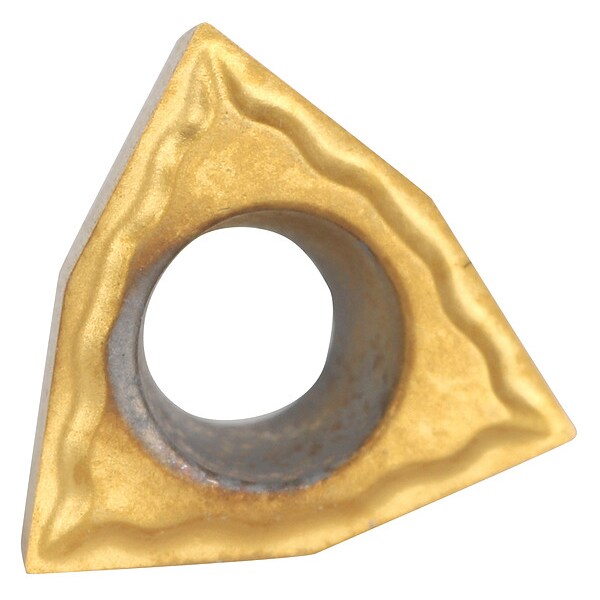

Insert, Trigon, 1.5, WPHT, .2, Carbide
| Item | Insert |
|---|---|
| Insert Shape | Trigon |
| Insert Style | WPHT |
| Inscribed Circle | 1.5 |
| Insert Size | 0.1875" |
| Chip-Breaker | Yes |
| Grade | CG5 |
| Corner Radius | .2 |
| Insert Material | Carbide |
| Rake | Positive |
| ISO Number | WPHTS30101 |
| Cutting Direction | Neutral |
| Coating | TiN |
| Insert Thickness | 0.062 in |
| Shape | Trigon |
| Coating Process | PVD |
| Included Angle | 80 Degrees |
| Clearance Angle | 11 deg |
| Cutting Edge Length | 3.26 mm |
| Primary Material Application ISO Code | P, M, S, N |
| Number of Cutting Edges | 3 |
| Thickness | 1 |
| Cutting Application | Outside and Inside Diameter Turning |
| Manufacturer Grade | CG5 |
| Measurement System | Fractional Inch |
| Through Hole Inside Dia. | 0.085 in |
| Material - Machining | Carbide |
| Finish - Machining | TiN |
| ANSI Code | WPHT1510 |
| Chip-Breaker Style | On One Side |
| Secondary Material Application ISO Code | K |
| Primary Material Application | Titanium, Brass, Bronze, Copper, Magnesium, Nickel, Aluminum, Stainless Steel, Steel |
| Secondary Material Application | Cast Iron |
| Insert Holding Type | 40 Degrees to 60 Degrees Countersink Hole |
| Material | Carbide |
| Package Quantity | 1 |
