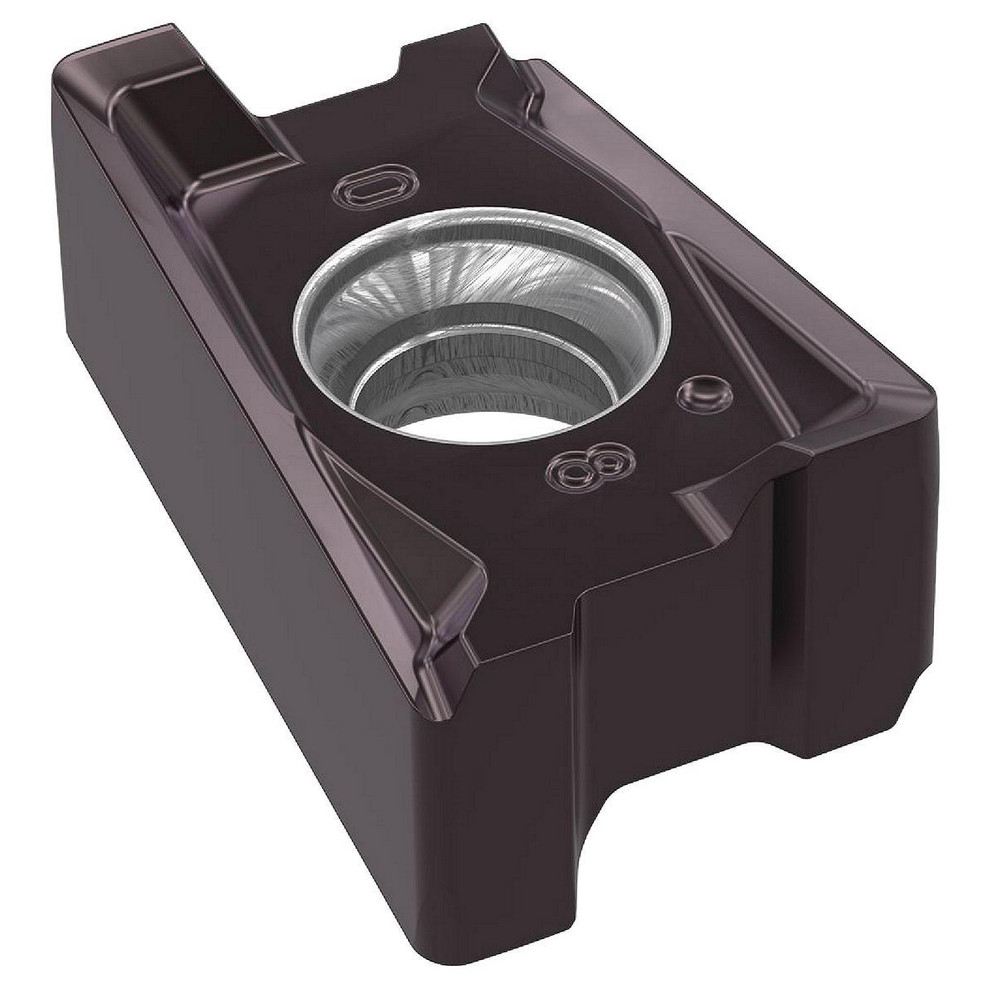

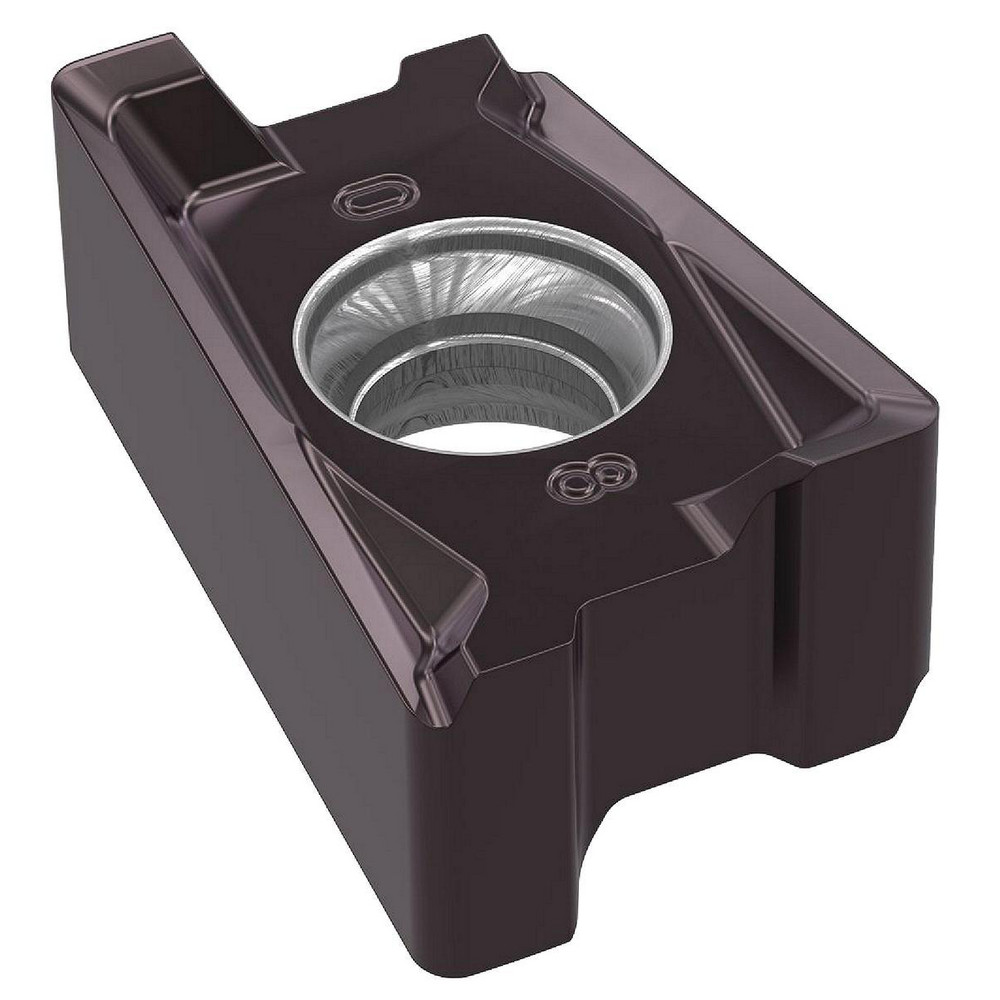

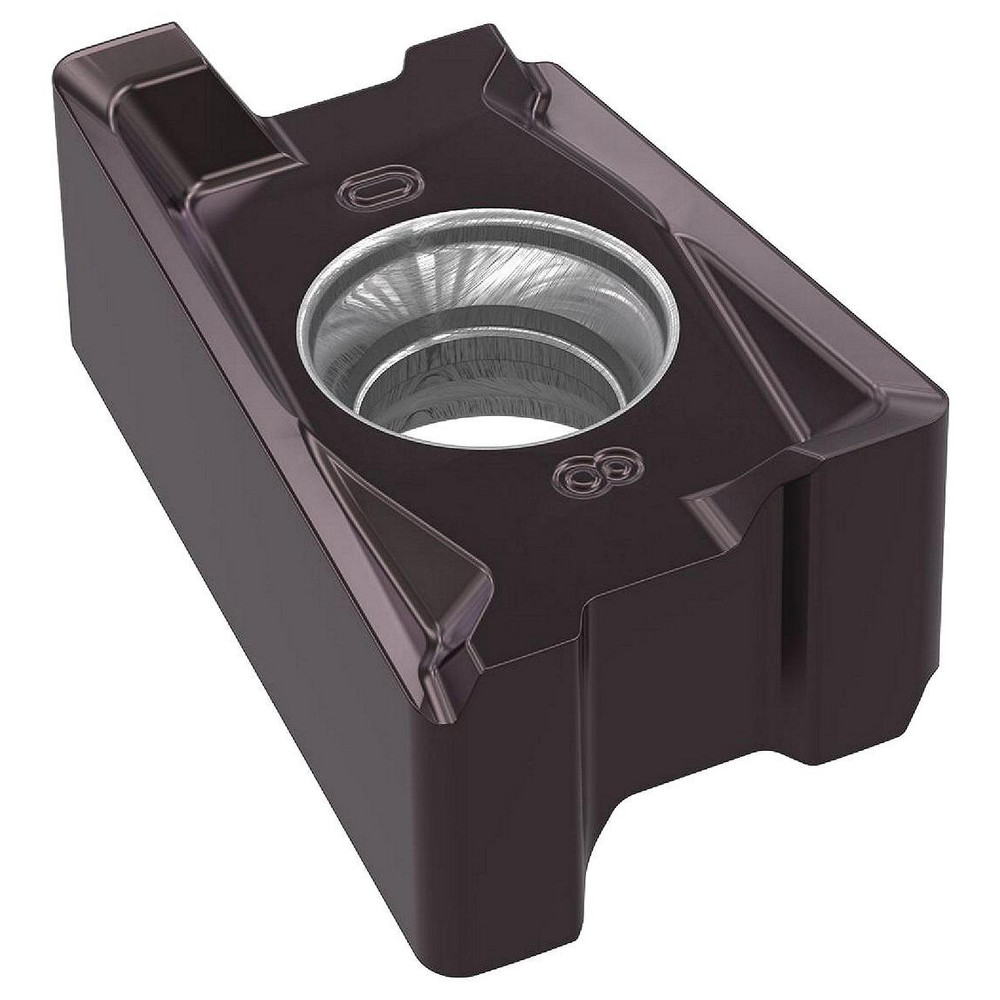

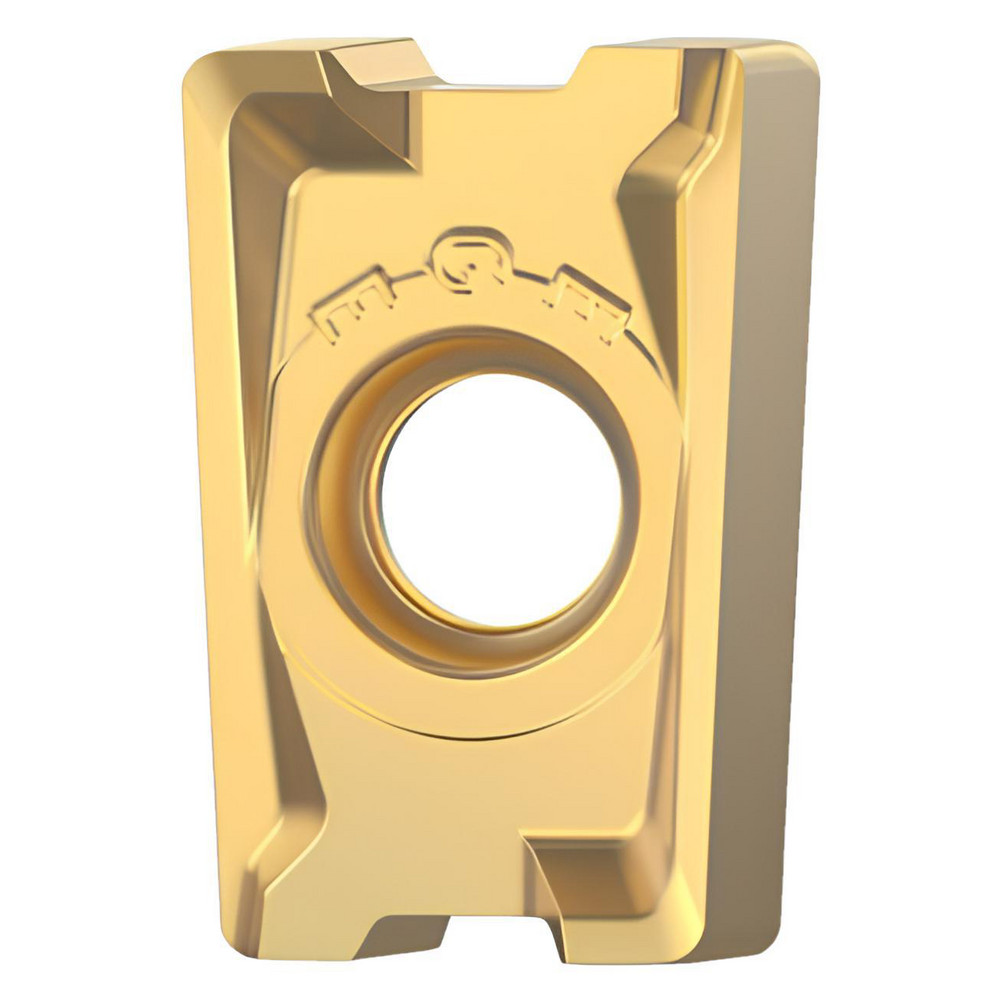

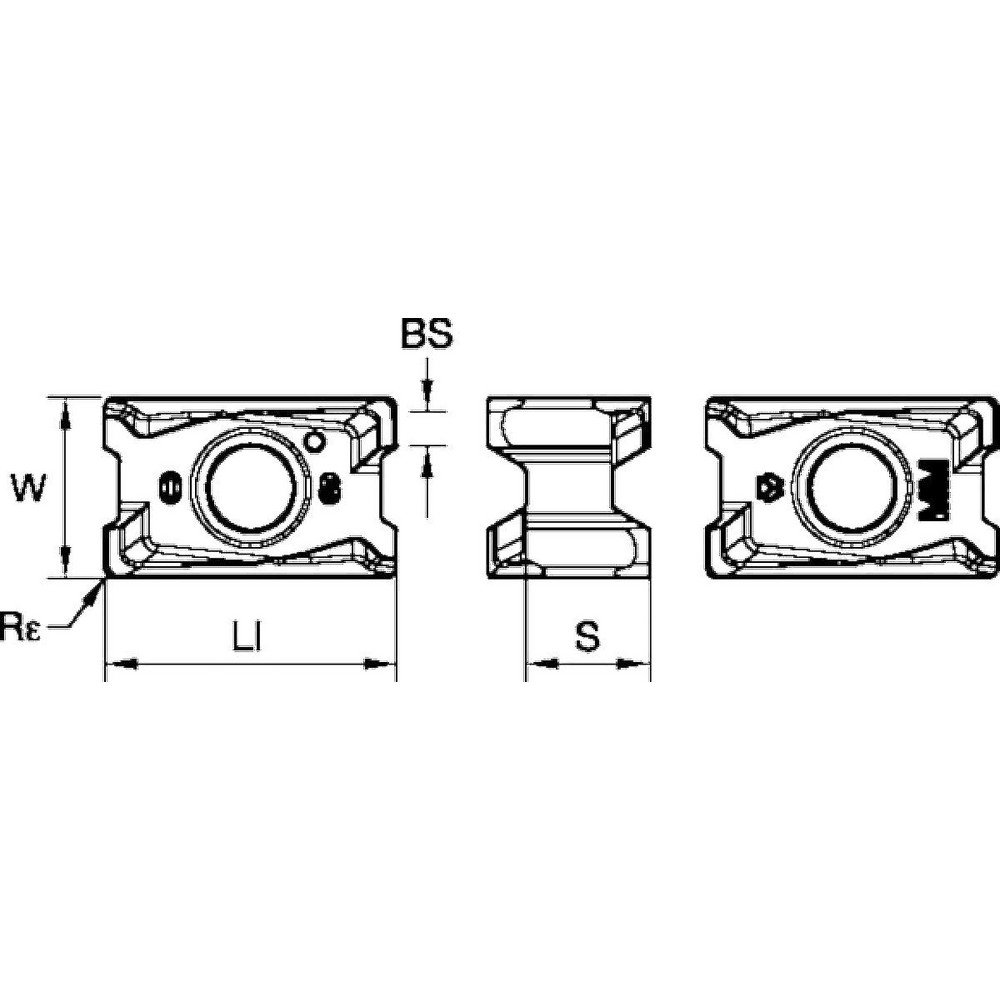

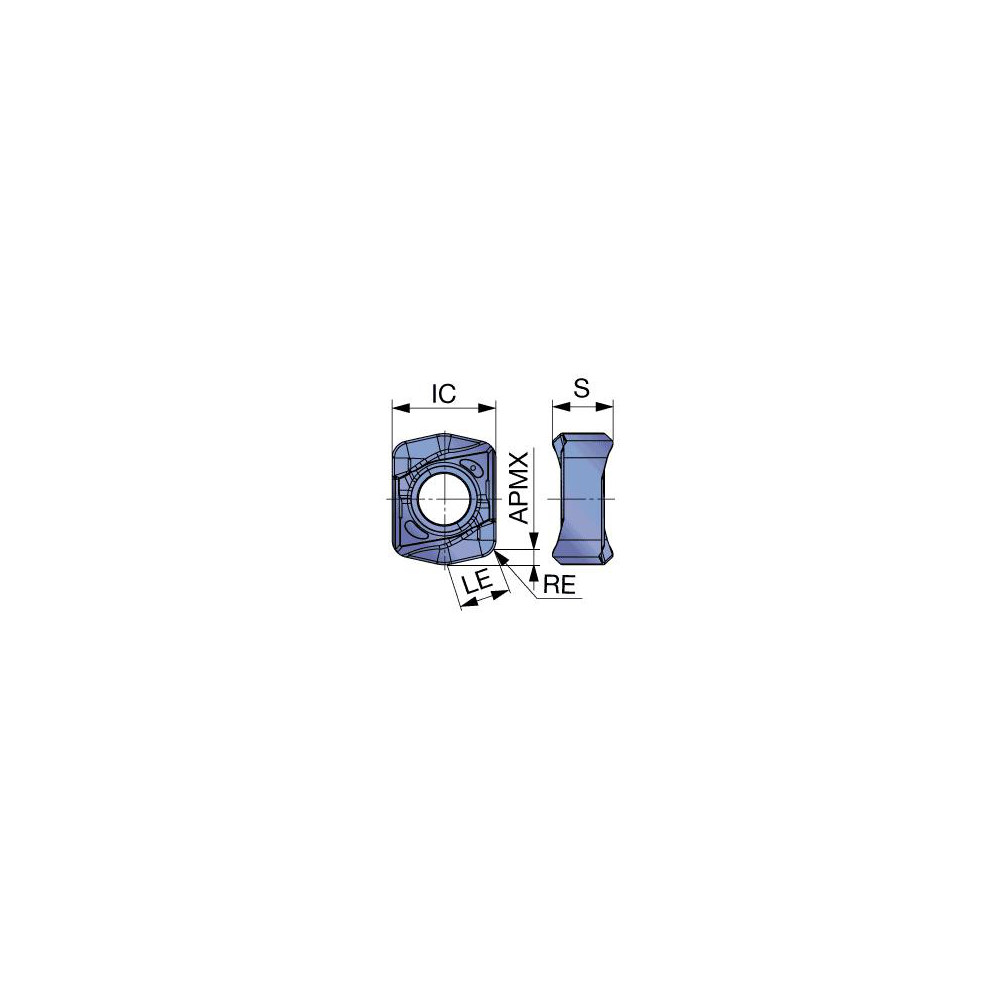

TiAlN & TiN Finish, 0.2710" Thick, 0.3940" Wide
| Insert Style | XNPU |
|---|---|
| Insert Size | 15 |
| Insert Material | Solid Carbide |
| Insert Shape | Rectangle |
| Manufacturer Grade | WS40PM |
| Corner Radius (Decimal Inch) | 0.0320 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2710 |
| Coating/Finish | TiN; TiAlN |
| Relief Angle | 0.00 |
| Insert Size Code | 1502 |
| Inscribed Circle (Decimal Inch) | 0.3940 |
| Inscribed Circle (mm) | 10.00 |
| Thickness Range (Decimal Inch) | 0.2500 to 0.3500 |
| Corner Radius (Inch) | 1/32 |
| Length Range (Decimal Inch) | 0.6000 to 0.6500 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.6020 |
| Series | VSM490-15 |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1831 |
| Rake | Negative |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium |
| Primary Workpiece Material Code | S; M |
| Secondary Workpiece Material | Steel |
| Secondary Workpiece Material Code | P |
| Ansi Code | XNPU1502SRMM |
| Iso Code | XNPU15T608SRMM |
| Standards | ISO; ANSI |
| Cutting Edge Style | Honed; Chamfered |
| Manufacturers Catalog Number | XNPU1502SRMM |
| Cutter Series Compatibility | VSM490 |
| Chip Breaker | MM |
| UNSPSC Code | 23291601 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.3940 |
| Width (mm - 2 Decimals) | 10.00 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6340 |
| Country of Origin | Germany |
| MSC Number | MSC# 50597533 |
