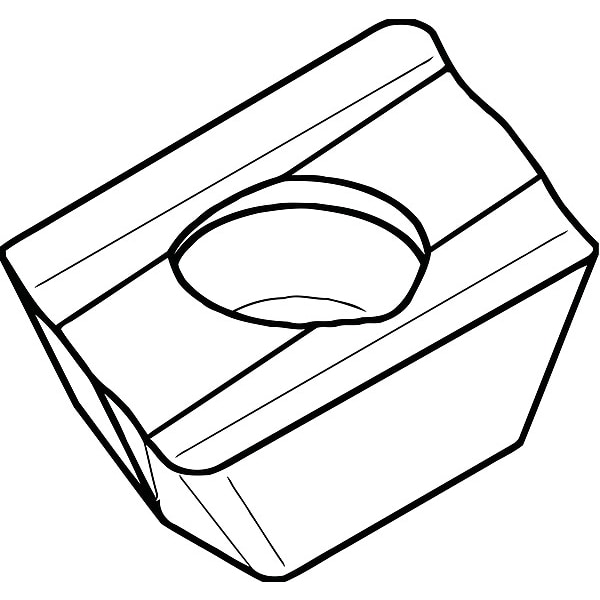

Parallelogram XPHT Carbide
| Item | Parallelogram Milling Insert |
|---|---|
| Insert Style | XPHT |
| Insert Shape | Parallelogram |
| Insert Size | 160,416 |
| Insert Material | Carbide |
| Corner Radius | 1.6 mm |
| ISO Number | XPHT160416AL |
| Lead Angle | 45 deg |
| Rake | 20 Degrees |
| Grade | THM |
| Mounting Hole Dia. | 4.4 mm |
| Cutting Direction | Right Hand |
| Insert Thickness | 0.1835 in |
| For Use With | M680 Series 0 Degrees /90 Degrees Shoulder Mills |
| Mounting Style | Taper Screw |
| Chip-Breaker | Yes |
| Series | M680 |
| Secondary Material Application | Cast Iron, Nickel, Titanium |
| Width | 9.8 mm |
| Manufacturer Grade | THM |
| Thickness | 0.1835 in |
| Through Hole Inside Dia. | 4.4 mm |
| Cutting Edge Length | 15.67 mm |
| Insert Holding Type | Screw Held |
| Material - Machining | Carbide |
| Finish - Machining | Bright |
| Chip-Breaker Style | On One Side |
| Included Angle | 80 deg |
| For Toolholder | M680D150Z04S075XP16, M680D200Z03S075XP16, M680D200Z04S075XP16, M680D200Z05S075XP16, M680D250Z03S100XP16, M680D250Z05S100XP16, M680D300Z03S100XP16, M680D300Z06S100XP16, M680D400Z04S125XP16, M680D400Z04S150XP16, M680D400Z07S125XP16, M680D400Z08S150XP16, M680D500Z05S150XP16, M680D500Z08S150XP16, M680D600Z06S200XP16, M680D600Z09S150XP16, M680D600Z10S200XP16, M680D800Z12S250XP16 |
| Chip-Breaker Code | AL |
| ANSI Code | XPHT160416AL |
| Primary Material Application ISO Code | N |
| Measurement System | Metric |
| Shape | Parallelogram |
| Clearance Angle | 11 deg |
| Number of Cutting Edges | 2 |
| Hole Type | 40 Degrees to 60 Degrees Countersink Hole |
| Secondary Material Application ISO Code | S, K |
| Primary Material Application | Aluminum, Brass, Bronze, Copper, Magnesium |
| Package Quantity | 1 |
