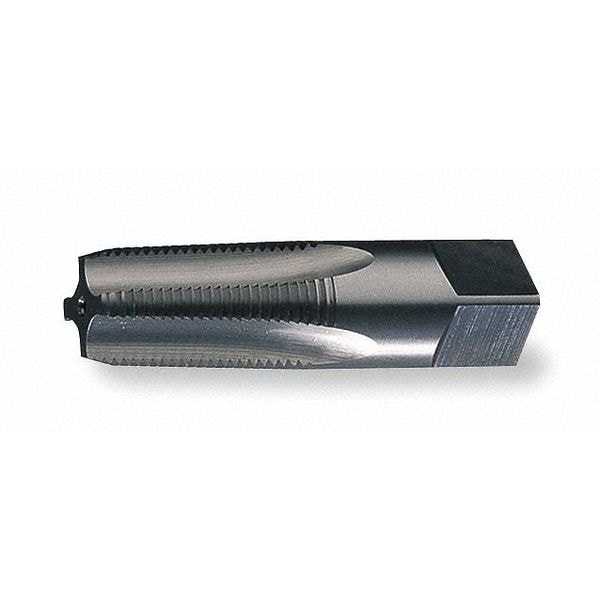

Pipe Tap, 1-1/4"-11-1/2, Taper, 5 Flutes, NPT
| Item | Pipe Tap |
|---|---|
| Tap Thread Size | 1-1/4"-11-1/2 |
| Tap Chamfer | Taper |
| Number of Flutes | 5 |
| Tap Thread Type | NPT |
| Number of Pieces | 1 |
| Tap Material | Vanadium High Speed Steel |
| Tap Dimension Type | Pipe |
| Standards | ANSI |
| Tap Size | 1-1/4" |
| Thread Length | 1-3/4 in |
| Tap Grouping | Tap |
| Tap Style | Pipe |
| List Number | 5,320 |
| Pitch Diameter Limit | Not Rated |
| Overall Length | 4 in |
| Shank Dia. | 1.313 in |
| Thread Direction | Right Hand |
| Tap Finish | Uncoated |
| Cutting Direction - Machining | Right Hand |
| Closeout | Yes |
| Series | 2320/5320 |
| Measurement System | Fractional Inch |
| Tap Length Standard | USCTI |
| Extended Neck | No |
| Helix Angle | 0 deg |
| Max. Projection | 0.686 in |
| Primary Material Application ISO Code | N |
| Square Size | 0.984 in |
| Tap Shank Standard | USCTI |
| Thread Size | 1-1/4"-11 1/2 |
| Thread Standard | NPTF |
| Shank Length | 2-1/4 in |
| Material Grade - Machining | 5320 |
| Primary Material Application | Brass, Bronze, Copper, Aluminum |
| Thread Limit | H2 |
| Drill Bit Size | 1-31/64 in |
| Interrupted Thread | No |
| Coolant Fed | Non-Coolant Through |
| Threads per Inch | 11.5 |
| 75% Thread Drill Size | 1-31/64 in |
| Size | 1-1/4" |
| Package Quantity | 1 |
