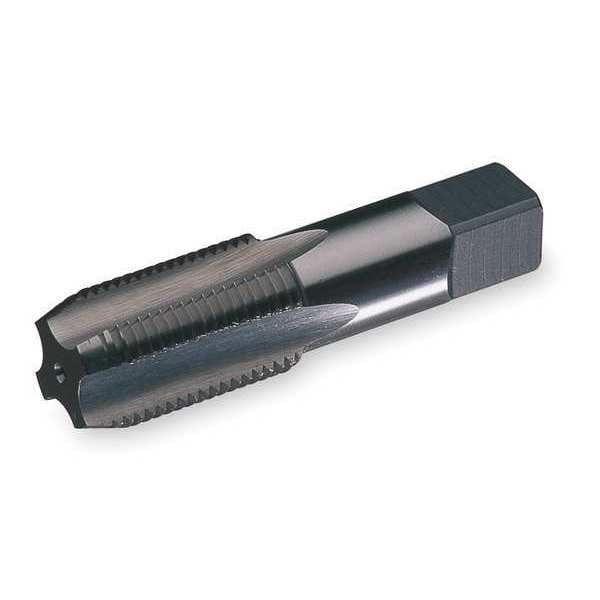

Pipe Tap, 1/8"-27, Taper, 4 Flutes, NPT
| Item | Pipe Tap |
|---|---|
| Tap Thread Size | 1/8"-27 |
| Tap Chamfer | Taper |
| Number of Flutes | 4 |
| Tap Thread Type | NPT |
| Tap Dimension Type | Pipe |
| Tap Style | Pipe |
| Thread Length | 3/4 in |
| List Number | 5,323 |
| Number of Pieces | 1 |
| Overall Length | 2-1/8 in |
| Tap Grouping | Tap |
| Tap Material | High Speed Steel |
| Pitch Diameter Limit | Not Rated |
| Thread Direction | Right Hand |
| Tap Finish | Uncoated |
| Standards | ANSI, USCTI, American National Dryseal Standard Straight Pipe |
| Tap Size | 1/8" |
| Shank Dia. | 0.437 in |
| Cutting Direction - Machining | Right Hand |
| Series | 5323 |
| Size | 1/8" |
| Coolant Fed | Non-Coolant Through |
| Threads per Inch | 27 |
| Secondary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Stainless Steel |
| Tap Shank Standard | USCTI |
| Primary Material Application | Steel |
| Square Size | 0.234 in |
| Max. Projection | 0.312 in |
| Extended Neck | No |
| Primary Material Application ISO Code | P |
| Thread Standard | NPSF |
| Thread Size | 1/8"-27 |
| Material Grade - Machining | 5323 |
| Helix Angle | 0 deg |
| Secondary Material Application ISO Code | K, N, M |
| Thread Limit | D7 |
| Shank Length | 1-3/8 in |
| Measurement System | Fractional Inch |
| 75% Thread Drill Size | Q |
| Tap Length Standard | USCTI |
| Interrupted Thread | No |
| Package Quantity | 1 |
