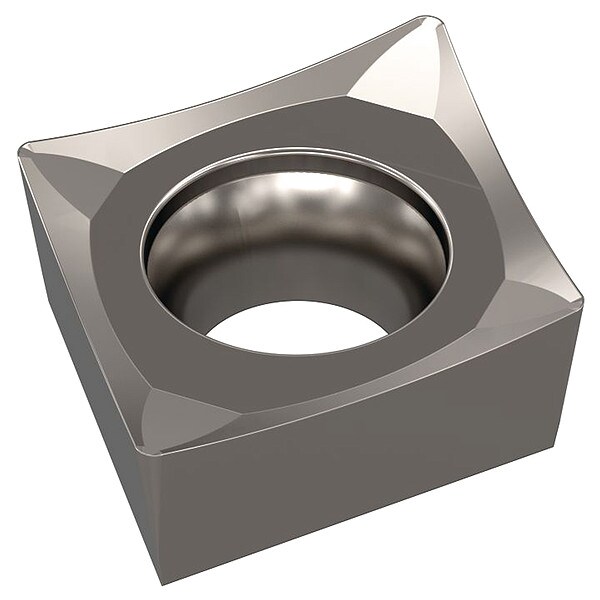

POSITIVE INSERT GEO AL, 3, CCGT, 2
| Item | POSITIVE INSERT GEO AL |
|---|---|
| Insert Style | CCGT |
| Inscribed Circle | 3 |
| Corner Radius | 2 |
| Rake | Positive |
| ISO Number | CCGT09T308AL |
| Cutting Direction | Neutral |
| Clearance Angle | 7 deg |
| Primary Material Application | Non-Ferrous |
| Secondary Material Application ISO Code | K, P, M, S |
| ANSI Code | CCGT3252AL |
| Standards | ANSI, ISO |
| Through Hole Inside Dia. | 0.1732 in |
| Finish - Machining | AlTiN |
| Measurement System | Decimal Inch |
| Chip-Breaker Code | AL |
| General Shape | Rhomboid |
| Shape | Rhomboid |
| Features | Highly Wear Resistance |
| Cutting Edge Length | 0.3808 in |
| Material Grade - Machining | Carbide |
| Thickness | 2.5 |
| Insert Holding Type | 3-Part Cycl with 40-60 TaperScrew |
| Depth of Cut | 0.1563 in |
| Coating Process | PVD |
| Cutting Application | Boring, Chamfering, Facing, Profiling, Turning |
| Material - Machining | Carbide |
| Secondary Material Application | Cast Iron, High-Temperature Alloys, Stainless Steel, Steel |
| Coolant Fed | Non-Coolant Through |
| Included Angle | 80 Degrees |
| Number of Cutting Edges | 2 |
| Primary Material Application ISO Code | N |
| Manufacturer Grade | WU05PT |
| Package Quantity | 1 |
