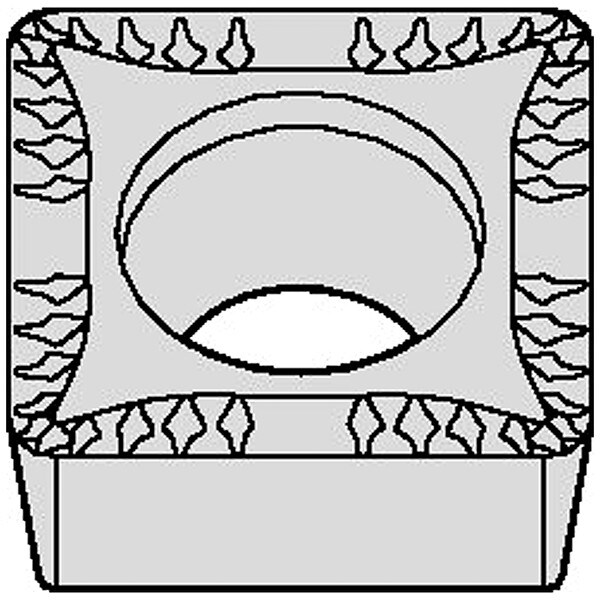

POSITIVE INSERT GEO MU, Square, 4, SCMT, 90 Degrees, 2
| Item | POSITIVE INSERT GEO MU |
|---|---|
| Insert Shape | Square |
| Insert Style | SCMT |
| Inscribed Circle | 4 |
| Chip-Breaker | Yes |
| Corner Radius | 2 |
| Rake | Positive |
| ISO Number | SCMT120408MU |
| Included Angle | 90 Degrees |
| Cutting Direction | Neutral |
| Cutting Edge Length | 1/2 in |
| Primary Material Application ISO Code | P, M, S |
| Thickness | 3/16 in |
| Measurement System | Decimal Inch |
| Depth of Cut | 0.1875 in |
| Finish - Machining | TiAlN |
| Material - Machining | Carbide |
| Manufacturer Grade | WU25PT |
| ANSI Code | SCMT432MU |
| Secondary Material Application | Cast Iron, Non-Ferrous |
| Clearance Angle | 7 deg |
| Secondary Material Application ISO Code | K, N |
| Chip-Breaker Code | MU |
| Shape | Square |
| Features | Tough, Ultra-Fine Grain |
| Cutting Application | Turning |
| Primary Material Application | High-Temperature Alloys, Stainless Steel, Steel |
| Coating Process | PVD |
| Number of Cutting Edges | 4 |
| Material Grade - Machining | Carbide |
| Package Quantity | 1 |
