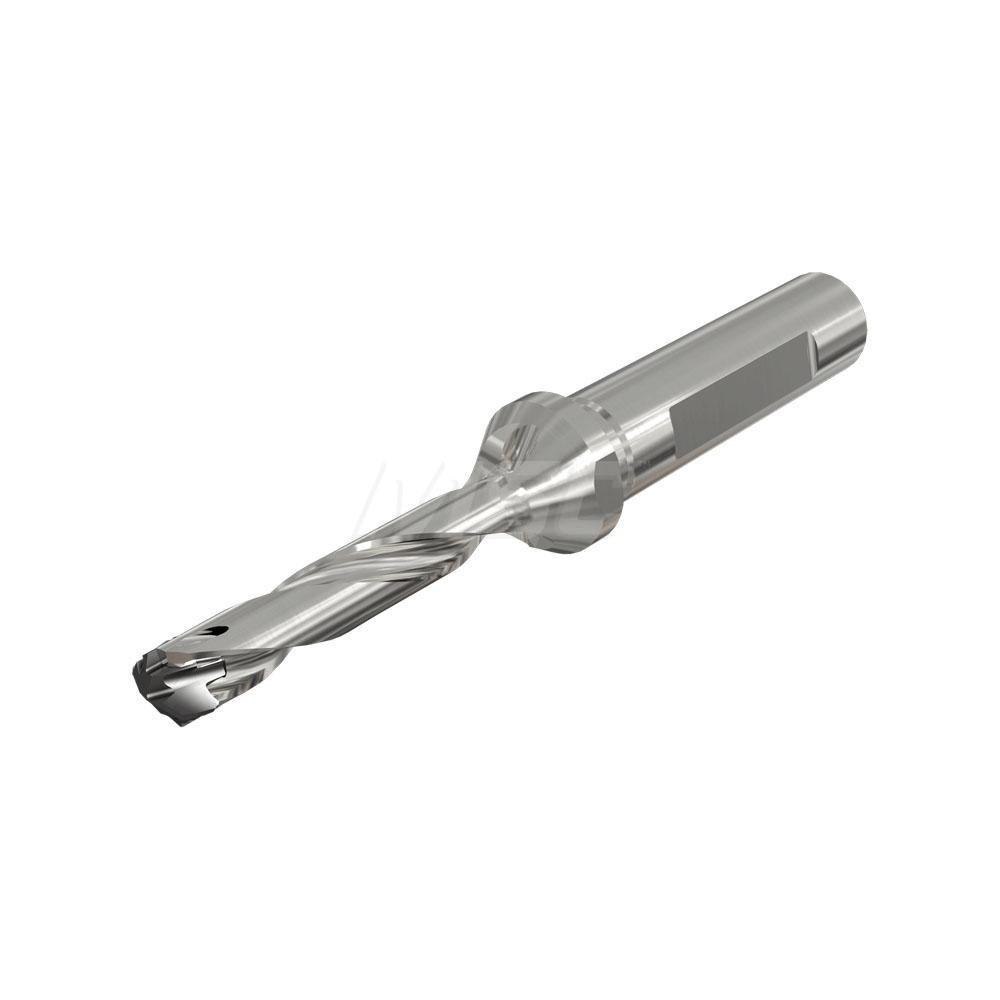

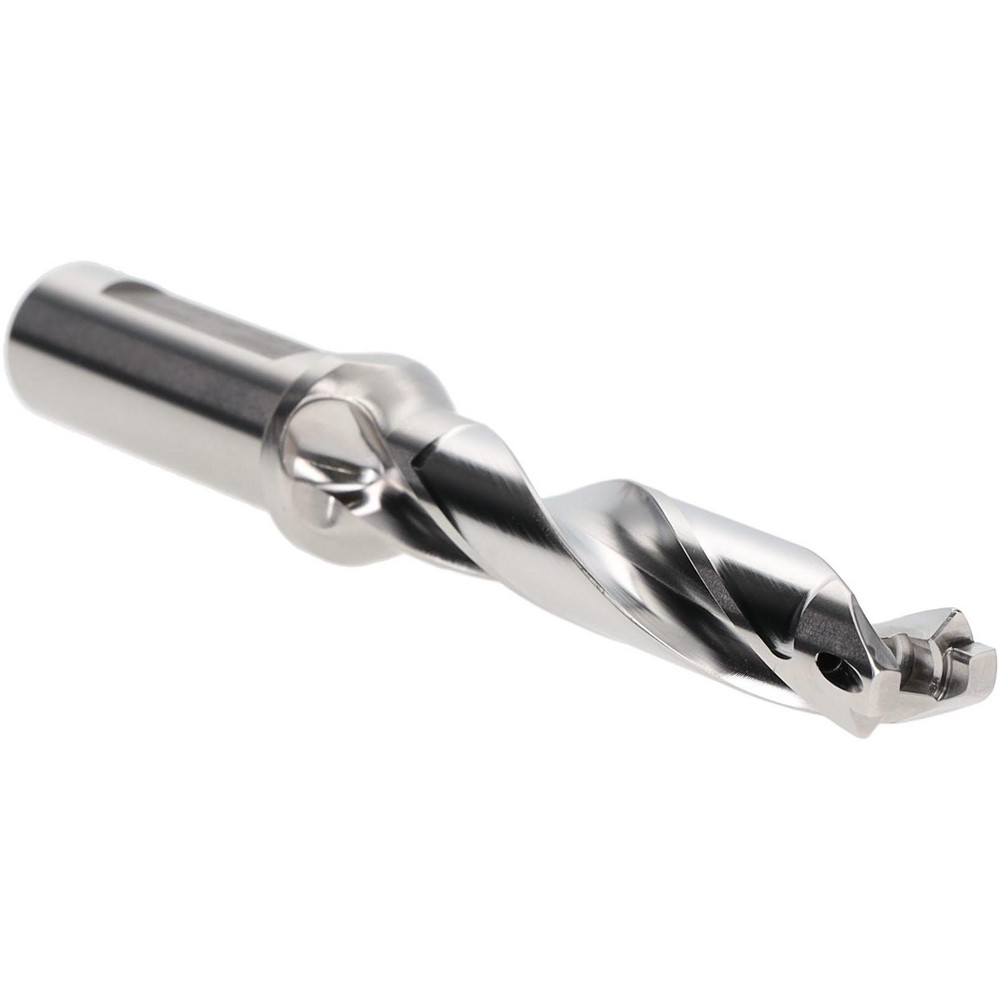

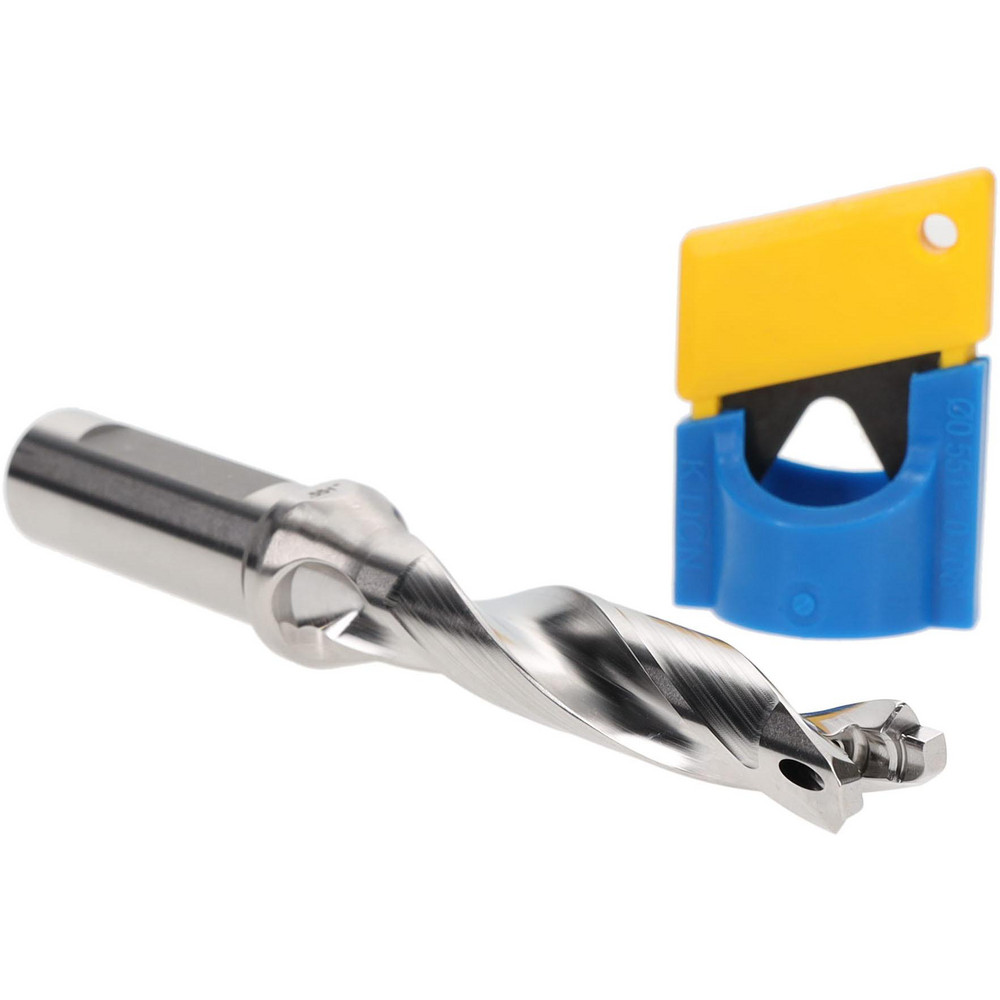

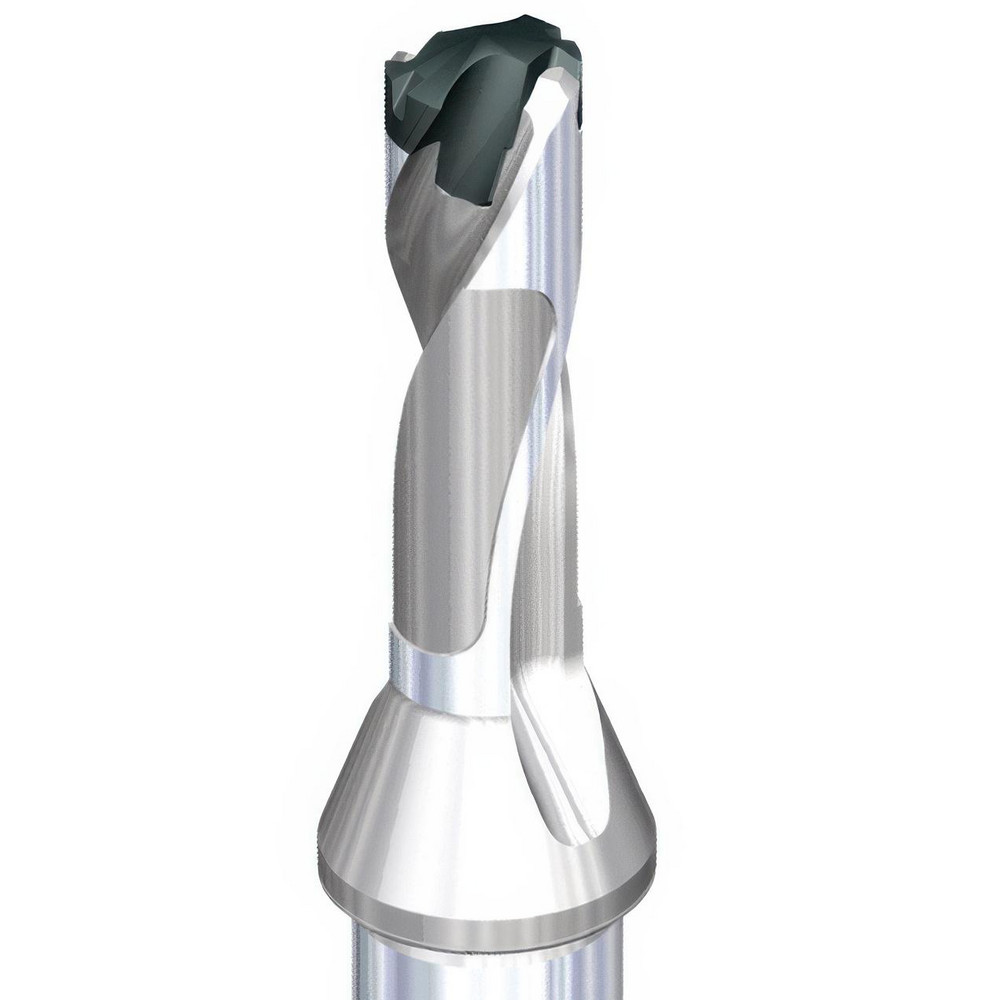

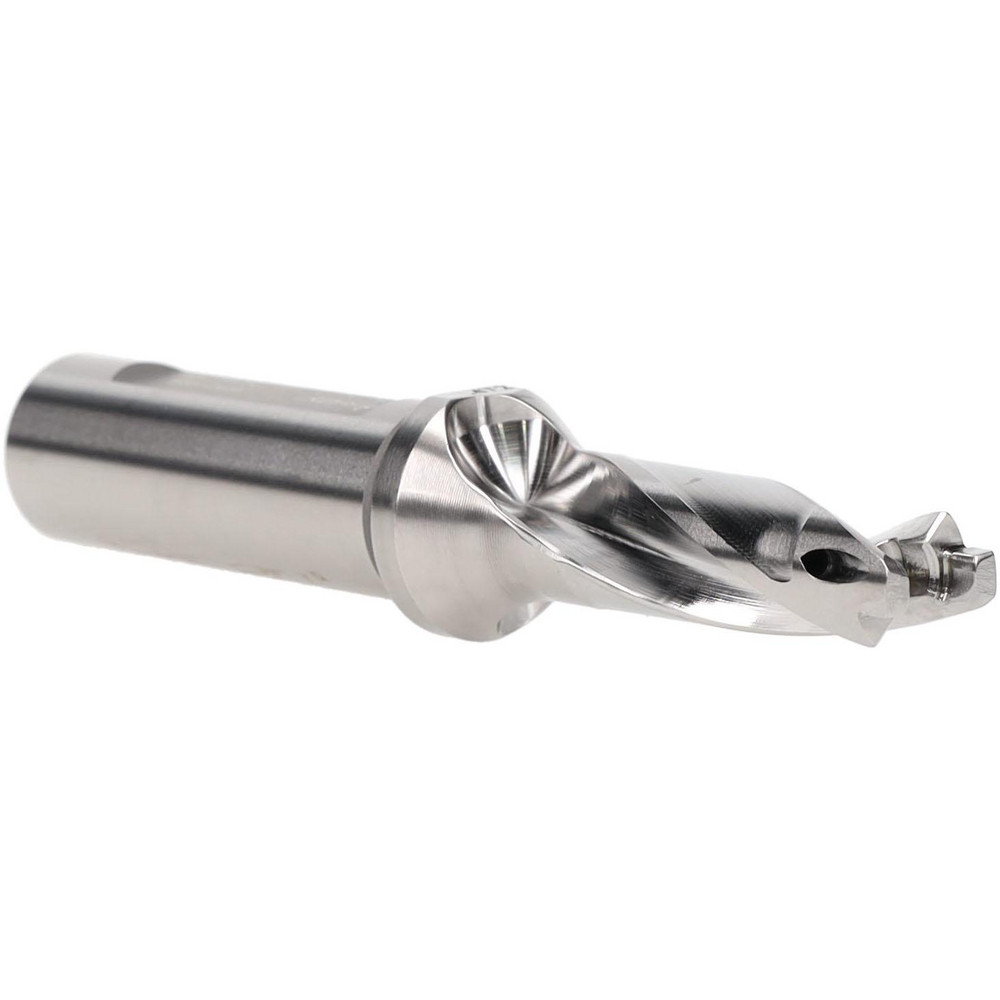

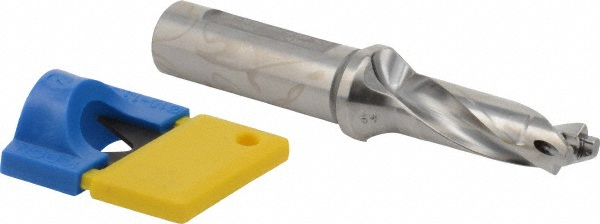

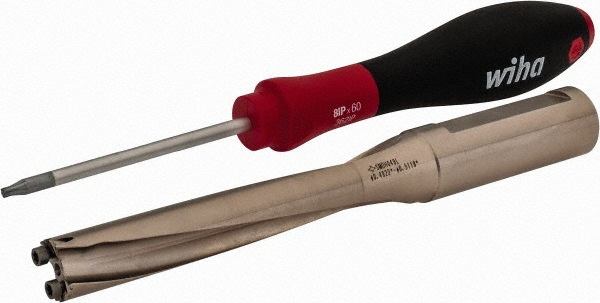

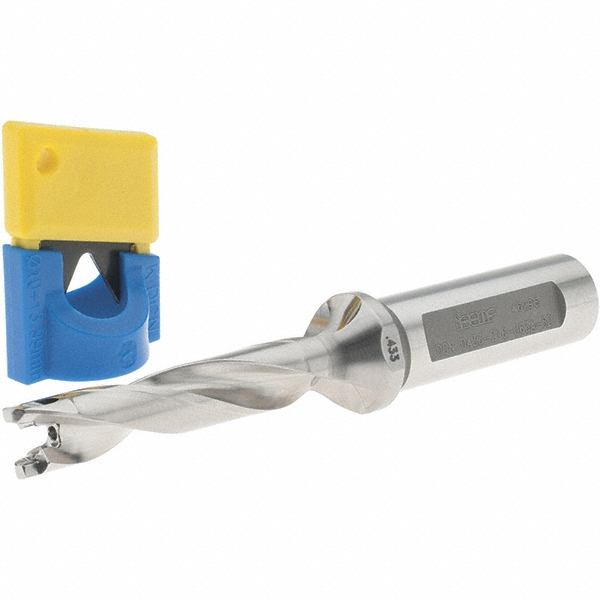

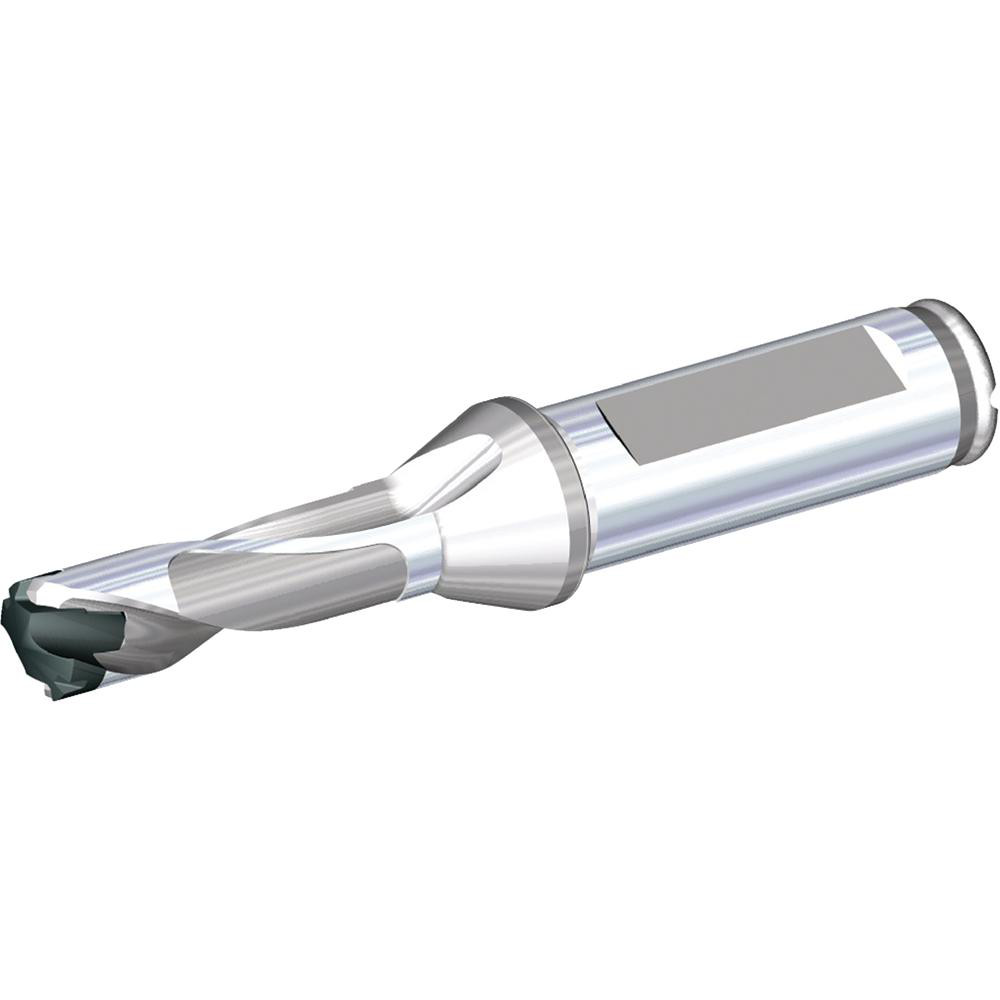

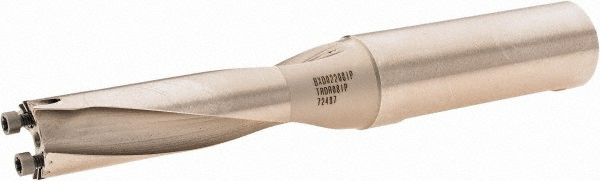

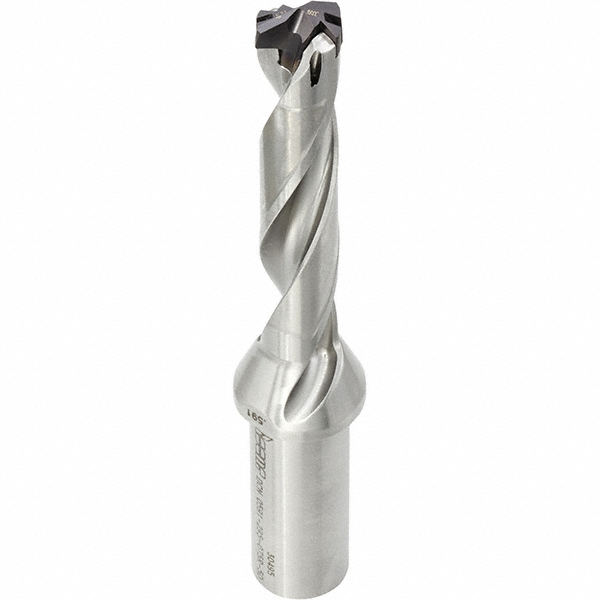

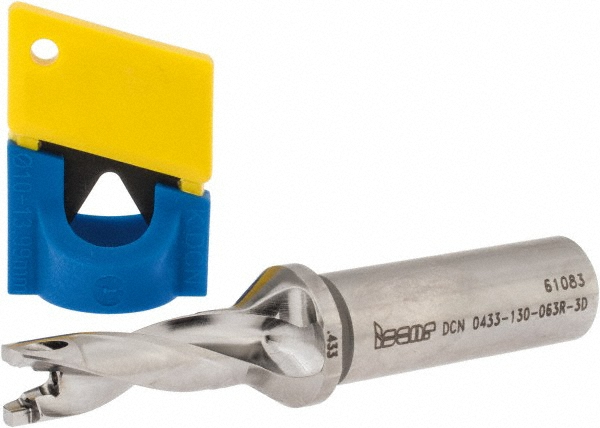

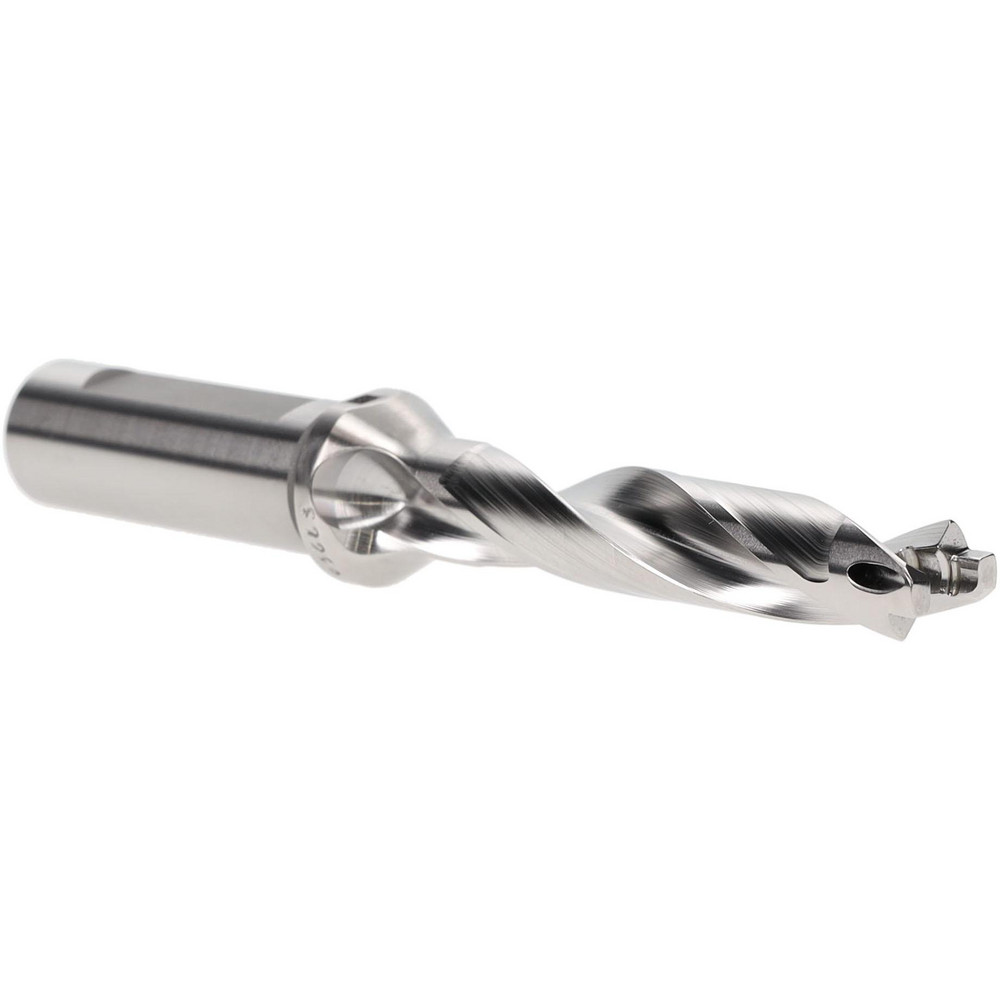

Uses TDM Inserts, Seat Size W19, 4-17/64" OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 0.4921 |
|---|---|
| Maximum Drill Diameter (Decimal Inch) | 0.5114 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 1.5353 |
| Shank Type | Flatted |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Seat Size | W19 |
| Tool Material | Steel |
| Compatible Insert Style | TDM |
| Overall Length (Decimal Inch) | 4.2648 |
| Overall Length (Inch) | 4-17/64 |
| Series | TDM1 |
| Toolholder Style | TDM1 |
| Flute Length (Decimal Inch) | 2.1585 |
| Body Length (Decimal Inch) | 2.1228 |
| Shank Length (Decimal Inch) | 1.8898 |
| Tool Application | Drilling |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 90311267 |
