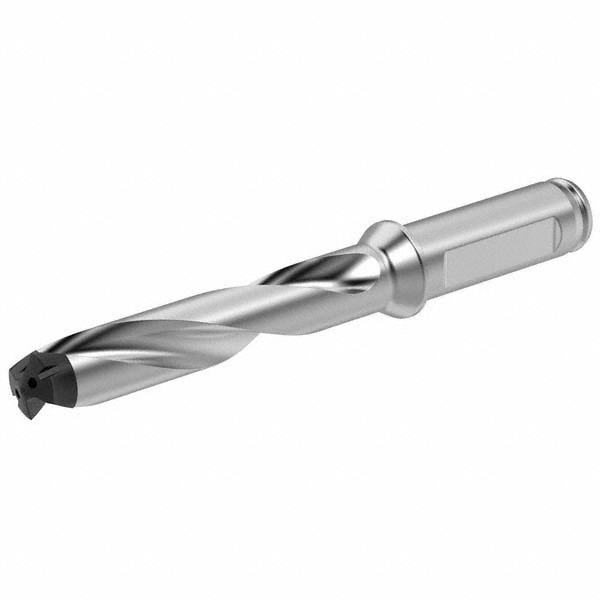

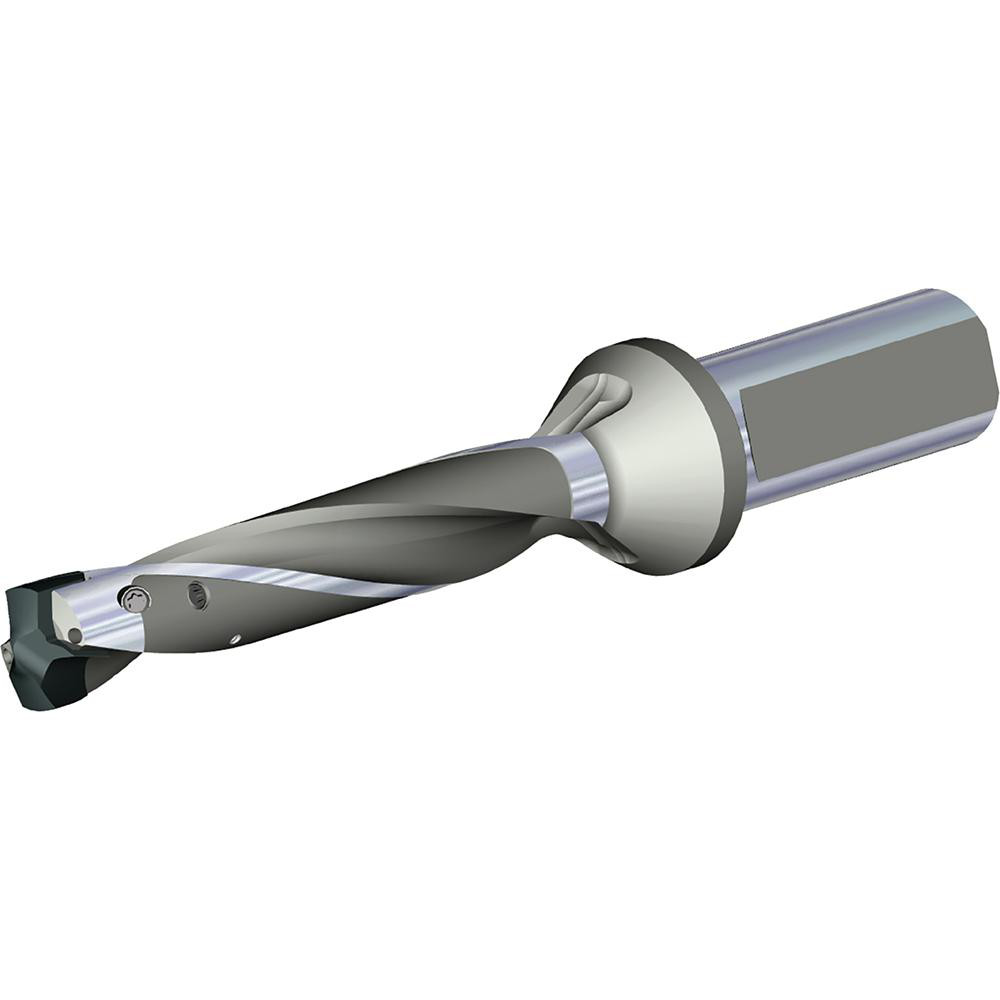

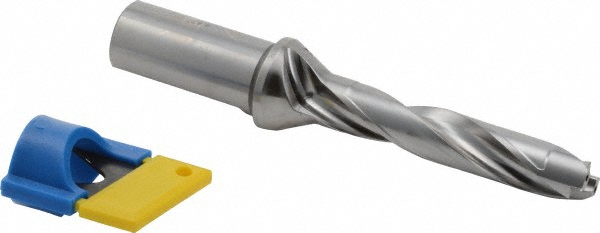

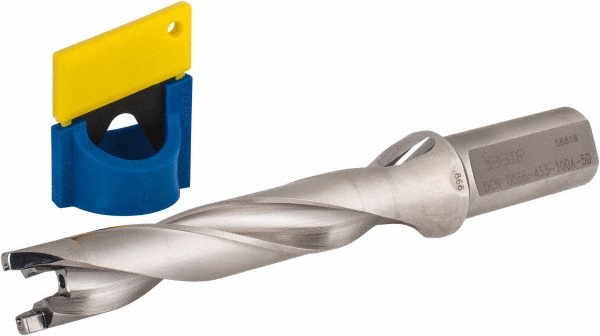

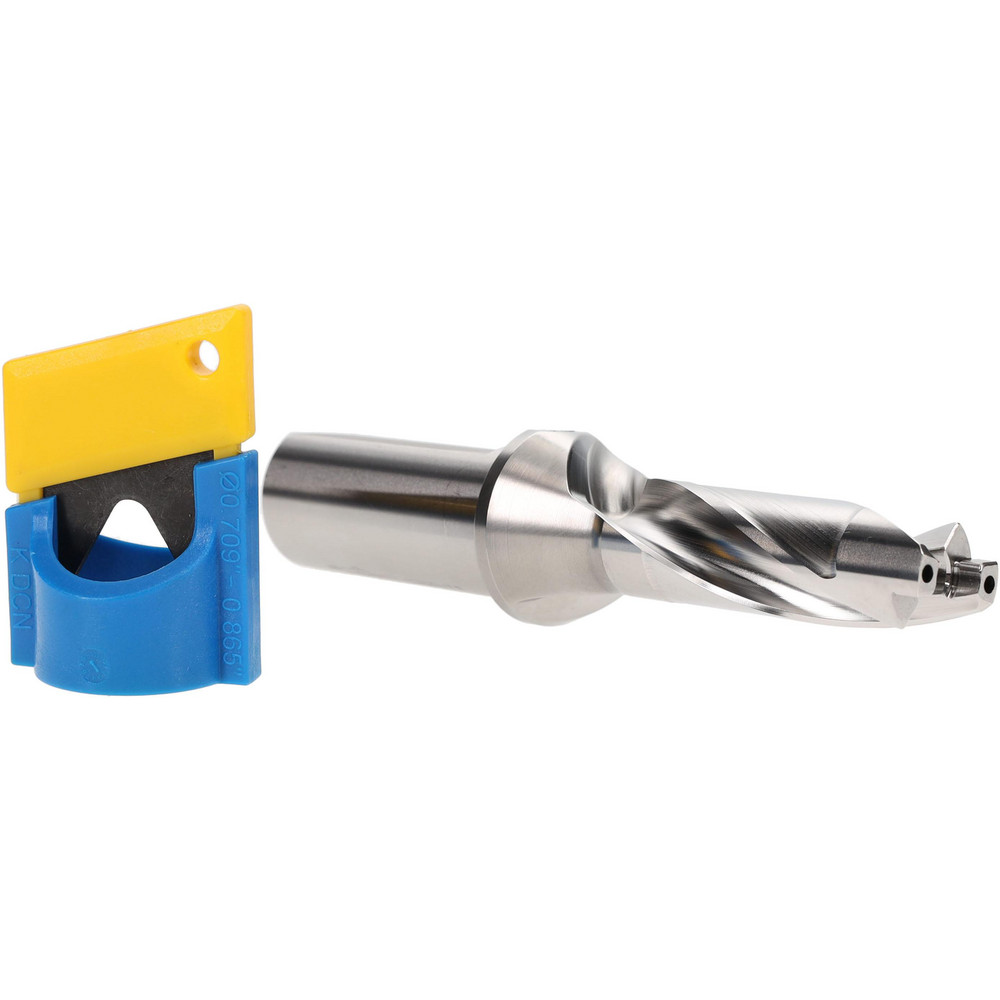

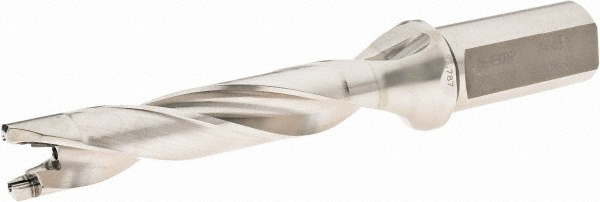

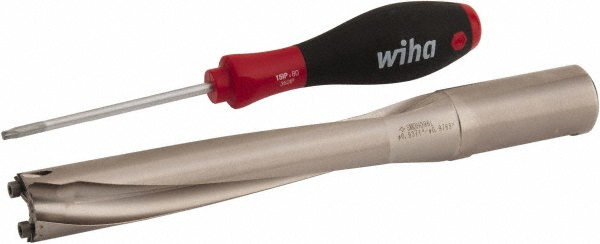

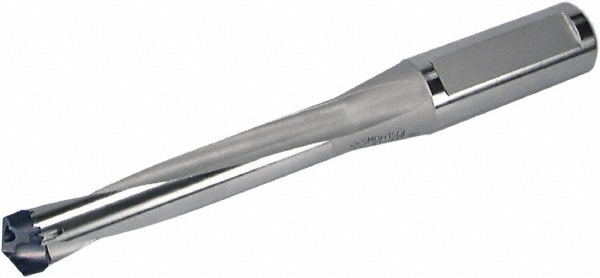

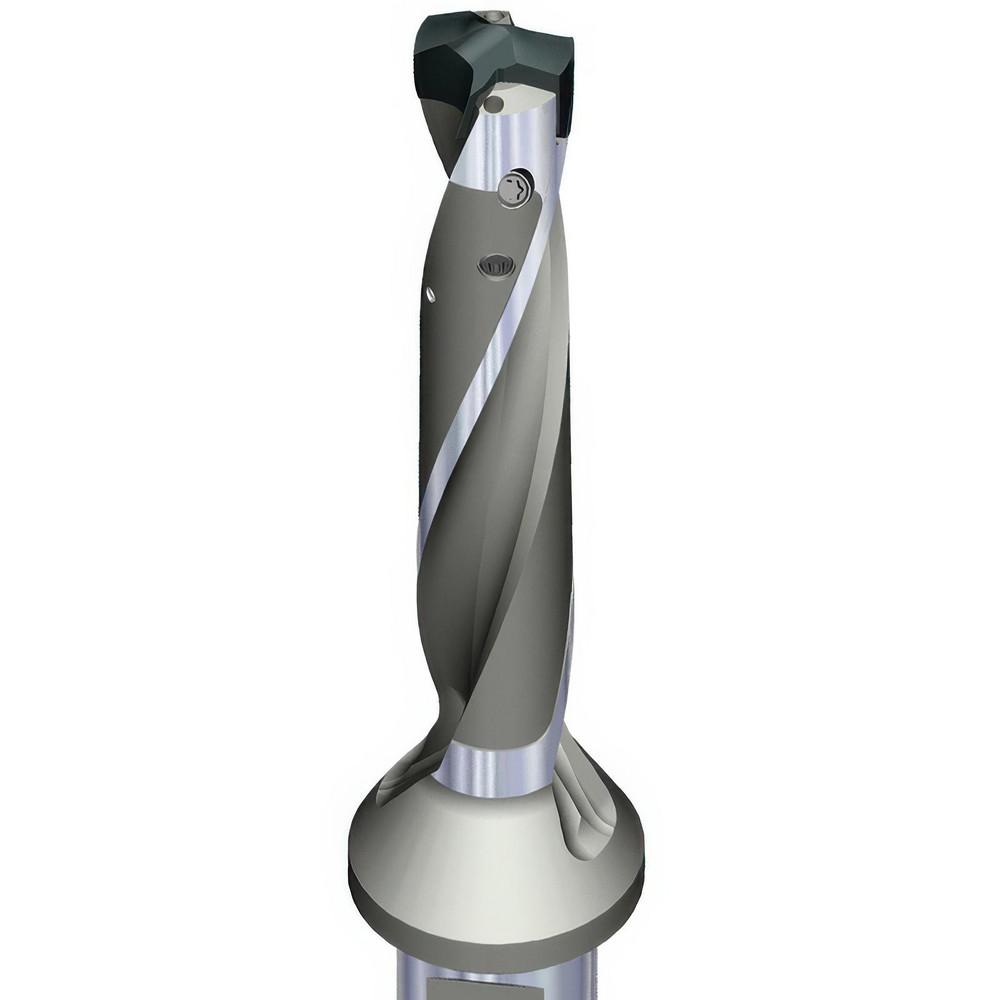

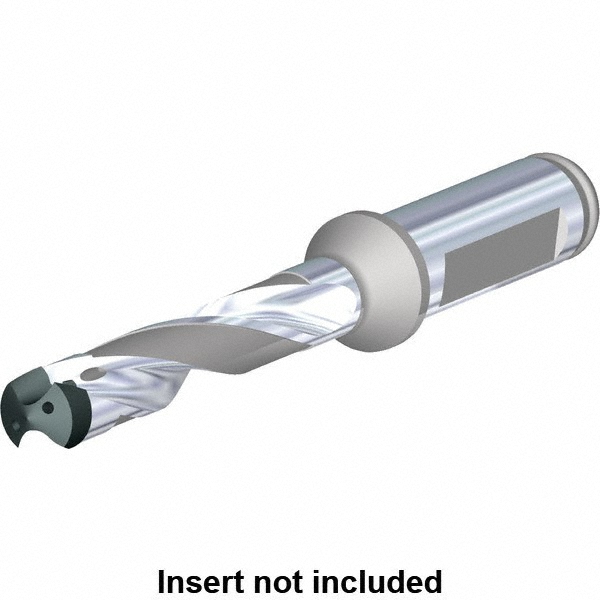

Uses TDMX Inserts, Seat Size E, 7.7559" OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 0.7875 |
|---|---|
| Maximum Drill Diameter (Decimal Inch) | 0.8267 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 4.1339 |
| Shank Type | Flatted |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Seat Size | E |
| Tool Material | Steel |
| Compatible Insert Style | TDMX |
| Overall Length (Decimal Inch) | 7.7559 |
| Series | TDMX |
| Toolholder Style | TDMX |
| Flute Length (Decimal Inch) | 4.1339 |
| Body Length (Decimal Inch) | 4.9843 |
| Shank Length (Decimal Inch) | 2.2047 |
| Tool Application | Drilling |
| Coolant Hole Diameter (Decimal Inch) | 0.1378 |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | Germany |
| MSC Number | MSC# 90307976 |
