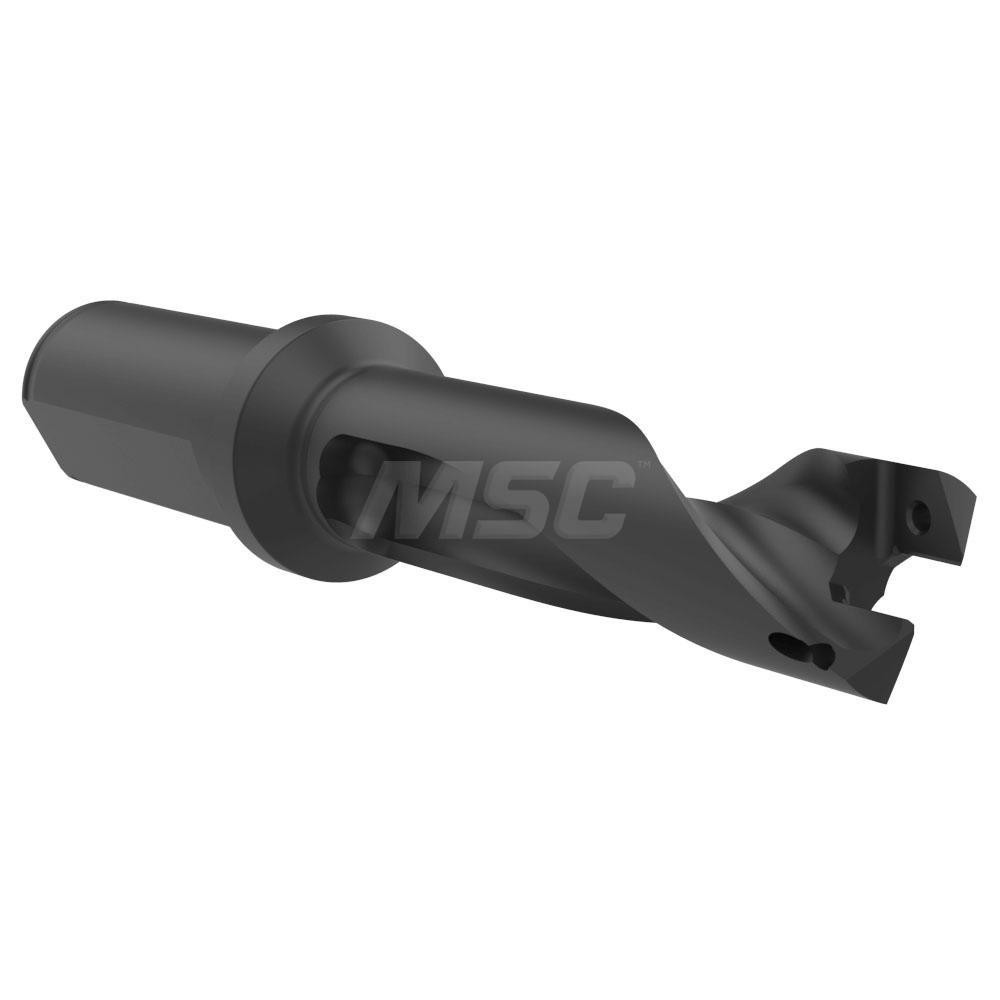

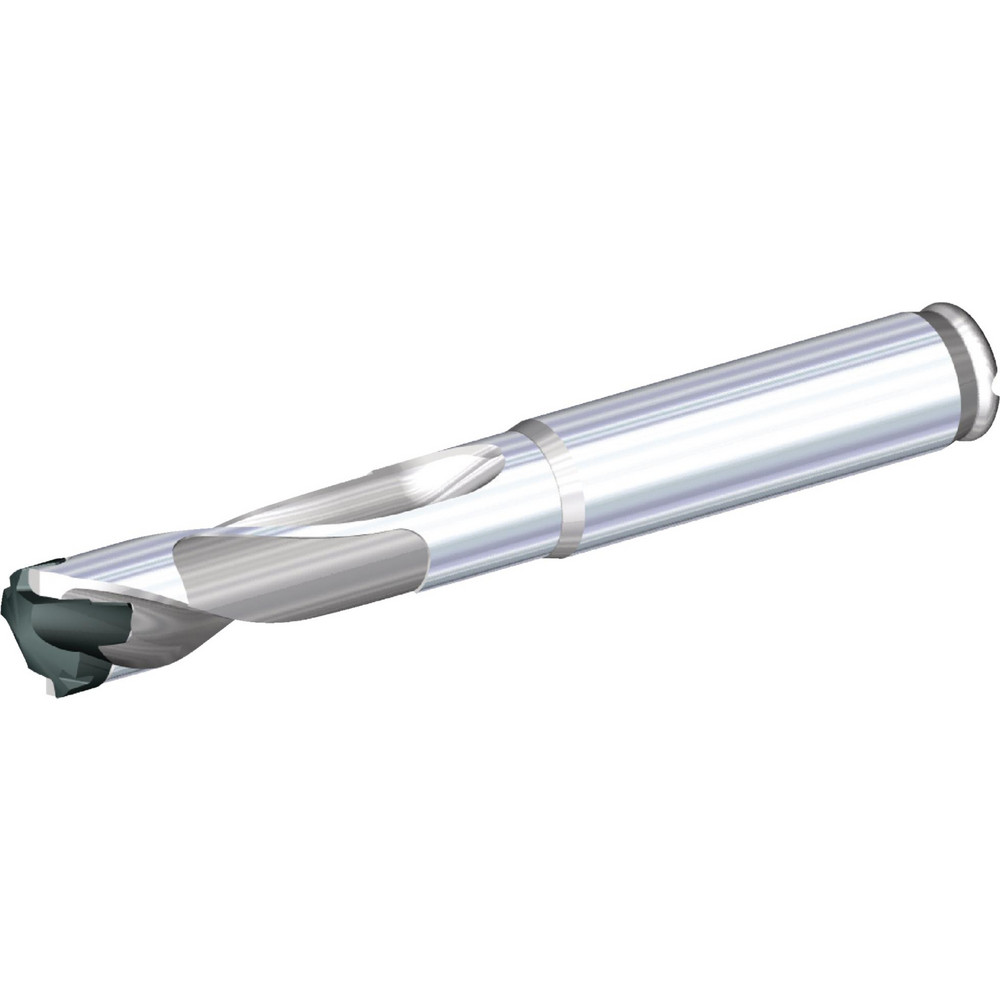

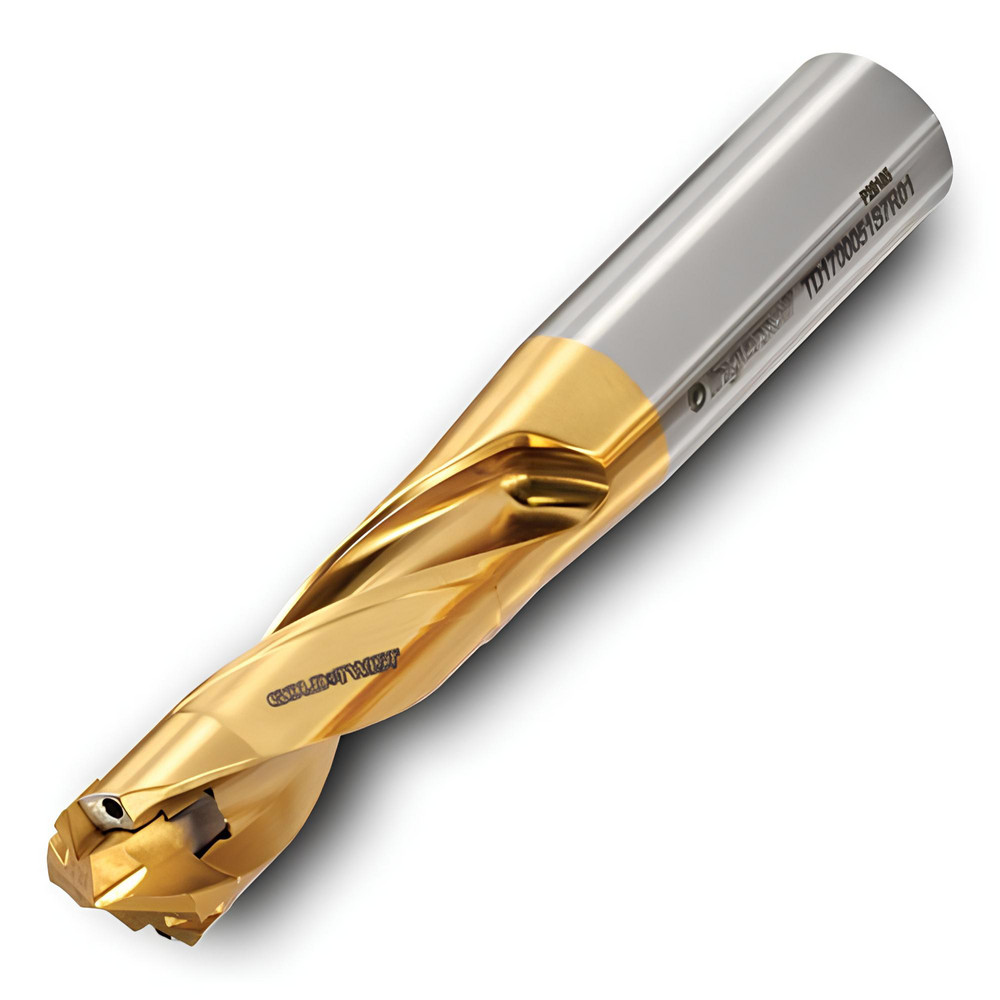

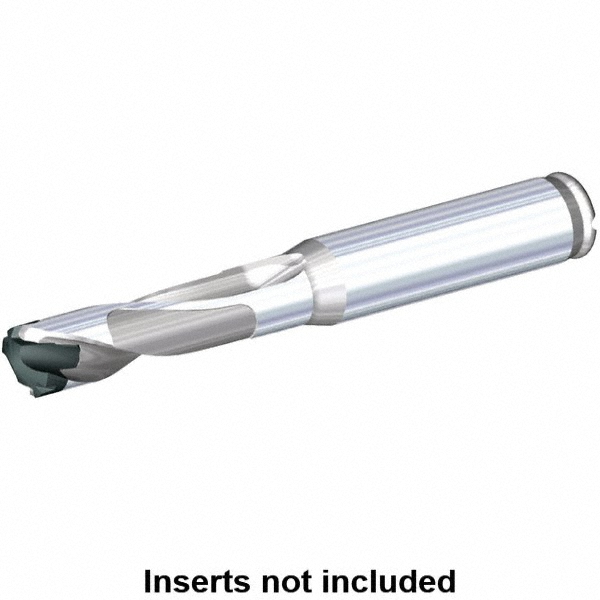

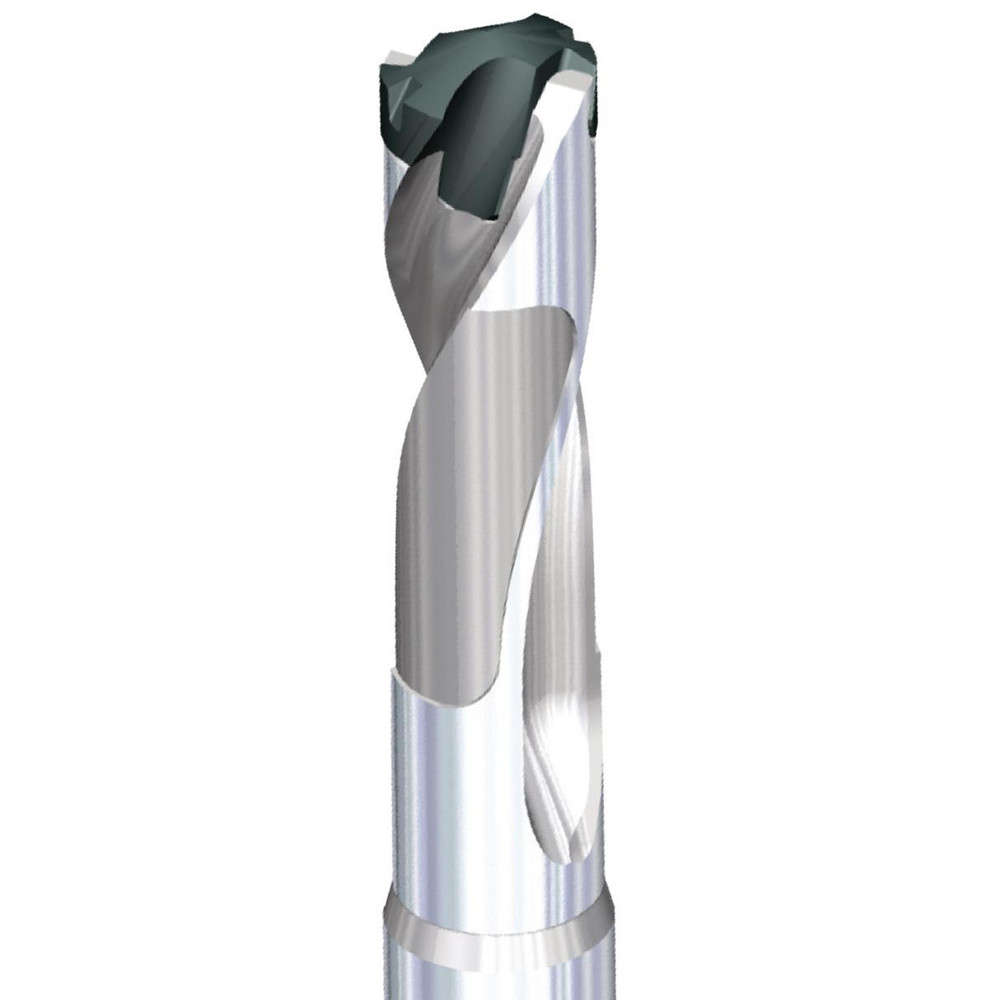

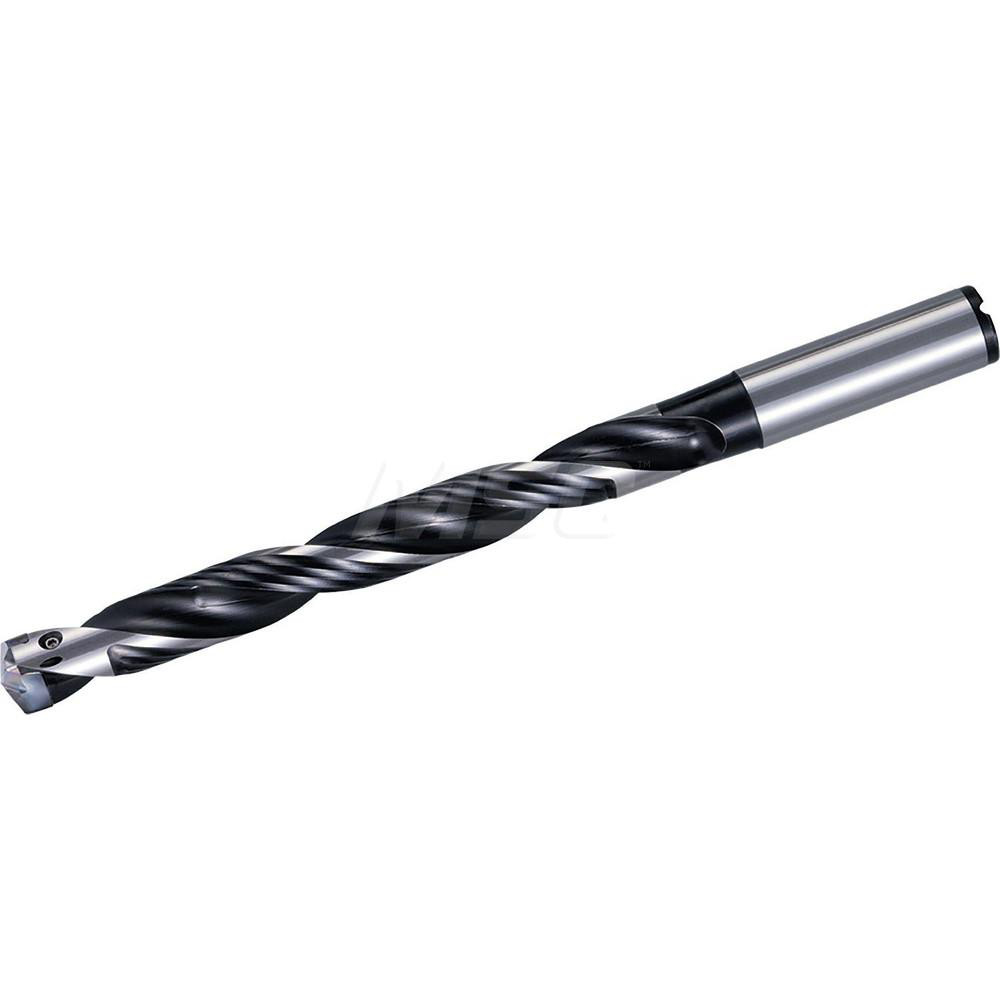

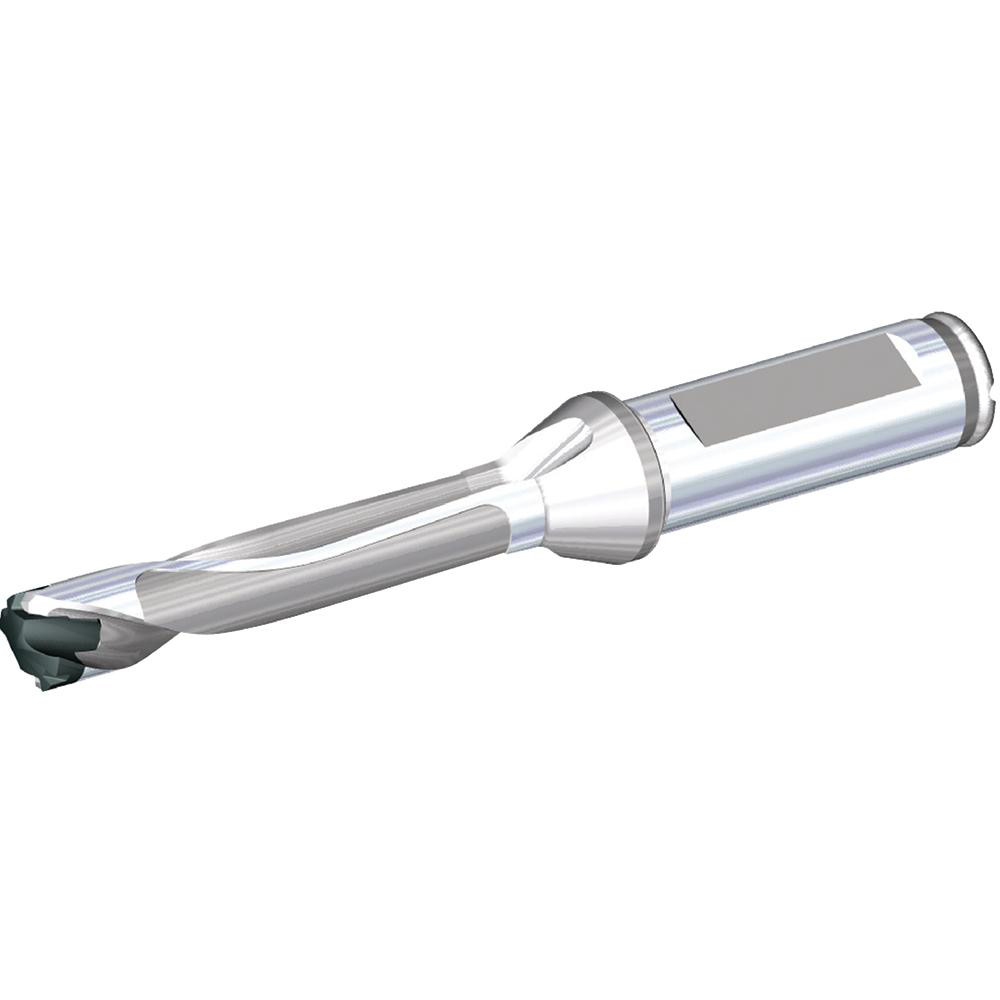

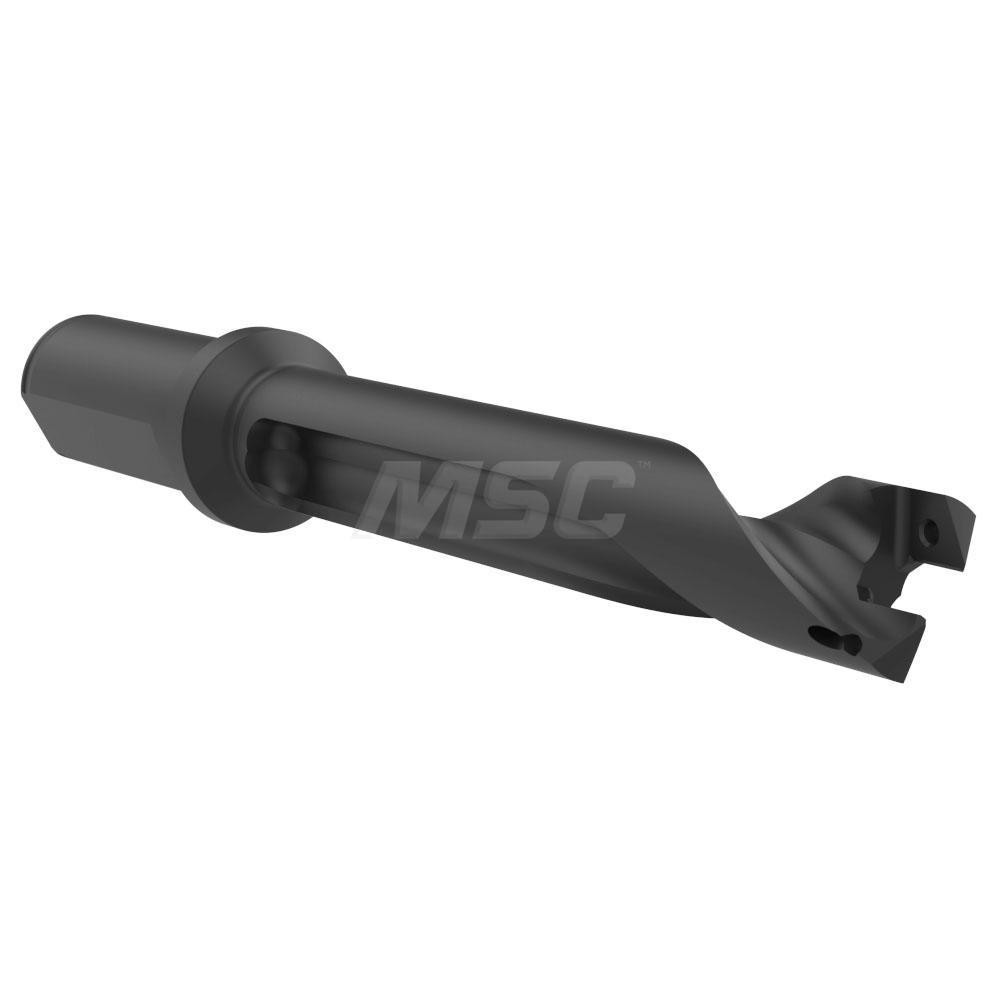

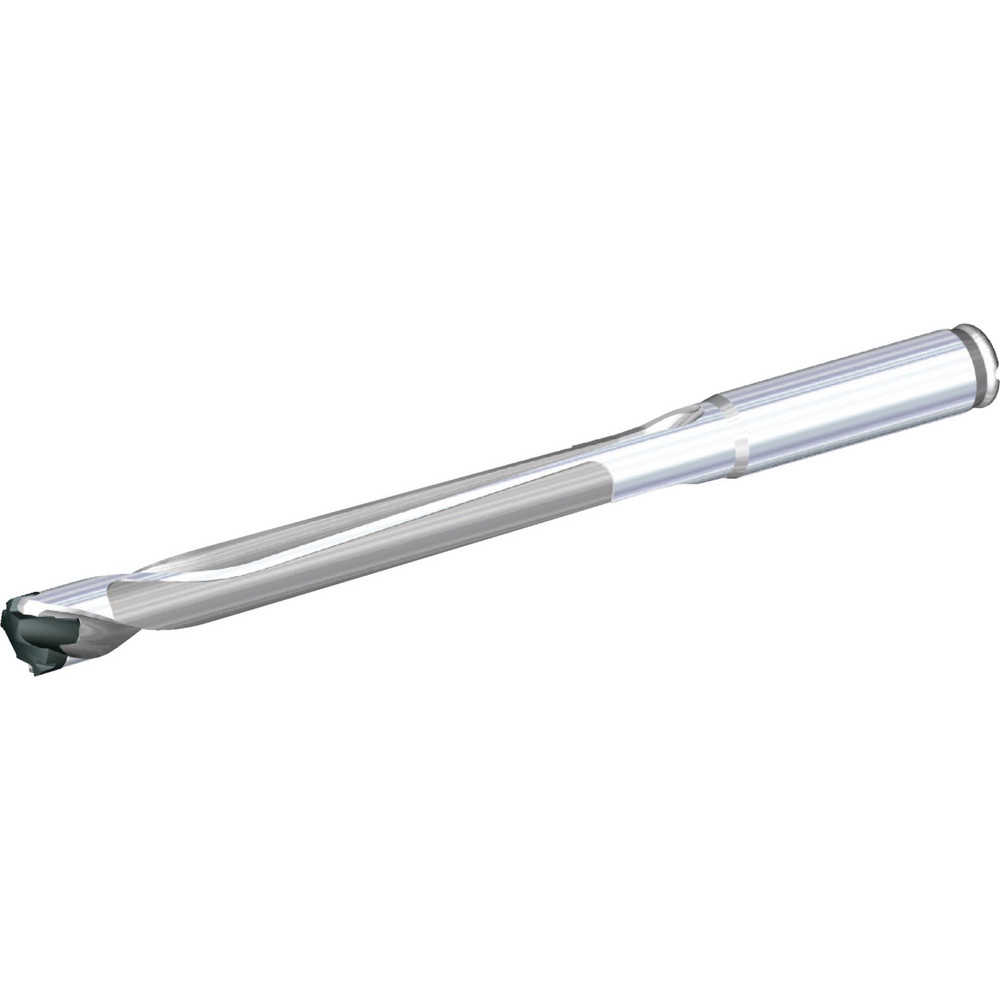

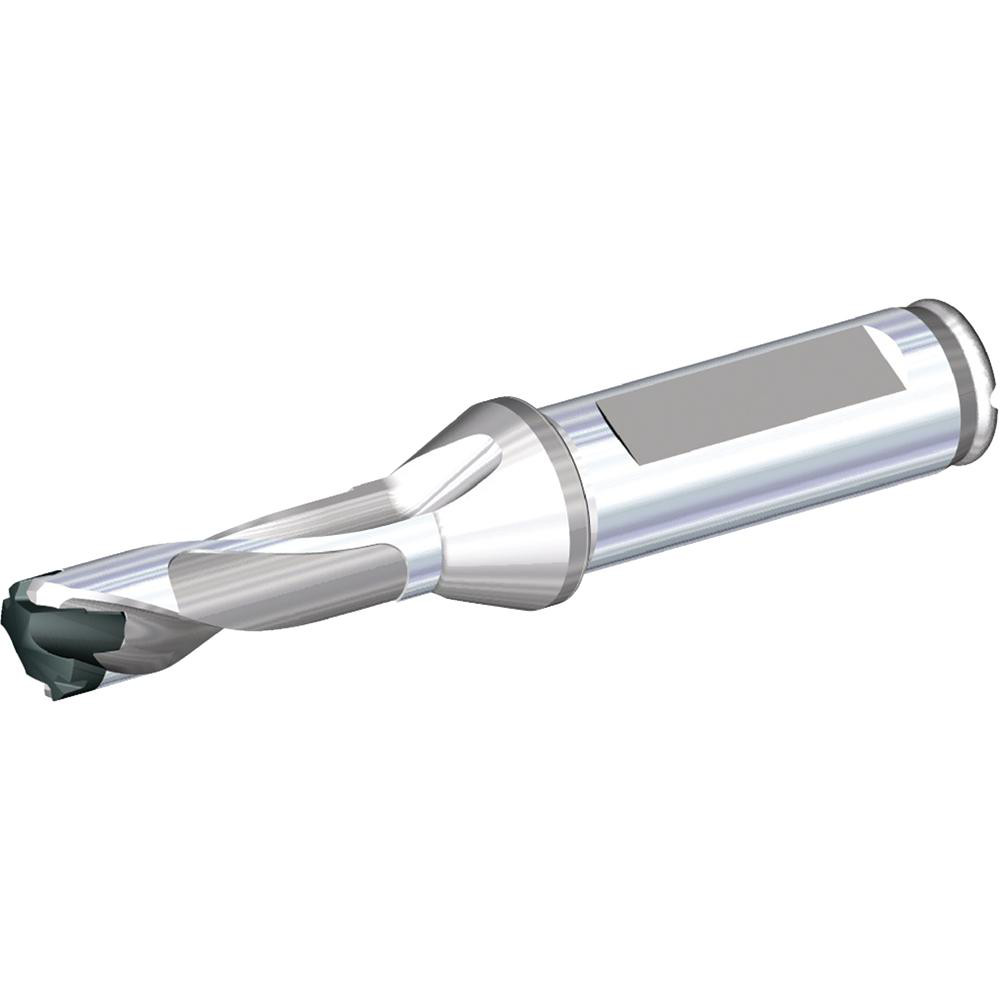

Uses TDM Inserts, Seat Size W31, 6" OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 0.8661 |
|---|---|
| Maximum Drill Diameter (Decimal Inch) | 0.9051 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 2.7165 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Inch) | 7/8 |
| Shank Diameter (Decimal Inch) | 0.8750 |
| Insert Seat Size | W31 |
| Tool Material | Steel |
| Compatible Insert Style | TDM |
| Overall Length (Decimal Inch) | 6 |
| Overall Length (Inch) | 6 |
| Series | TDM1 |
| Toolholder Style | TDM1 |
| Flute Length (Decimal Inch) | 3.8110 |
| Body Length (Decimal Inch) | 5.5591 |
| Shank Length (Decimal Inch) | 2.0700 |
| Tool Application | Drilling |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 90226739 |
