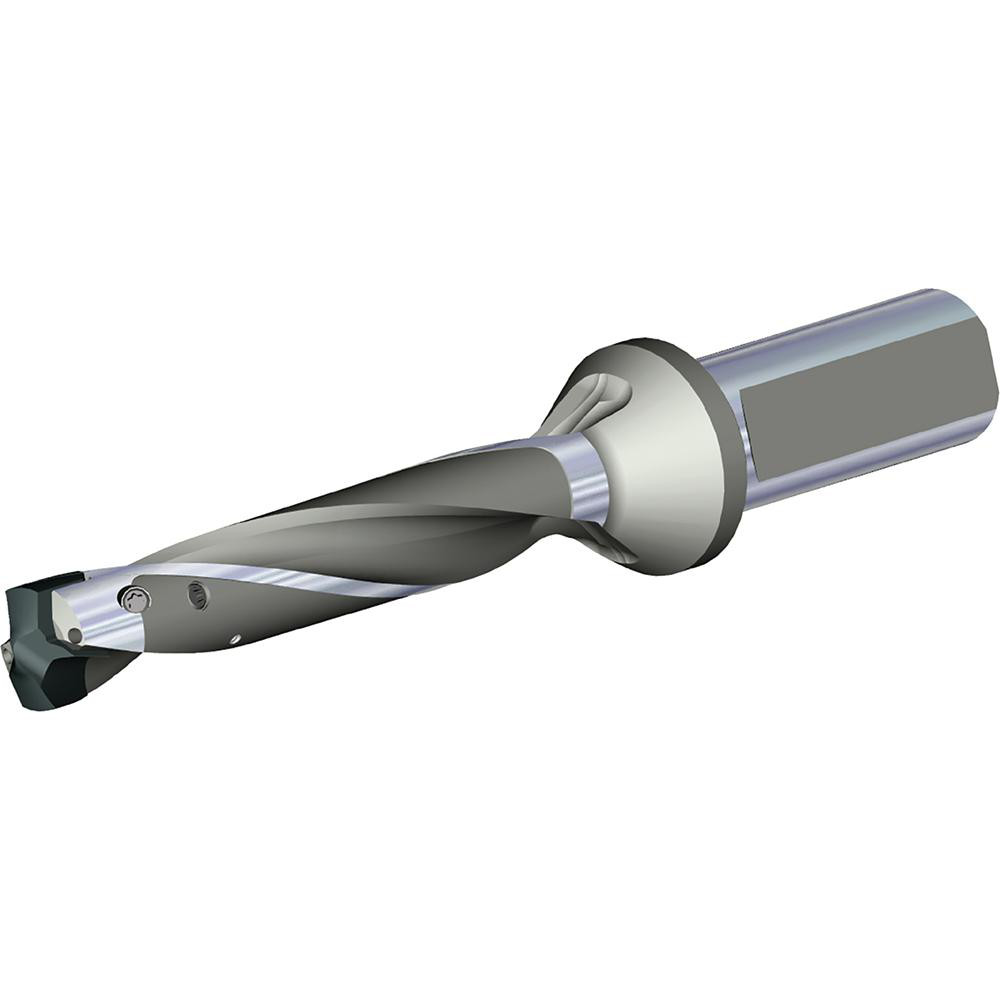

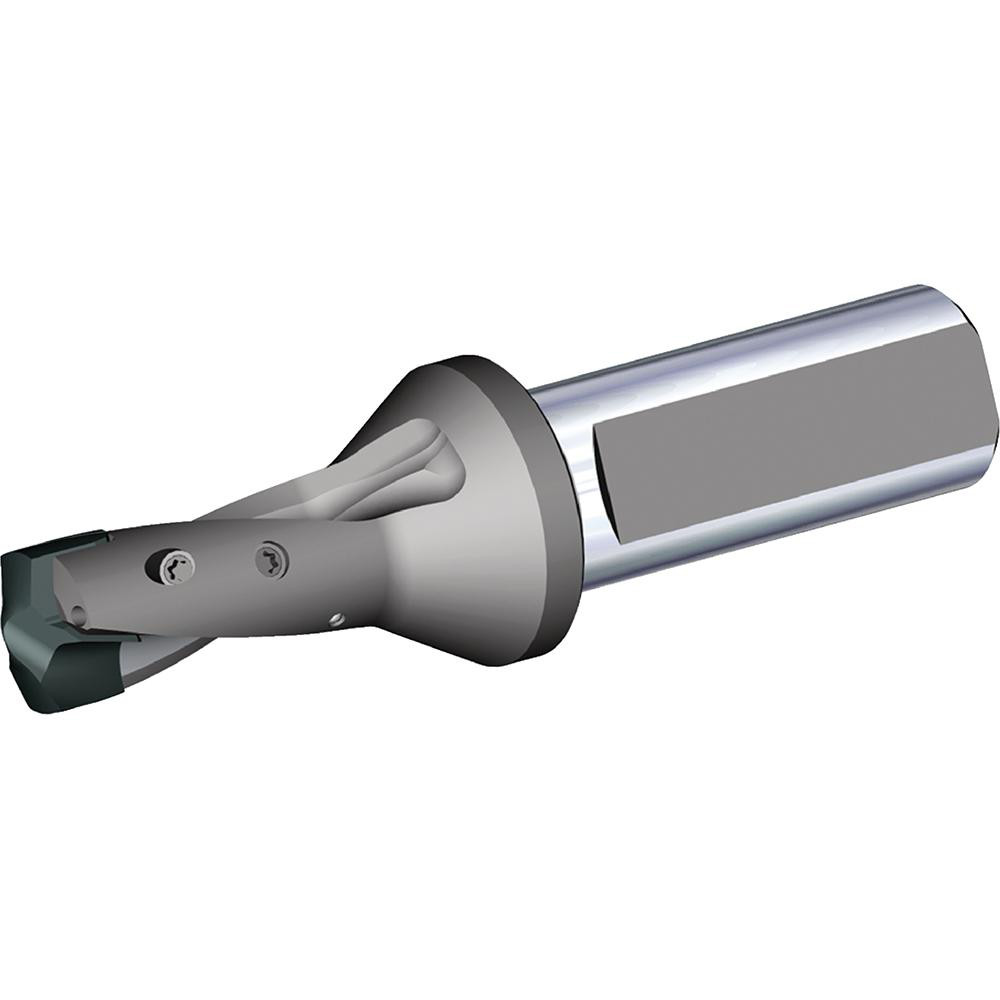

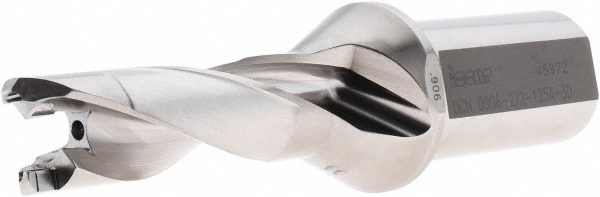

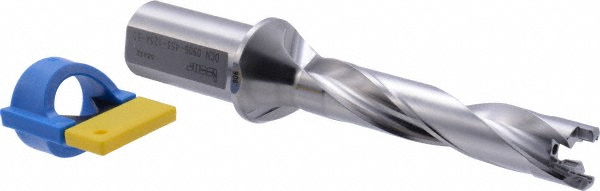

Uses TDMX Inserts, Seat Size P, 6.3386" OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 1.2205 |
|---|---|
| Maximum Drill Diameter (Decimal Inch) | 1.2598 |
| Maximum Drill Depth (Inch) | 1-57/64 |
| Maximum Drill Depth (Decimal Inch) | 1.8898 |
| Shank Type | Flatted |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Seat Size | P |
| Tool Material | Steel |
| Compatible Insert Style | TDMX |
| Overall Length (Decimal Inch) | 6.3386 |
| Series | TDMX |
| Toolholder Style | TDMX |
| Flute Length (Decimal Inch) | 1.8898 |
| Body Length (Decimal Inch) | 3.193 |
| Shank Length (Decimal Inch) | 2.3622 |
| Tool Application | Drilling |
| Coolant Hole Diameter (Decimal Inch) | 0.1969 |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | Germany |
| MSC Number | MSC# 17782293 |
