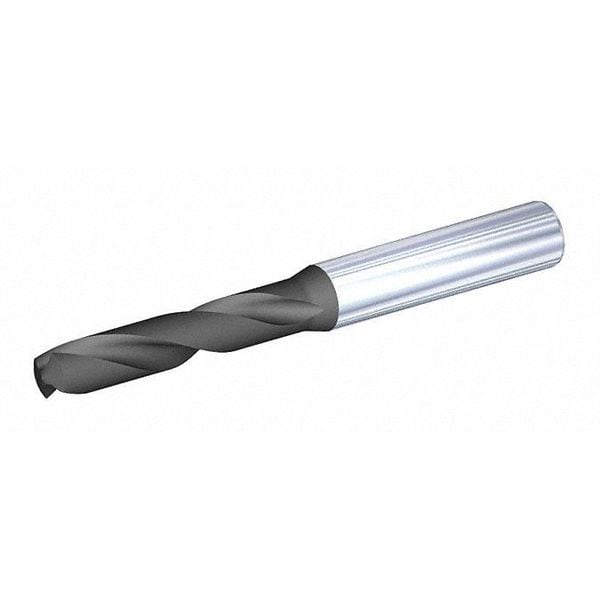

Screw Machine Drill Bit, 6.00 mm Size, 140 Degrees Point Angle, Solid Carbide, TiAlN Finish
| Item | Screw Machine Drill Bit |
|---|---|
| Drill Bit Dimension Type | Metric |
| Drill Bit Size | 6 mm |
| Decimal Equivalent | 0.2362 |
| Drill Bit Point Angle | 140 deg |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish | TiAlN |
| Shank Type | Straight |
| Flute Type | Helical |
| Shank Dia. | 6 mm |
| Overall Length | 66 mm |
| Cutting Direction | Right Hand |
| Number of Flutes | 2 |
| Flute Length | 28 mm |
| Maximum Drilling Depth | 20 mm |
| List Number | VDS401A |
| Depth:Dia. Ratio | 3 xD |
| Application | Metalworking |
| Grade | WU25PD |
| Point Type | Conical |
| Standards | DIN 6535 / DIN 6537 |
| Coolant Through | Yes |
| Sizes Included | 6.00mm |
| Depth x Dia. Ratio | 3 xD |
| Coolant Fed | Coolant Through |
| Series | VDS401 |
| Drill Bit Point Type | Conical Point |
| Primary Material Application ISO Code | P, K, N, M, S |
| Drill Length Class | Screw Machine Length |
| Drill Diameter Tolerance | H7 |
| Sheeter Drill | No |
| Material - Machining | Carbide |
| Measurement System | Metric |
| Material Grade - Machining | WU25PD |
| Primary Material Application | Cast Iron, Aluminum, Stainless Steel, Steel, Titanium, Nickel |
| Drill Point Length | 1 mm |
| Spiral Direction | Right Hand |
| Shank Length | 36 mm |
| Number of Coolant Holes | 2 |
| Finish - Machining | TiAlN |
| Shank Type - Machining | Straight |
| Package Quantity | 1 |
