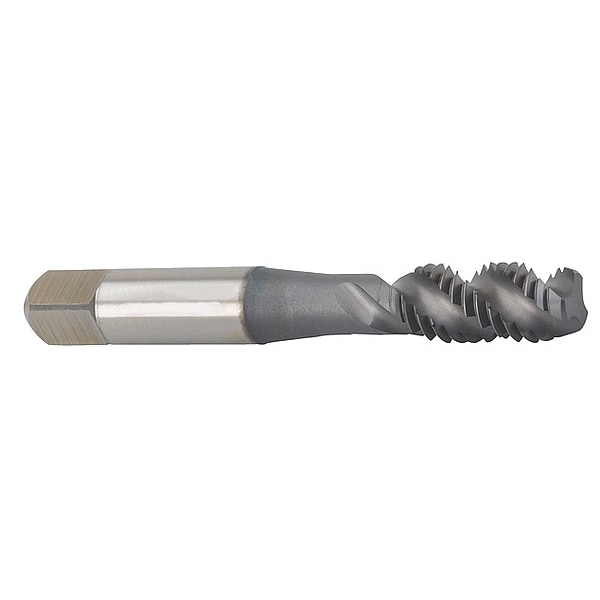

Spiral Flute Tap, #10-32, Bottoming, 2 Flutes, UNJF
| Item | Spiral Flute Tap |
|---|---|
| Overall Length | 2.37 in |
| Tap Style | Spiral Flute |
| Tap Size | #10 |
| Shank Dia. | 0.194 in |
| Tap Dimension Type | Inch |
| Tap Chamfer | Bottoming |
| Tap Material | High Speed Steel |
| Number of Flutes | 2 |
| Measurement System | Pipe |
| Thread Direction | Right Hand |
| Tap Finish | Oxide |
| Standards | DIN-ANSI |
| Thread Length | 1/2 in |
| Tap Thread Type | UNJF |
| Tap Thread Size | #10-32 |
| Series | WGT |
| Cutting Direction - Machining | Right Hand |
| Thread Limit | H5 |
| Material Grade - Machining | WN44EG |
| Shank Length | 1-7/32 in |
| Thread Size | #10-32 |
| Coolant Fed | Non-Coolant Through |
| Thread Standard | Metric Fine |
| Class of Fit | 2B |
| 75% Thread Drill Size | #21 |
| Pitch Diameter Limit | H5 |
| Package Quantity | 1 |
