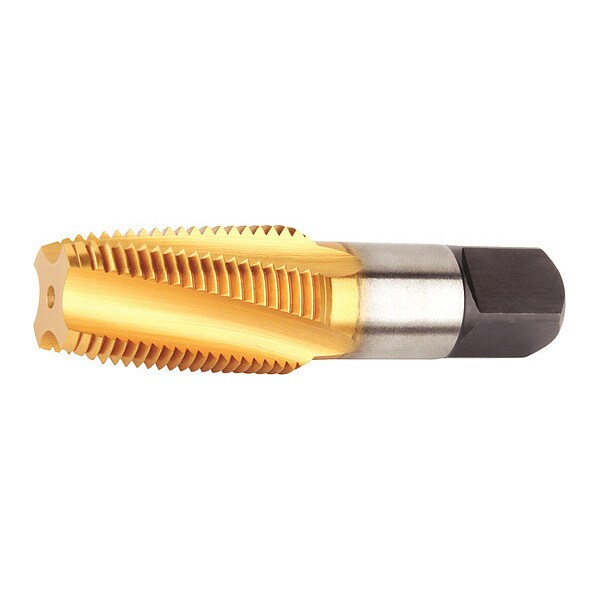

Spiral Flute Tap, 1/2"-14, Bottoming, 2 Flutes, NPT
| Item | Spiral Flute Tap |
|---|---|
| Overall Length | 3-1/8 in |
| Tap Style | Spiral Flute |
| Tap Size | 1/2" |
| Shank Dia. | 11/16 in |
| Tap Dimension Type | Inch |
| Tap Chamfer | Bottoming |
| Tap Material | High Speed Steel |
| Number of Flutes | 2 |
| Measurement System | Fractional Inch |
| Thread Direction | Right Hand |
| Thread Length | 1-3/8 in |
| Tap Finish | TiN |
| Tap Thread Size | 1/2"-14 |
| Standards | DIN-ANSI |
| Tap Thread Type | NPT |
| Series | WGT |
| Cutting Direction - Machining | Right Hand |
| Thread Limit | NPT |
| Coolant Fed | Non-Coolant Through |
| Material Grade - Machining | WN44EG |
| Threads per Inch | 14 |
| Thread Size | 1/2"-14 |
| Thread Standard | UNC |
| 75% Thread Drill Size | 45/64 in |
| Class of Fit | NPT |
| Pitch Diameter Limit | H5 |
| Package Quantity | 1 |
