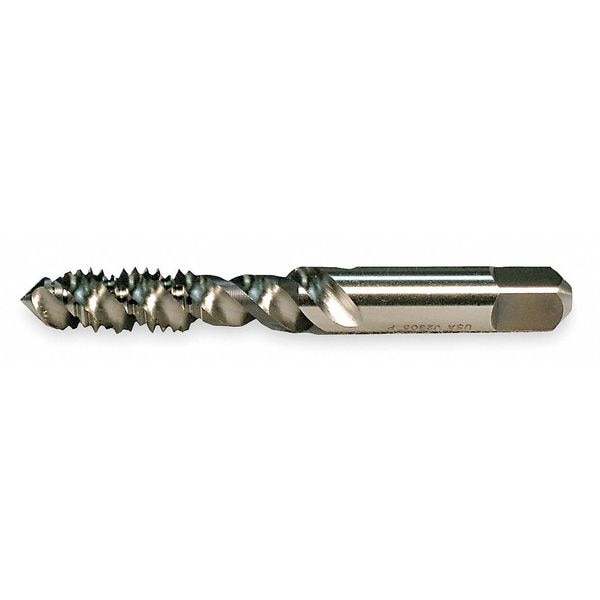

Spiral Flute Tap, M4-0.70, Bottoming, Metric Coarse, 3 Flutes, Bright
| Item | Spiral Flute Tap |
|---|---|
| Overall Length | 53 mm |
| Tap Style | Flute |
| Shank Dia. | 4.1 mm |
| Tap Chamfer | Bottoming |
| Tap Dimension Type | Metric |
| Tap Material | High Speed Steel |
| Tap Size | M4 |
| Number of Flutes | 3 |
| Thread Length | 10 mm |
| Tap Thread Size | M4-0.70 |
| Standards | ANSI |
| Thread Direction | Right Hand |
| Tap Grouping | Tap |
| Tap Finish | Bright |
| Tap Thread Type | Metric Coarse |
| Cutting Direction - Machining | Right Hand |
| Thread Limit | D4 |
| Thread Standard | Metric |
| Shank Length | 1-3/8 in |
| Extended Neck | Yes |
| 65% Thread Drill Size | 3.4 mm |
| Secondary Material Application ISO Code | K, M, N |
| Secondary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Stainless Steel |
| Measurement System | Metric |
| Thread Pitch | 0.7 mm |
| Primary Material Application | Steel |
| Square Size | 0.131 in |
| Material Grade - Machining | Bright |
| Primary Material Application ISO Code | P |
| Tap Shank Standard | ANSI |
| Thread Size | M4x0.7 |
| 55% Thread Drill Size | 3.5 mm |
| Shank Type - Machining | Straight |
| 75% Thread Drill Size | 3.30 mm |
| Spiral Direction | Right Hand |
| Coolant Fed | Non-Coolant Through |
| Series | 2364/5364 |
| Class of Fit | 6H |
| Size | M4 |
| List Number | 5364 |
| Number of Pieces | 1 |
| Pitch Diameter Limit | D6 |
| Package Quantity | 1 |
