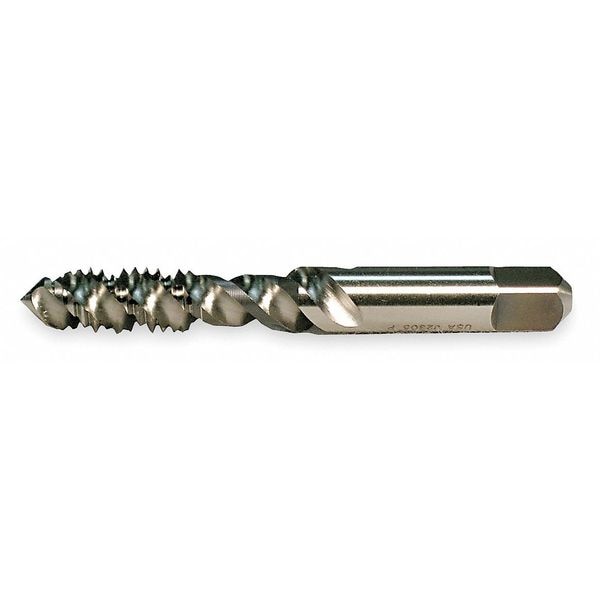

Spiral Flute Tap, Plug, 3
| Item | Spiral Flute Tap |
|---|---|
| Overall Length | 60 mm |
| Tap Style | Flute |
| Shank Dia. | 5 mm |
| Tap Chamfer | Plug |
| Tap Dimension Type | Metric |
| Tap Material | High Speed Steel |
| Tap Size | M5 |
| Number of Flutes | 3 |
| Thread Length | 13 mm |
| Tap Grouping | Tap |
| Tap Thread Size | M5-0.80 |
| Tap Thread Type | Metric Coarse |
| Thread Direction | Right Hand |
| Tap Finish | Bright |
| Standards | ANSI |
| Cutting Direction - Machining | Right Hand |
| Primary Material Application ISO Code | N |
| 65% Thread Drill Size | 4.3 mm |
| Extended Neck | Yes |
| Thread Limit | D4 |
| Shank Length | 1-1/2 in |
| Tap Shank Standard | ANSI |
| Series | 2364/5364 |
| Spiral Direction | Right Hand |
| Material Grade - Machining | Bright |
| Thread Standard | Metric |
| Shank Type - Machining | Straight |
| Thread Pitch | 0.8 mm |
| 75% Thread Drill Size | 4.20 mm |
| Measurement System | Metric |
| Square Size | 0.152 in |
| Coolant Fed | Non-Coolant Through |
| Primary Material Application | Brass, Bronze, Copper, Aluminum |
| 55% Thread Drill Size | 4.4 mm |
| Thread Size | M5x0.8 |
| Class of Fit | 6H |
| Size | M5 |
| Number of Pieces | 1 |
| Pitch Diameter Limit | D7 |
| List Number | 5364 |
| Package Quantity | 1 |
