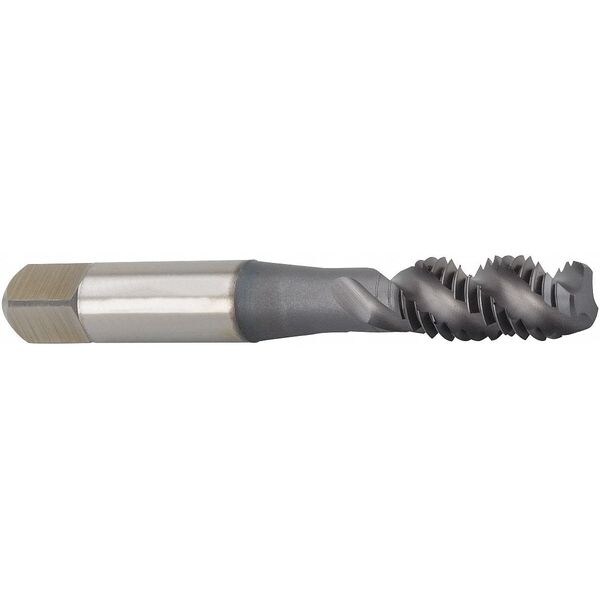

Spiral Flute Tap, Semi-Bottoming 3 Flutes
| Item | Spiral Flute Tap |
|---|---|
| Overall Length | 2-15/16 in |
| Tap Style | Flute |
| Shank Dia. | 3/8 in |
| Tap Chamfer | Semi-Bottoming |
| Tap Dimension Type | Inch |
| Tap Material | High Speed Steel |
| Tap Size | 3/8" |
| Number of Flutes | 3 |
| Thread Length | 3/4 in |
| Standards | ANSI |
| Tap Thread Size | 3/8"-24 |
| Tap Thread Type | UNF |
| Tap Finish | Oxide |
| Thread Direction | Right Hand |
| Cutting Direction - Machining | Right Hand |
| Square Size | 0.284 in |
| Measurement System | Fractional Inch |
| Thread Size | 3/8"-24 |
| Extended Neck | Yes |
| Spiral Direction | Right Hand |
| Shank Type - Machining | Straight |
| Series | VT-SFT |
| Primary Material Application ISO Code | P, M, K |
| Thread Limit | H3 |
| Shank Length | 1-9/32 in |
| Primary Material Application | Cast Iron, Stainless Steel, Steel |
| 75% Thread Drill Size | 8.50 mm |
| Helix Angle | 45 deg |
| Coolant Fed | Non-Coolant Through |
| Thread Standard | UNF |
| 55% Thread Drill Size | 11/32 in |
| Features | Form C Semi-Bottoming Chamfer, Tension/Compression Holders |
| 65% Thread Drill Size | R |
| Tap Shank Standard | ANSI |
| Material Grade - Machining | WP49EG |
| Threads per Inch | 24 |
| Class of Fit | 3 B |
| Number of Pieces | 1 |
| List Number | VT-SFT |
| Pitch Diameter Limit | H3 |
| Package Quantity | 1 |
