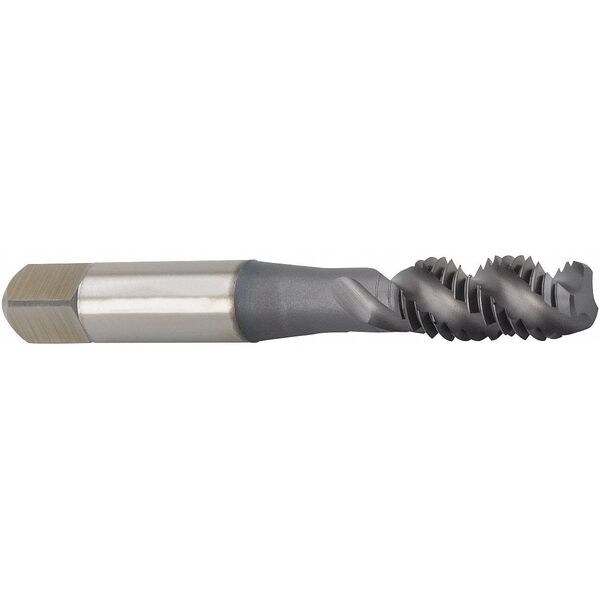

Spiral Flute Tap, Semi-Bottoming 3 Flutes
| Item | Spiral Flute Tap |
|---|---|
| Overall Length | 4-1/4 in |
| Number of Flutes | 3 |
| Tap Material | High Speed Steel |
| Shank Dia. | 0.59 in |
| Tap Style | Flute |
| Tap Chamfer | Semi-Bottoming |
| Tap Size | 3/4" |
| Tap Dimension Type | Inch |
| Thread Length | 1.22 in |
| Tap Thread Size | 3/4"-10 |
| Tap Thread Type | UNC |
| Thread Direction | Right Hand |
| Standards | ANSI |
| Tap Finish | TiCN |
| Cutting Direction - Machining | Right Hand |
| Primary Material Application ISO Code | P, M, K, N |
| Series | VT-SFT |
| Thread Limit | H5 |
| 55% Thread Drill Size | 17.2 mm |
| Thread Size | 3/4"-10 |
| 65% Thread Drill Size | 16.9 mm |
| Square Size | 0.439 in |
| 75% Thread Drill Size | 16.50 mm |
| Coolant Fed | Non-Coolant Through |
| Spiral Direction | Right Hand |
| Tap Shank Standard | ANSI |
| Threads per Inch | 10 |
| Shank Type - Machining | Straight |
| Thread Standard | UNC |
| Helix Angle | 45 deg |
| Measurement System | Fractional Inch |
| Features | Form C Semi-Bottoming Chamfer, Tension/Compression Holders |
| Shank Length | 2-5/32 in |
| Extended Neck | Yes |
| Material Grade - Machining | WP42EG |
| Primary Material Application | Brass, Bronze, Copper, Cast Iron, Aluminum, Stainless Steel, Steel |
| Class of Fit | 3 B |
| Pitch Diameter Limit | H5 |
| List Number | VT-SFT |
| Number of Pieces | 1 |
| Package Quantity | 1 |
