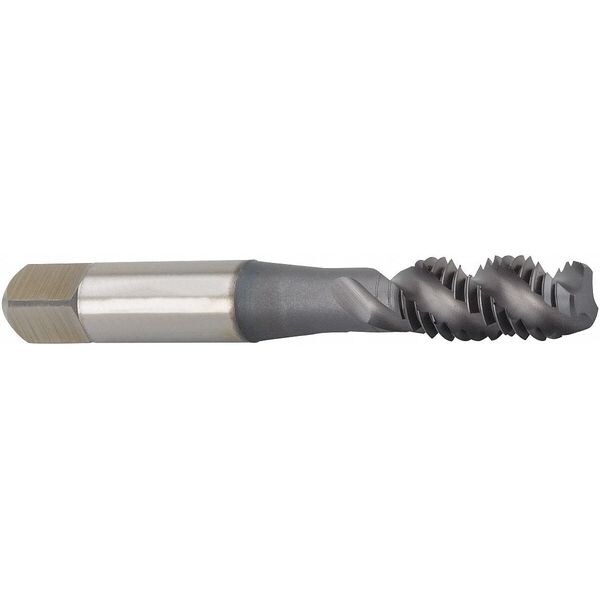

Spiral Flute Tap, Semi-Bottoming 3 Flutes
| Item | Spiral Flute Tap |
|---|---|
| Overall Length | 85.9 mm |
| Tap Style | Flute |
| Shank Dia. | 9.32 mm |
| Tap Chamfer | Semi-Bottoming |
| Tap Dimension Type | Metric |
| Tap Material | High Speed Steel |
| Tap Size | M12 |
| Number of Flutes | 3 |
| Thread Length | 23.9 mm |
| Tap Thread Type | Metric |
| Thread Direction | Right Hand |
| Tap Finish | Oxide |
| Standards | ANSI |
| Tap Thread Size | M12-1.75 |
| Cutting Direction - Machining | Right Hand |
| Features | Form C Semi-Bottoming Chamfer, Tension/Compression Holders |
| Primary Material Application ISO Code | P, M, K |
| 65% Thread Drill Size | 10.5 mm |
| Series | VT-SFT |
| 75% Thread Drill Size | 10.30 mm |
| Primary Material Application | Cast Iron, Stainless Steel, Steel |
| Square Size | 6.91 mm |
| Spiral Direction | Right Hand |
| Shank Length | 41.7 mm |
| Thread Size | M12x1.75 |
| Extended Neck | Yes |
| 55% Thread Drill Size | 27/64 in |
| Thread Standard | Metric |
| Shank Type - Machining | Straight |
| Material Grade - Machining | WP49EG |
| Thread Limit | D6 |
| Measurement System | Metric |
| Helix Angle | 45 deg |
| Tap Shank Standard | ANSI |
| Coolant Fed | Non-Coolant Through |
| Thread Pitch | 1.75 mm |
| Class of Fit | 6H |
| Pitch Diameter Limit | D6 |
| List Number | VT-SFT |
| Number of Pieces | 1 |
| Package Quantity | 1 |
