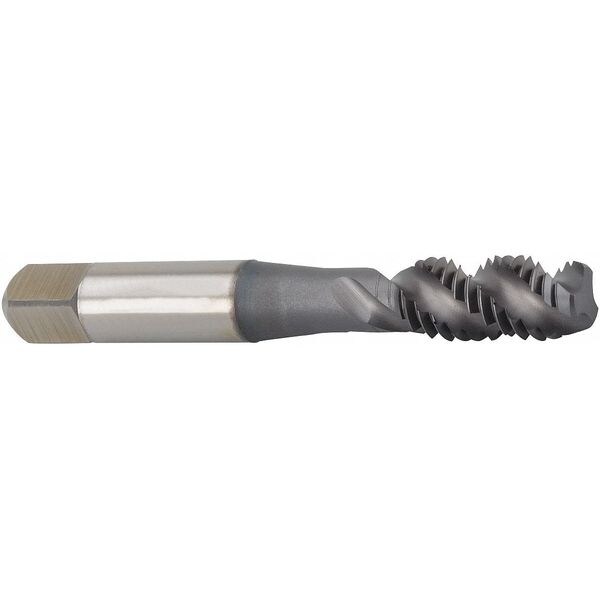

Spiral Flute Tap, Semi-Bottoming, 3
| Item | Spiral Flute Tap |
|---|---|
| Overall Length | 2-1/8 in |
| Tap Style | Flute |
| Shank Dia. | 3/16 in |
| Tap Chamfer | Semi-Bottoming |
| Tap Dimension Type | Inch |
| Tap Material | High Speed Steel |
| Tap Size | #8 |
| Number of Flutes | 3 |
| Thread Length | 3/8 in |
| Tap Thread Type | UNC |
| Standards | ANSI |
| Thread Direction | Right Hand |
| Tap Thread Size | #8-32 |
| Tap Finish | Oxide |
| Cutting Direction - Machining | Right Hand |
| Extended Neck | Yes |
| Thread Limit | H5 |
| 55% Thread Drill Size | 3.6 mm |
| 65% Thread Drill Size | 3.5 mm |
| Threads per Inch | 32 |
| 75% Thread Drill Size | 3.40 mm |
| Series | VT-SFT |
| Helix Angle | 45 deg |
| Thread Size | #8-32 |
| Primary Material Application ISO Code | P, M, K |
| Shank Length | 1-3/16 in |
| Spiral Direction | Right Hand |
| Material Grade - Machining | WP49EG |
| Shank Type - Machining | Straight |
| Tap Shank Standard | ANSI |
| Square Size | 0.129 in |
| Primary Material Application | Cast Iron, Stainless Steel, Steel |
| Coolant Fed | Non-Coolant Through |
| Thread Standard | UNC |
| Measurement System | Pipe |
| Features | Form C Semi-Bottoming Chamfer, Tension/Compression Holders |
| Class of Fit | 2 B |
| Pitch Diameter Limit | H5 |
| Number of Pieces | 1 |
| List Number | VT-SFT |
| Package Quantity | 1 |
